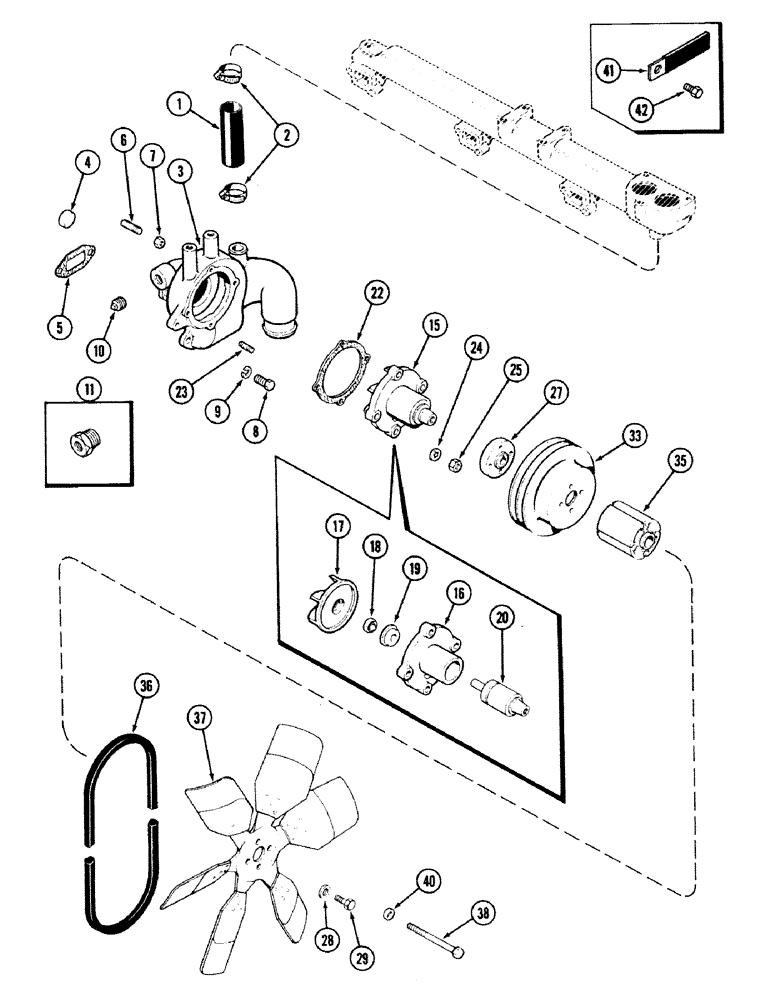

Запчасти Case IH 2594 (2-08) - WATER PUMP, 504BDT DIESEL ENGINE (02) - ENGINE

1

A58737

HOSE,30.99mm ID x 134.62mm L, SAE 20R4

HOSE - water pump, 1-1/4 ID x 5-5/16 inch

1шт.

2

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - adj, 1-1/2 - 1-23/32 inch dia.

2шт.

3

A148968

HOUSING

BODY ASSEMBLY - water pump, Includes: Ref. 4

1шт.

4

A58568

PLUG,Cup, 1 3/8", Stainless

PLUG - cup type, 1-3/8" diameter (Order 41-1622)

1шт.

5

1342759C1

GASKET

GASKET - body to block (Replaces A58649)

1шт.

6

G102128

BOLT

STUD - 3/8" NC x 1-1/2"

2шт.

7

425-106

NUT,3/8"-16, Cl 5

NUT, 3/8"-16, G5

2шт.

8

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

BOLT - hex, 3/8 NC x 1-1/4 inch

2шт.

9

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

10

221-844

PLUG,Hex Soc, 1/2"-14

PLUG - square, 1/2 inch PT (Tractor with cab heater)

1шт.

11

221-88

REDUCER,Hex, 1/2" x 1/4" NPT

REDUCER - pipe, 1/2 male x 1/4 inch female (Tractor without cab heater)

1шт.

15

1342818C1

PUMP, WATER

PUMP KIT - water (Remanufactured) (North America only) (Includes Ref. 22)

1шт.

15

A157145

PUMP, WATER

PUMP ASSEMBLY - water (New), Includes: Refs. 16 - 20

1шт.

15

1342818C1R

REMAN-WATER PUMP

Remanufactured Water Pump

1шт.

15

A48335

CORE-WATER PUMP

Return Part Number, Water Pump

1шт.

16

NSS

NOT SOLD SEPARAT

HOUSING - pump

1шт.

17

A152126

IMPELLER

IMPELLER - water

1шт.

18

A166280

SEAT

SEAT - impeller (Replaces A34000) (Also order A166281)

1шт.

19

A166281

SEAL

SEAL - pump shaft (Replaces A142499) (Also order A166280)

1шт.

20

A156995

BEARING

SHAFT ASSEMBLY - pump

1шт.

22

134278C1

CLAMP

GASKET - pump to body (Replaces A58646)

1шт.

23

A166044

STUD

STUD - pump mounting

4шт.

24

93-21039

LOCK WASHER,Int Tooth, 3/8"

WASHER - internal tooth lock, 3/8 inch

4шт.

25

425-106

NUT,3/8"-16, Cl 5

NUT, 3/8"-16, G5

4шт.

27

A146221

HUB

HUB - fan and, Serial Range: pulley-pump

1шт.

28

A155047

RING,13.08mm ID x 26.92mm OD x 8.69mm Thk

WASHER - fan bolt

1шт.

29

414-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

BOLT - hex, 1/2 NF x 1-1/4 inch

1шт.

33

A152448

PULLEY

PULLEY - fan drive

1шт.

35

A161679

BUSHING

SPACER - fan, 3-7/8 inch

1шт.

36

A145325

SET OF BELTS,60.00" L

Fan, Matched (With air conditioning)

1шт.

36

A57130

BELT,60.00" L

Fan, Single without Air Conditioning

1шт.

37

A164663

FAN

FAN - cooling, 22 inch

1шт.

38

413-680

BOLT,Hex, 3/8" - 16 x 5", Gr 5

BOLT, Hex, 3/8"-16 x 5", G5

4шт.

40

A50820

WASHER

WASHER - hardened, 3/8 x 3/4 inch

4шт.

41

A149624

CLIP

CLIP - retaining

1шт.

42

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT, Hex, 3/8"-16 x 1/2", G5, Full Thd

1шт.
