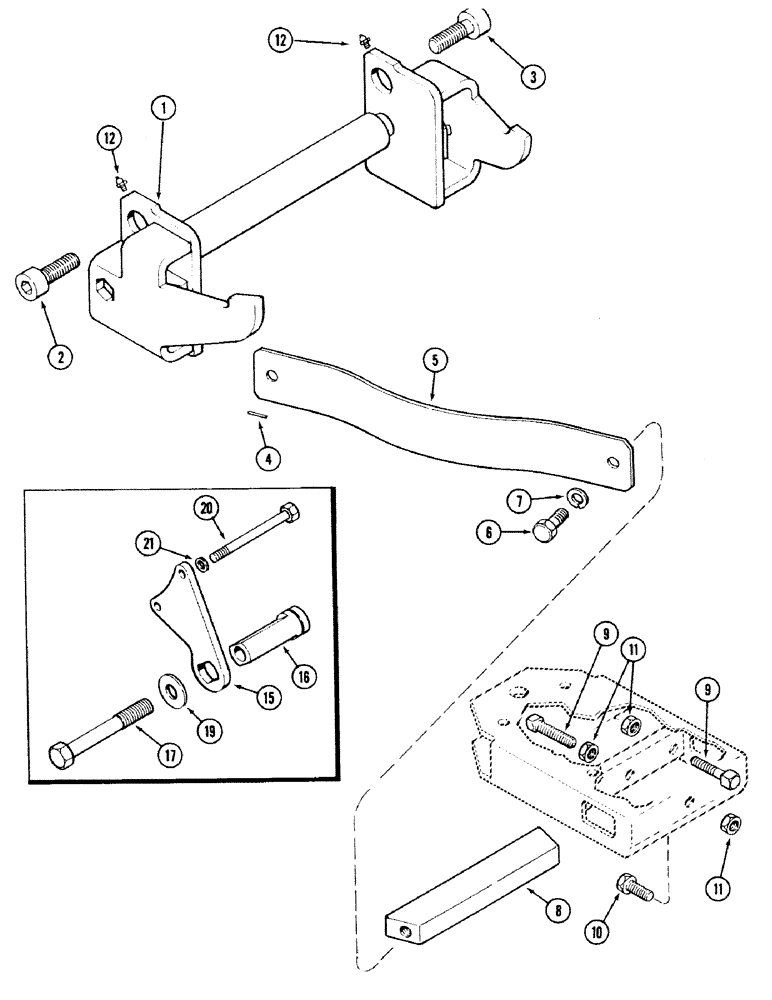

Запчасти Case IH 2594 (9-002) - CROSSBAR AND WISHBONE SPRINGS (09) - CHASSIS/ATTACHMENTS

1

A164375

CROSSBAR

- hitch

1шт.

2

A143604

BOLT,1-1/8" - 7 x 3-1/4", Gr 8

- hex socket head, 1-1/8 NC x 3-1/4 inch left hand thread (left stamped on top of head)

1шт.

3

A143603

BOLT,1-1/8" - 7 x 3-1/4", Gr 8

- hex socket head, 1-1/8 NC x 3-1/4 inch right hand thread

1шт.

4

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

2шт.

5

A63488

SPRING

- wishbone

2шт.

6

A63490

BOLT

- mounting, wishbone spring

2шт.

7

192-171

LOCK WASHER,1"

WASHER, LOCK, 1"

2шт.

8

A63489

BAR

- wishbone spring equalizer

1шт.

9

85-47548

SET SCREW,Sq Hd, 3/4"-10 x 3"

SCREW - square head oval point, 3/4 NC x 3 inch

3шт.

10

113-796

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5, Full Thd

- hex, 3/4 NC x 2-1/2 inch

1шт.

11

425-1412

JAM NUT,Jam, 3/4"-10, G5

- hex, jam, 3-4 NC

4шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

A67539

PIVOT ATTACHMENT - crossbar (Machinery item), Includes: Ref. 15 - 21

1шт.

15

A163810

BRACKET

SUPPORT - locking, shaft

2шт.

16

A163808

BUSHING

- pivot, crossbar

2шт.

17

A165399

BOLT

- hex, 1-1/8 UNRC x 8 inch, right hand thread

1шт.

17

A165400

BOLT

- hex, 1-1/8 UNRC x 8 inch, left hand thread

1шт.

19

A35047

WASHER

- special

2шт.

20

326-10112

BOLT,Hex, 5/8" - 11 x 7", Gr 8

4шт.

21

A64303

WASHER

- flat, hardened steel

4шт.
