Запчасти Case IH 2594 (8-122) - HYDRAULICS, SEAT AIR/OIL SUSPENSION, PRIOR TO TRANSMISSION SERIAL NO. 16283224 (08) - HYDRAULICS

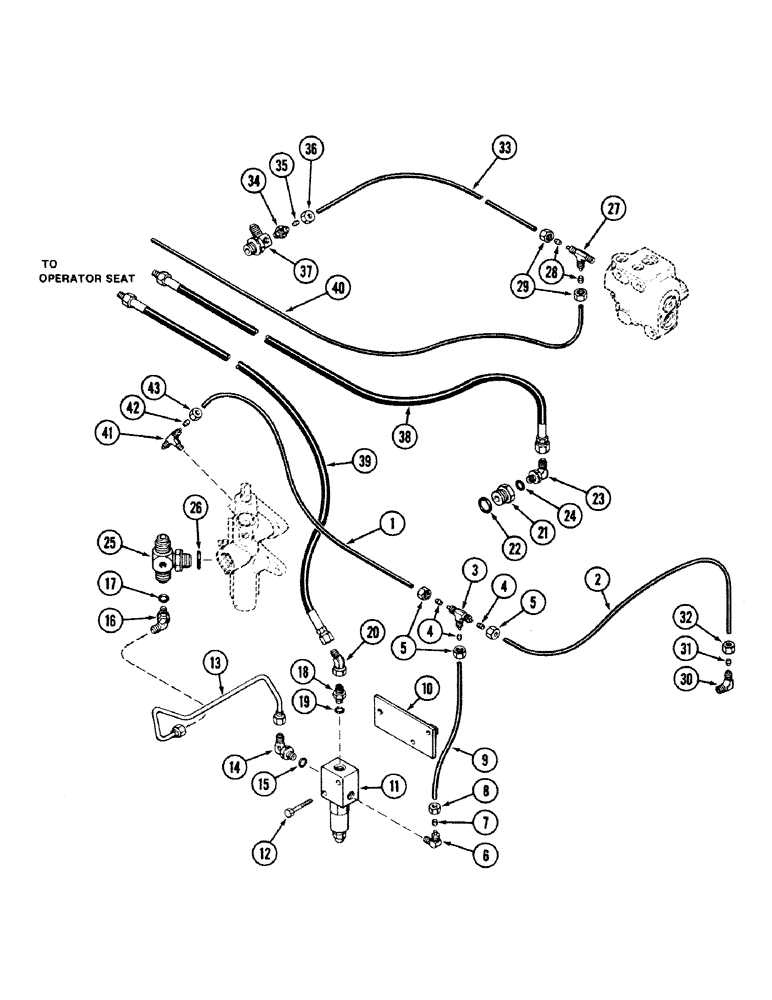

Схема запчастей Case IH 2594 - (8-122) - HYDRAULICS, SEAT AIR/OIL SUSPENSION, PRIOR TO TRANSMISSION SERIAL NO. 16283224 (08) - HYDRAULICS
37
12
2
36
18
27
22
32
31
38
39
3
4
24
25
26
9
16
4
34
43
42
35
7
40
14
41
5
8
13
23
29
6
11
5
15
17
20
21
28
10
30
33
1
19

Артикул

Название

Примечание

Количество

1

A176355

TUBE - nylon, 3/8 x 5-3/8 inch (Order A167912)

1шт.

2

A63997

TUBE

- nylon, 3/8 x 25 inch (Order A167912)

1шт.

3

222-2751

HYD CONNECTOR

TEE - compression, 3/8 inch O.D., Includes: Ref. 4 and 5

1шт.

4

222-2611

SLEEVE

- flanged, 3/8 inch OD tube

3шт.

5

222-2601

NUT

NUT - hex, 3/8 tube O.D. x 17/21-24 inch

3шт.

6

222-2641

ELBOW,90 Degree, 17/32"-24 x 1/4" NPT, Comp

- 90 degree, compression, 3/8 tube O.D. x 1/4 PT, Includes: Ref. 7 and 8

1шт.

7

222-2611

SLEEVE

- flanged, 3/8 inch O.D. tube

1шт.

8

222-2601

NUT

NUT - hex, 3/8 tube O.D. x 17/21-24 inch

1шт.

9

A145792

TUBE

- nylon, 3/8 O.D. x 12 inch (Order A167912)

1шт.

10

A176814

PLATE

- valve mounting

1шт.

11

REF

INSTRUCTION

VALVE ASSEMBLY - pressure regulator (See Figure: 8-126)

1шт.

12

113-14

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Hex, 1/4"- 20 x 2", G5

2шт.

13

A176772

TUBE ASSY.

TUBE - valve supply

1шт.

14

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

- 90 degree, 9/16-18 flare x 7/16-20 inch adj o-ring, Incl. Ref. 15

1шт.

15

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

16

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree, 9/16-18 inch flare x adj o-ring boss, Includes: Ref. 17

1шт.

18

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

ADAPTER - straight, 9/16-18 flare x 7/16-20 inch o-ring boss, Includes: Ref. 19

1шт.

19

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

20

218-5172

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Female JIC

- 45 deg, 9/16-18 inch flare x swivel straight thread

1шт.

21

A176161

ADAPTER

- straight, special, Includes: Ref. 22

1шт.

22

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

23

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj o-ring boss, Includes: Ref. 24

1шт.

25

A176193

NIPPLE, LUBE

TEE - special, Includes: Ref. 26

1шт.

26

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

27

222-2761

FITTING

TEE - compression, 3/8 tube O.D. x 1/4 inch PT, Includes: Ref. 28 and 29

1шт.

28

222-2611

SLEEVE

- flanged, 3/8 inch O.D. tube

2шт.

29

222-2601

NUT

NUT - hex, 3/8 tube O.D. x 17/21-24 inch

2шт.

30

222-2646

ELBOW,90 Degree, 17/32"-24 x 1/8" NPT, Comp

- 90 degree, compression, 3/8 tube O.D. x 1/8 inch PT, Includes: Ref. 31 and 32

1шт.

31

222-2611

SLEEVE

- flanged, 3/8 inch O.D. tube

1шт.

32

222-2601

NUT

NUT - hex, 3/8 tube O.D. x 17/21-24 inch

1шт.

33

A75811

TUBE

- nylon, 3/8 inch O.D. x 34 inch (Order A167912)

1шт.

34

222-2626

FITTING,17/32"-24 x 1/4" NPT, Comp

ADAPTER - compression, 3/8 tube O.D. x 1/4 inch PT, Includes: Ref. 35 and 36

1шт.

35

222-2611

SLEEVE

- flanged, 3/8 inch O.D. tube

1шт.

36

222-2601

NUT

NUT - hex, 3/8 tube O.D. x 17/21-24 inch

1шт.

37

A161145

FITTING

ELBOW - dipstick (In transmission case)

1шт.

38

A176632

HOSE ASSY.

HOSE - return, seat

1шт.

39

A176631

HOSE ASSY.,6.35 mm ID x 63.00 mm, SAE100R1

6.35 mm ID x 63.00 mm, SAE 100R1 - Pressure, Seat

1шт.

40

A49609

HOSE,0.38" ID x 39.00"

- Drain (Order A167912)

1шт.

41

222-2681

TEE,17/32"-24 x 1/8" NPT Br

- compression, 3/8 tube O.D. x 1/8 inch PT, Includes: Ref. 42 and 43

1шт.

42

222-2611

SLEEVE

- flanged, 3/8 inch O.D. tube

2шт.

43

222-2601

NUT

NUT - hex, 3/8 tube O.D. x 17/21-24 inch

2шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

24

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
