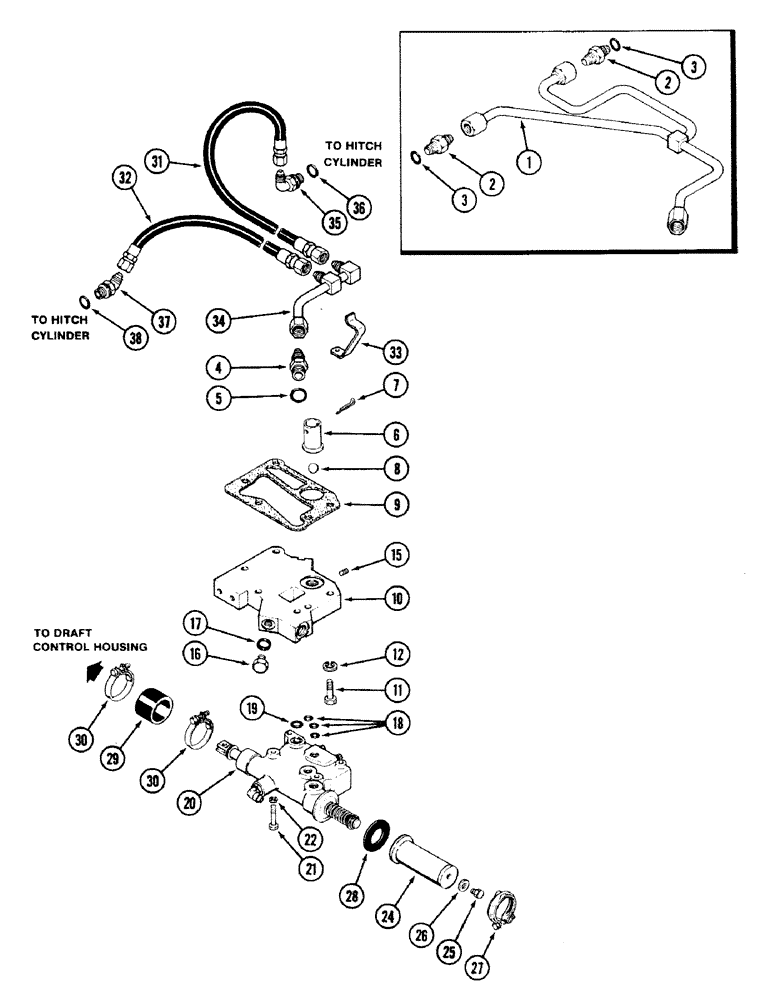

Запчасти Case IH 2594 (8-118) - HITCH SYSTEM, DEPTH AND POSITION VALVE, MANIFOLD AND TUBES (08) - HYDRAULICS

1

NSS

NOT SOLD SEPARAT

TUBE - lift cylinder (Order Ref. 31 through 36)

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x o-ring boss (If equipped), Incl. Ref 3

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x o-ring boss, Includes: Ref. 5

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

6

A63458

TUBE

- return oil

1шт.

7

32-828

COTTER PIN,1/8" x 1 3/4"

PIN split (Cotter), 1/8" x 1 3/4"

1шт.

8

211-221

BALL,7/8" Dia

grade 200, chrome alloy steel 7/8" Dia

1шт.

9

A185804

MANIFOLD GASKET

- draft control valve manifold (Replaces A64014)

1шт.

10

A161770

BODY

MANIFOLD - depth control valve

1шт.

11

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

5шт.

12

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

15

221-844

PLUG,Hex Soc, 1/2"-14

- square socket, 1/2 inch PT

1шт.

16

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 17 Hex Soc, 3/4"-16 ORB

1шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

18

238-5112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

- 1/2 ID x 3/32 inch

3шт.

19

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

0.818 OD x 0.612 ID (13/16 OD x 5/8 ID)

1шт.

20

REF

INSTRUCTION

VALVE ASSEMBLY - depth and position (See Figure 8-121)

1шт.

21

326-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 8

4шт.

22

92-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

24

A167785

COVER

- valve spool

1шт.

25

113-6

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

1шт.

26

195-1013

SEALING WASHER,0.26" ID x 0.56" OD x 0.04" Thk

- flat, 1/4 x 9/16 x 3/64 inch

1шт.

27

A63475

CLAMP,50.29mm ID

- cover

1шт.

28

A65542

GASKET

- cover

1шт.

29

A63472

HOSE

- control valve to linkage housing

1шт.

30

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

CLAMP - adj, 1-7/8 - 2-3/32 inch dia.

2шт.

31

A181370

HOSE,0.38" ID x 16.00", SAE J516

- Lift cylinder, Left (Replaces A176785) 0.38" ID x 16.00", SAE J516

1шт.

32

A181369

HOSE,0.38" ID x 18.90", SAE J516

- Lift cylinder, Right (Replaces A176786) 0.38" ID x 18.90", SAE J516

1шт.

33

A176954

BRACKET

- tube support

1шт.

34

A180293

PIPE

TUBE - hitch supply

1шт.

35

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj o-ring, Incl. Ref. 36

1шт.

37

218-5148

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 45 degree, 9/16-18 flare x 3/4-16 inch adj o-ring, Includes: Ref. 38

1шт.

36

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

38

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
