(8-114) - HITCH SYSTEM, DRAFT CONTROL SENSING LINKAGE

Запчасти Case IH 2594 (8-114) - HITCH SYSTEM, DRAFT CONTROL SENSING LINKAGE (08) - HYDRAULICS

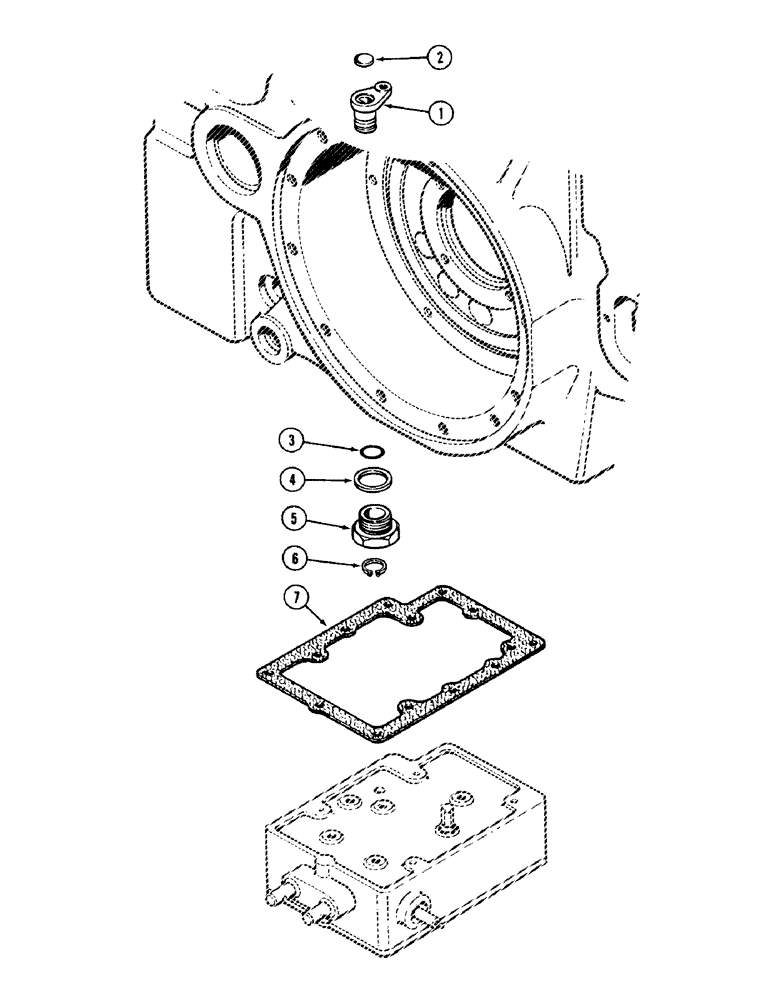

Схема запчастей Case IH 2594 - (8-114) - HITCH SYSTEM, DRAFT CONTROL SENSING LINKAGE (08) - HYDRAULICS
1
4
2
7
5
3
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A64430

LEVER

- draft control follow up

1шт.

2

172531

PLUG,Exp, 3/4"

- expansion, 3/4 inch

1шт.

3

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

1шт.

4

A63447

GASKET

- draft control bushing

1шт.

5

A64429

BUSHING

- follow-up lever

1шт.

6

100-11100

SNAP RING,#100, Ext

Ring, Snap, #100, Ext

1шт.

7

1342788C1

GASKET

- draft control linkage housing (Replaces A137621)

1шт.
