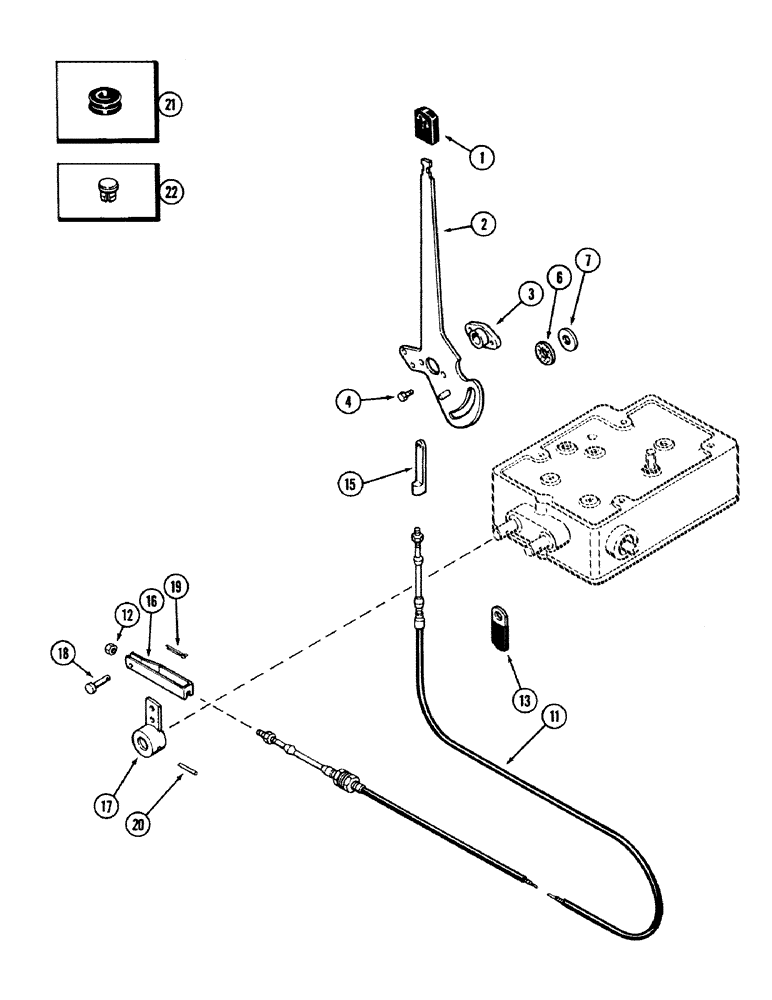

Запчасти Case IH 2594 (8-110) - HITCH SYSTEM, DRAFT SENSING CONTROLS (08) - HYDRAULICS

1

A163885

KNOB

- hand lever (Black)

1шт.

2

A163881

LEVER

- sensing

1шт.

3

A162901

BUSHING

BEARING - sensing lever

1шт.

4

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

2шт.

6

A61069

DISC

- friction

1шт.

7

495-81149

WASHER,7/16" x 1 1/4" x .083"

WSHER - flat, 7/16 x 1-1/4 x 3/32 inch

1шт.

11

A67299

CABLE

- sensing control (Order A167658)

1шт.

12

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, no. 10 NF

1шт.

13

A37179

CLIP

- cable

1шт.

15

A162855

YOKE

-, Serial Range: cable-lever

1шт.

16

A160819

YOKE

- cable, lower lever

1шт.

17

A156185

LEVER

- lower sensing

1шт.

18

427-3058

CLEVIS PIN,3/16" x .580"

PIN, CLEVIS, , Hardened 3/16" x .580"

1шт.

19

432-412

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), 1/16" x 3/4"

1шт.

20

138-99

LOCK PIN,3/16" x 1 3/8", Slotted

PIN, 3/16" x 1 3/8", Slotted

1шт.

21

A145925

GROMMET

- cable

1шт.

22

A162961

PLUG

- 3/4 inch diameter head

1шт.
