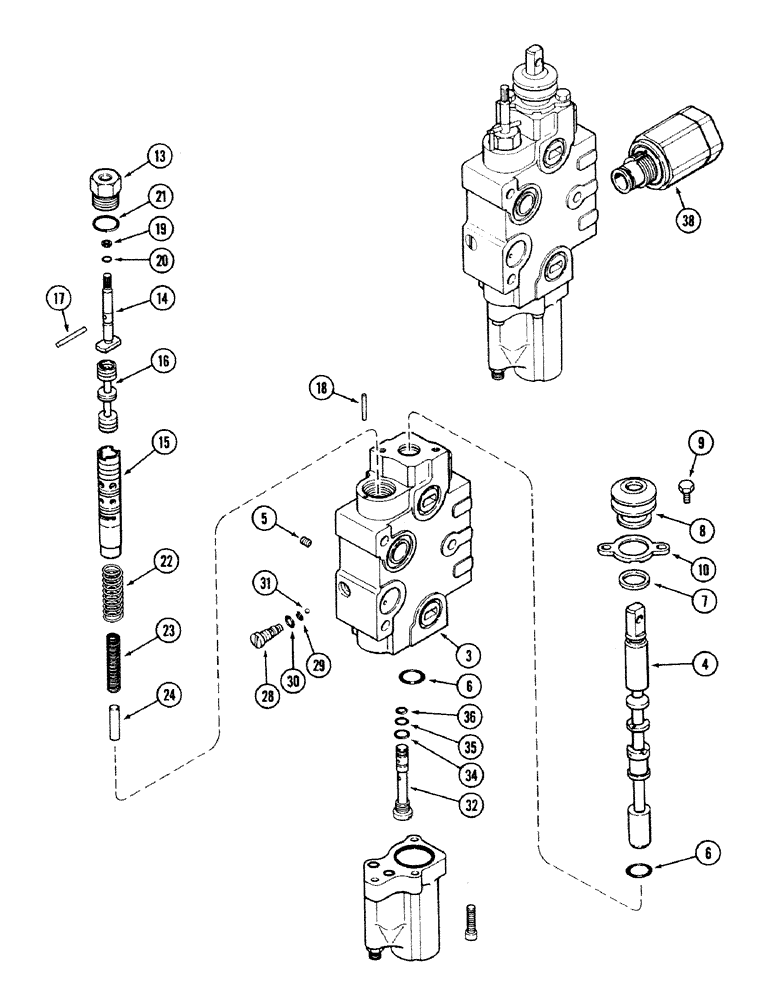

Запчасти Case IH 2594 (8-092) - A52404 REMOTE VALVE BODY ASSEMBLY, WITH LOAD CHECK (08) - HYDRAULICS

A52404

VALVE

ASSEMBLY - remote hydraulic control, priority float (Order 1986840C1) (See Figure: 8-96), Includes Ref. 3 through 38 and 42 - 77 on Fig. 8-94

1шт.

A185006

VALVE BODY

VALVE ASSEMBLY - remote hydraulic control, float (Order 1986841C1) (See Figure: 8-96), Includes Ref. 3 through 38 and 42 - 77 on Fig. 8-94

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - priority float valve (Order 1986840C1)

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - priority float valve (Order 1986841C1)

1шт.

4

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

5

A47105

PLUG

- expansion

1шт.

6

238-5116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

2шт.

7

A47205

SEAL,22.61mm ID x 32.13mm OD x 2.67mm Thk

FILTER - spool

1шт.

8

A47188

COVER

BOOT - dust

1шт.

9

86019274

SCREW,Hex, 1/4"-20 x 1/2", G5

- hex, 1/4 NC x 1/2 inch

2шт.

10

A47196

RETAINER

- dust guard

1шт.

13

A48925

PLUG

- flow control

1шт.

14

A48929

SHAFT

- adjusting

1шт.

15

A52412

TUBE

- flow control

1шт.

16

A52411

PISTON

SPOOL - flow control

1шт.

17

138-63

LOCK PIN,1/8" x 1 1/4", Slotted

PIN, 1/8" x 1 1/4", Slotted

1шт.

18

138-305

LOCK PIN,1/8" x 1", Slotted, Stainless

Pin, 1/8" x 1, Slotted, Stainless

1шт.

19

D71056

RING,Split, 4.47mm ID x 7.21mm OD x 1.32mm Thk

- backup

1шт.

20

238-5008

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

-008, 70 Duro, .176" ID x .070" Thk

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

22

A48959

SPRING

- outer, flow control

1шт.

23

A48960

SPRING

- inner, flow control

1шт.

24

A52410

PIN

- spring guide

1шт.

A47210

PLUG

ASSEMBLY - secondary shuttle (Order components), Includes: Ref. 28 - 30

1шт.

28

A47204

PLUG

BODY - shuttle

1шт.

29

238-6008

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

1шт.

30

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

31

211-204

BALL

- 3/16 inch, grade 50, chrome alloy steel

1шт.

32

A47209

SPOOL

SHUTTLE ASSEMBLY - primary, Includes: Ref. 34 - 36 and service kit

1шт.

N6632

SEAL KIT

- service, shuttle seals (Order components), Includes: Ref. 34 - 36

1шт.

34

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

35

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1шт.

36

238-6009

O-RING,0.07" Thk x 0.208" ID, -9, Cl 6, 90 Duro

1шт.

A52421

PLUG

- expansion (Not shown)

1шт.

38

REF

INSTRUCTION

LOAD CHECK ASSEMBLY - remote valve (See Figure: 8-100)

1шт.
