Запчасти Case IH 2594 (8-088) - A169456 REMOTE VALVE BODY ASSEMBLY, WITH LOAD CHECK, (CONT) (08) - HYDRAULICS

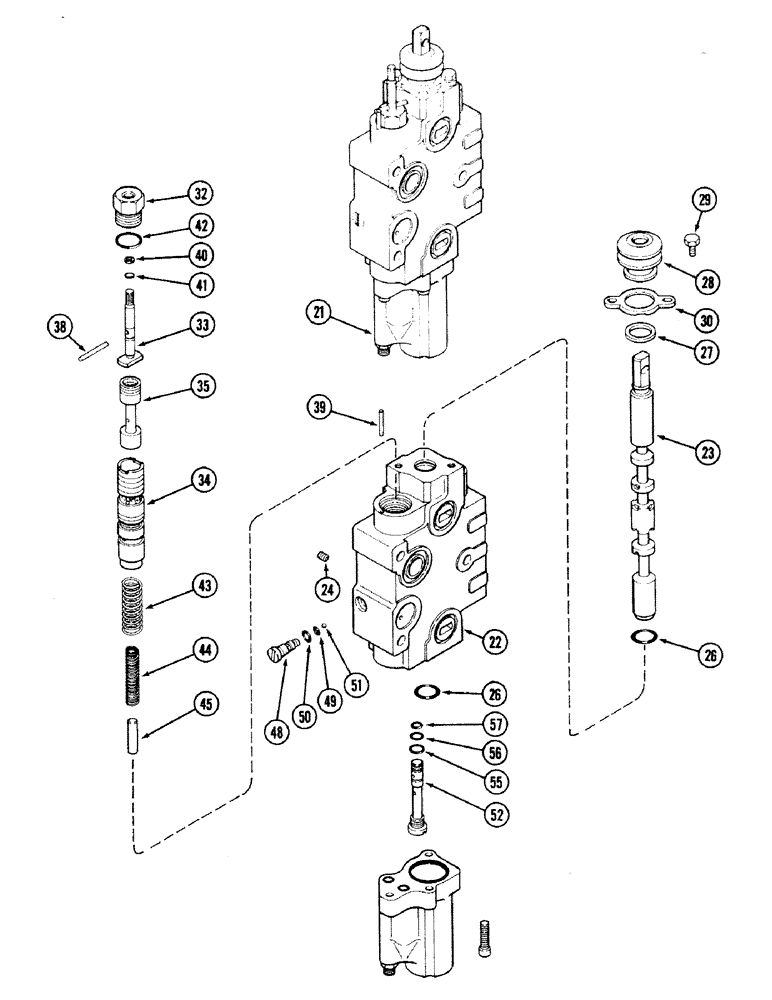

Схема запчастей Case IH 2594 - (8-088) - A169456 REMOTE VALVE BODY ASSEMBLY, WITH LOAD CHECK, (CONT) (08) - HYDRAULICS
40
33
29
23
45
52
44
21
42
49
22
57
32
56
50
55
48
51
27
43
34
28
35
39
26
41
38
24
30
26

Артикул

Название

Примечание

Количество

A169456

VALVE

ASSEMBLY - remote hydraulic control (Replaces A162851) (Order components), Includes: Ref. 21 - 57, Ref. 2 - 20 on fig. 8-86 and 60 - 96 on Fig. 8-90

1шт.

21

A48945

HOUSING

BODY ASSEMBLY - remote hydraulic control valve, Includes: Ref. 22 - 57 and Ref. 60 - 96 on Fig. 8-90

1шт.

22

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

23

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

24

A47105

PLUG

- expansion

1шт.

26

238-5116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

2шт.

A48938

KIT

- service, filter (Order components), Includes: Ref. 27 - 30

1шт.

27

A47205

SEAL,22.61mm ID x 32.13mm OD x 2.67mm Thk

FILTER - spool

1шт.

28

A47188

COVER

BOOT - dust

1шт.

29

86019274

SCREW,Hex, 1/4"-20 x 1/2", G5

- hex, 1/4 NC x 1/2 inch

2шт.

30

A47196

RETAINER

- dust guard

1шт.

32

A48925

PLUG

- flow control

1шт.

33

A48929

SHAFT

- adjusting

1шт.

34

A48956

TUBE

- flow control

1шт.

35

A48957

SPOOL

- flow control

1шт.

A48941

SEAL

KIT - flow control (Order components), Includes: Ref. 38 - 44

1шт.

38

19711R1

PIN,3.17mm OD x 31.75mm L, Coiled

1шт.

39

138-305

LOCK PIN,1/8" x 1", Slotted, Stainless

PIN, 1/8" x 1, Slotted, Stainless

1шт.

40

D71056

RING,Split, 4.47mm ID x 7.21mm OD x 1.32mm Thk

- backup

1шт.

41

238-5008

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

-008, 70 Duro, .176" ID x .070" Thk

1шт.

42

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

43

A48949

DISC

SPRING - outer, flow control

1шт.

44

A48960

SPRING

- inner, flow control

1шт.

45

A48937

PIN

- guide, spring

1шт.

A47210

PLUG

ASSEMBLY - secondary shuttle (Order components), Includes: Ref. 48 - 50

1шт.

48

A47204

PLUG

BODY - shuttle

1шт.

A48939

KIT

- service, shuttle seals (Order components), Includes: Ref. 49 and 50

1шт.

49

238-6008

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

1шт.

50

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

51

211-204

BALL

- 3/16 inch, grade 50, chrome alloy steel

1шт.

52

A47209

SPOOL

SHUTTLE ASSEMBLY - primary, Includes: Ref. 55 - 57 and service kit

1шт.

N6632

SEAL KIT

- service, shuttle seals (Order components), Includes: Ref. 55 - 57

1шт.

55

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

56

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1шт.

57

238-6009

O-RING,0.07" Thk x 0.208" ID, -9, Cl 6, 90 Duro

1шт.

Выбрано товаров: 35
