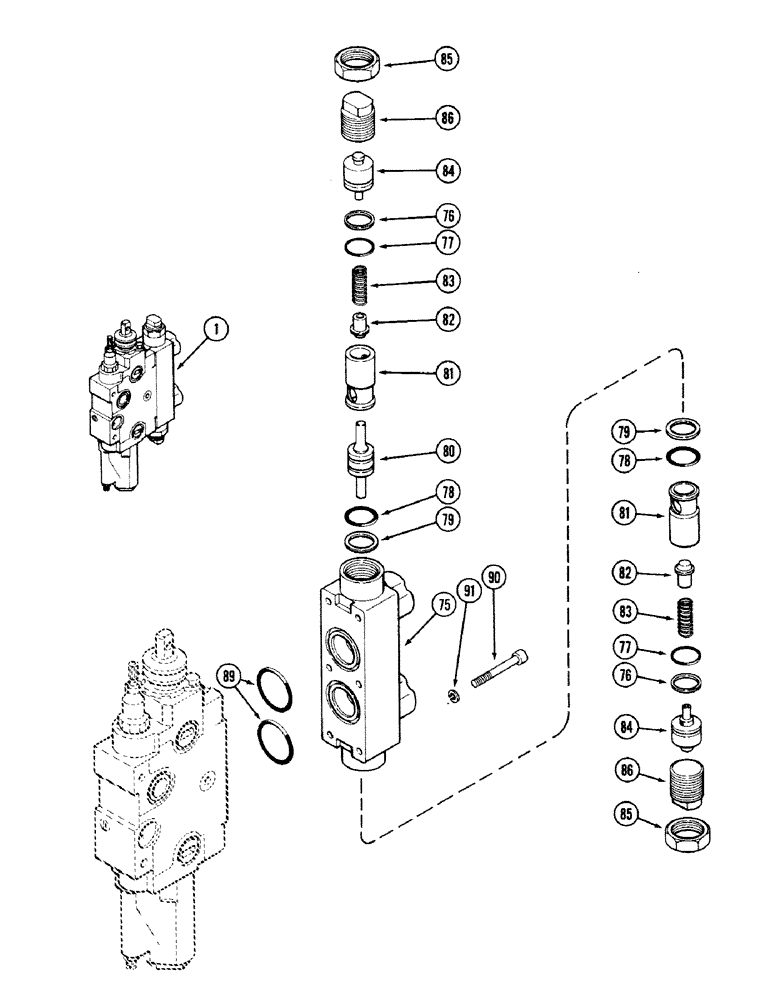

Запчасти Case IH 2594 (8-084) - A162851 REMOTE VALVE BODY ASSEMBLY, WITH LOAD CHECK, (CONT) (08) - HYDRAULICS

1

A162851

LOCK VALVE

VALVE ASSEMBLY - remote hydraulic control (Order A169456) (See Figure: 8-86), Includes: Ref. 75 - 91 and 36 - 69 on Fig. 8-82 and 1 - 37 on Fig. 8-80

1шт.

A46914

BODY

LOAD CHECK ASSEMBLY - valve, Includes: Ref. 75 - 86

1шт.

75

NSS

NOT SOLD SEPARAT

BODY - load check valve

1шт.

76

N7509

RING

- backup

2шт.

77

238-5019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

-019, 70 Duro, .801" ID x .070" Thk

2шт.

78

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

79

R31052

O-RING,15/16" ID x 1-1/16" OD x 3/64"

RING - backup

2шт.

80

A46915

SPOOL

- load check

1шт.

81

A46916

SEAT

- load check

2шт.

82

A46917

SPOOL

POPPET - load check

2шт.

83

A46918

SPRING

- poppet

2шт.

84

A46919

RETAINER

- spring

2шт.

85

A46920

NUT

- hex lock, 1-1/6 inch

2шт.

86

A46921

PLUG

- setting, load check

2шт.

89

238-6127

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

2шт.

90

61-32532

HEX SOC SCREW,1/4"-20 x 2"

SCREW - hex socket head, 1/4 NC x 2 inch

6шт.

91

192-402

LOCK WASHER

WASHER - SAE hi collar lock, 1/4 inch

6шт.
