(8-066) - 1986842C1 REMOTE HYDRAULIC VALVE, TWO SECTION W/LOAD CHECK, TRANSMISSION S/N 16283224 AND AFTER

Запчасти Case IH 2594 (8-066) - 1986842C1 REMOTE HYDRAULIC VALVE, TWO SECTION W/LOAD CHECK, TRANSMISSION S/N 16283224 AND AFTER (08) - HYDRAULICS

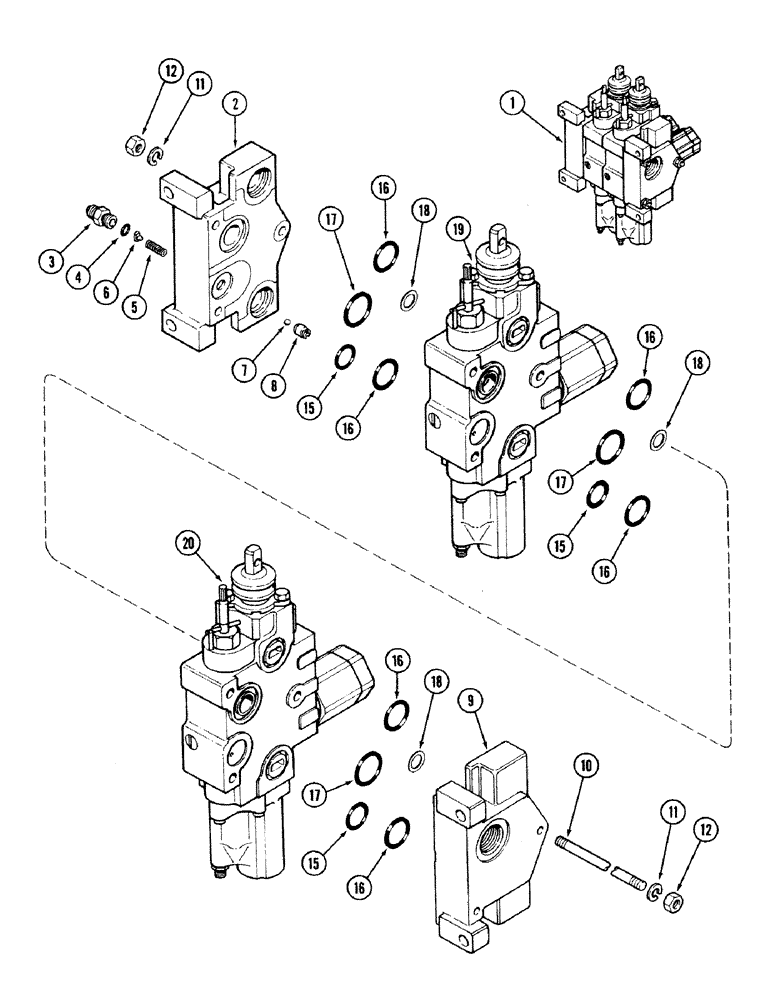

Схема запчастей Case IH 2594 - (8-066) - 1986842C1 REMOTE HYDRAULIC VALVE, TWO SECTION W/LOAD CHECK, TRANSMISSION S/N 16283224 AND AFTER (08) - HYDRAULICS
18
11
12
15
16
18
18
16
20
17
11
17
7
16
16
15
12
6
4
3
9
17
10
2
16
19
8
1
16
5
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1986842C1

VALVE

ASSEMBLY - remote hydraulic (Replaces A176962), Includes: Ref. 2 - 20

1шт.

2

A47169

COVER

ASSEMBLY - inlet, Includes: Ref. 3 - 8

1шт.

3

A47185

FITTING

- inlet

1шт.

5

A47176

SPRING

- valve

1шт.

6

A47214

RETAINER

- spring

1шт.

7

211-206

BALL,1/4" Dia

- 1/4 inch, grade 50, chrome alloy steel

1шт.

8

A47202

SEAT

- valve

1шт.

9

A52403

BODY

COVER - end

1шт.

A48919

SEAL

KIT - valve seal (Order components), Includes: Ref. 10 - 18

1шт.

10

A147506

STUD

- 3/8 NC x 8 inch

3шт.

11

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

12

425-106

NUT,3/8"-16, Cl 5

6шт.

15

238-6211

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

3шт.

16

238-5119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

6шт.

17

238-6214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

3шт.

18

D77566

SHIM,.0030" Thk

Control valve sections .0030" Thk

9шт.

19

REF

INSTRUCTION

BODY ASSEMBLY - remote valve, with load check and priority float (See Figure 8-96)

1шт.

20

REF

INSTRUCTION

BODY ASSEMBLY - remote valve, with load check and float (See Figure 8-96)

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
