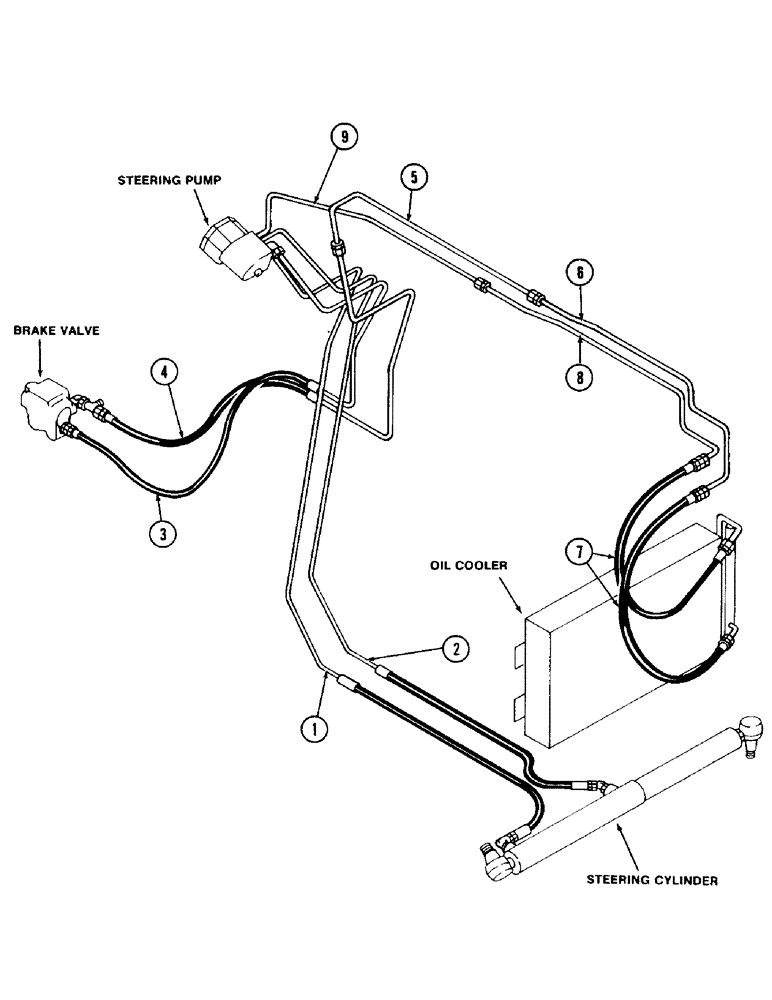

Запчасти Case IH 2594 (1-20) - PICTORIAL INDEX (00) - PICTORIAL INDEX

1

Steering Cylinder Hose And Tube Assembly (Right), Page 5-7

1шт.

2

Steering Cylinder Hose And Tube Assembly (Left), Page 5-7

1шт.

3

Brake Valve To Steering Pump Hose And Tube Assembly, Page 5-7

1шт.

4

Oil Cooler Return Hose And Tube Assembly, Page 5-9

1шт.

5

Oil Cooler Outlet Tube (center), Page 5-9

1шт.

6

Oil Cooler Outlet Tube (Front), Page 5-9

1шт.

7

Oil Cooler Inlet And Outlet Hoses, Page 5-9

1шт.

8

Oil Cooler Inlet Tube (Front), Page 5-9

1шт.

9

Oil Cooler Inlet Tube (Rear), Page 5-9

1шт.
