Запчасти Case IH 2594 (8-046) - REMOTE HYDRAULICS ADD-ON ATTACHMENT, FOURTH CIRCUIT WITHOUT LOAD CHECK, (CONT) (08) - HYDRAULICS

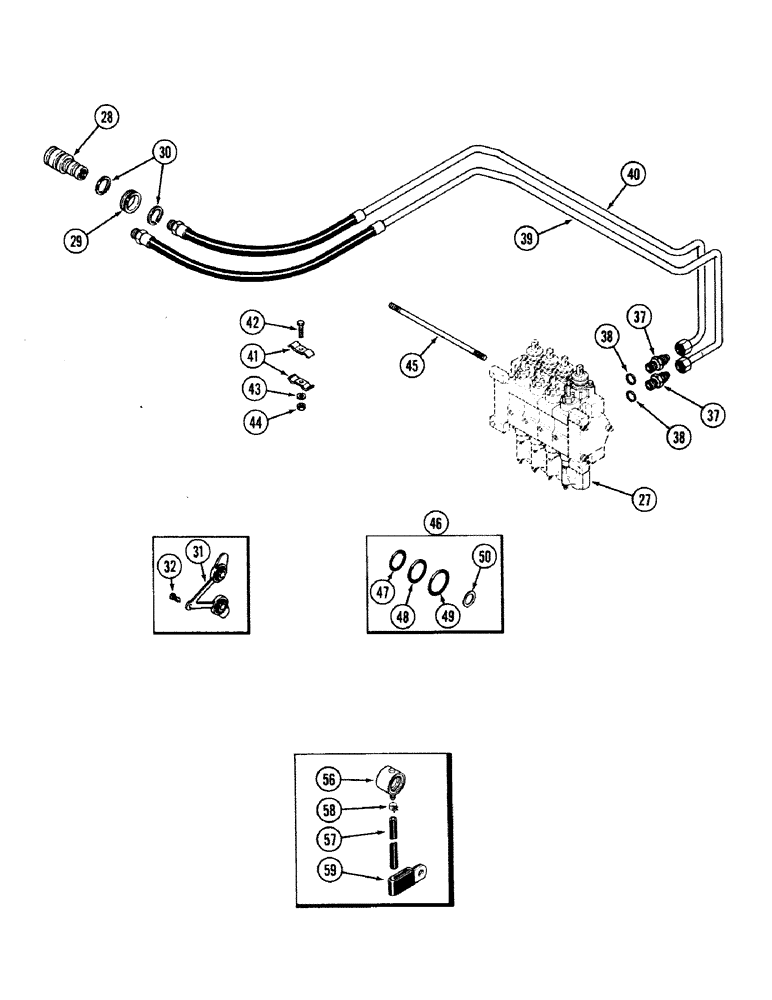

Схема запчастей Case IH 2594 - (8-046) - REMOTE HYDRAULICS ADD-ON ATTACHMENT, FOURTH CIRCUIT WITHOUT LOAD CHECK, (CONT) (08) - HYDRAULICS
38
28
37
59
46
56
45
57
42
48
32
50
44
40
27
43
30
47
31
29
37
49
41
58
39
38

Артикул

Название

Примечание

Количество

A180263

ATTACHMENT - remote hydraulics, no. 4 circuit (Machinery item) (Order A181930) (See Figure: 8-48), Includes: Ref. 27 - 59 and 1 - 26 on Fig. 8-44

1шт.

A67589

ATTACHMENT - remote hydraulics, no. 4 circuit (Machinery item) (Order A181930) (See Figure: 8-48), Includes: Ref. 27 - 59 and 1 - 26 on Fig. 8-44

1шт.

27

REF

INSTRUCTION

BODY - remote valve (See Figure 8-76)

1шт.

28

REF

INSTRUCTION

COUPLING - remote hydraulics, female (See Figure 8-104)

2шт.

29

A139805

RETAINER

- coupling

2шт.

30

104-11150

SNAP RING,#150, 1.408", Ext

RING - retaining

4шт.

31

A145468

PLUG

- remote coupling dust (Used with attachment A67589)

1шт.

32

A162364

FASTENER

- dust plug (Used with attachment A67589)

1шт.

37

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x o-ring boss, Includes: Ref. 38

2шт.

38

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

39

A145907

HOSE

- no. 7 remote

1шт.

40

A145908

HOSE

- no. 8 remote

1шт.

41

A63323

CLAMP

- tube

2шт.

42

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

1шт.

43

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

44

425-105

NUT,5/16"-18, G5

1шт.

45

A147508

STUD

- 3/8 NC x 11-3/4 inch

3шт.

46

A47576

KIT

- seals and shims (Order components), Includes: Ref. 47 - 50

1шт.

47

238-6210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 6, 90 Duro

- 3/4 ID x 1/8 inch wide

1шт.

48

238-5119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

2шт.

49

238-6214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

5шт.

50

D77566

SHIM,.0030" Thk

Control valve sections .0030" Thk

3шт.

56

A177479

CAP

- remote coupling dust (Used with attachment A180263)

2шт.

57

A180178

HOSE,7.90 mm ID x 914.40 mm, SAE J200

- drain (In A180263 attachment) 7.90 mm ID x 914.40 mm, SAE J200

2шт.

58

A180159

CLAMP,10.29mm - 12.32mm

- hose (Used with attachment A180263)

2шт.

59

A180154

CLAMP

- hose (Used with attachment A180263)

1шт.

Выбрано товаров: 26
