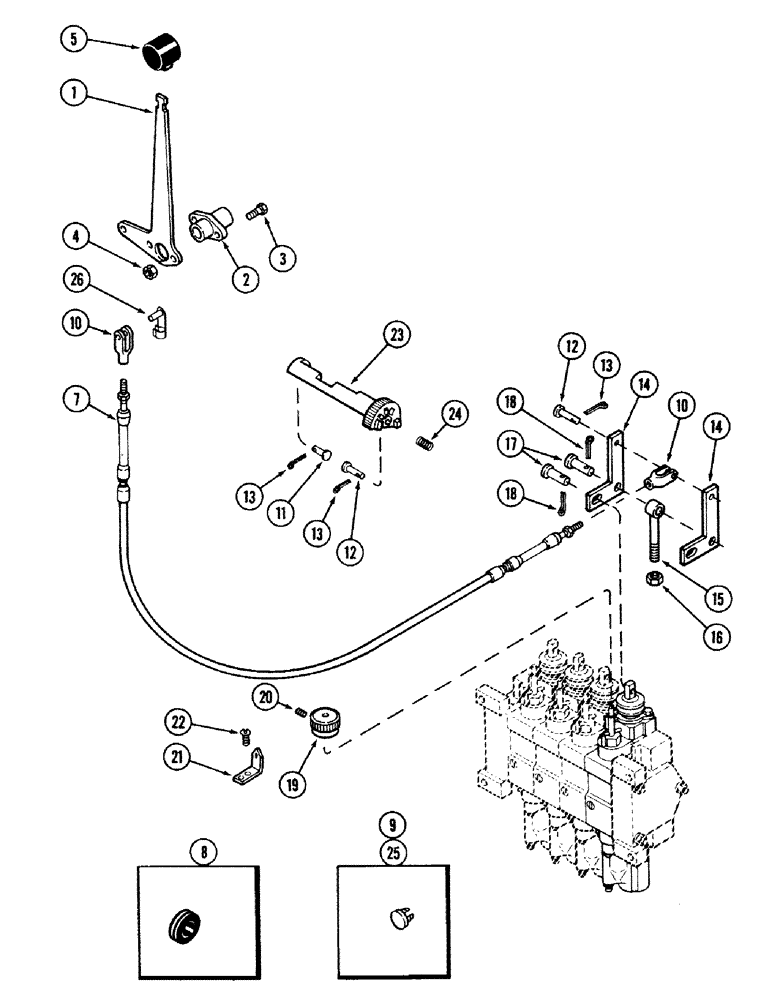

Запчасти Case IH 2594 (8-044) - REMOTE HYDRAULICS ADD-ON ATTACHMENT, FOURTH CIRCUIT WITHOUT LOAD CHECK (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
A180263
ATTACHMENT - remote hydraulics, no. 4 circuit (Machinery item) (Order A181930) (See Figure: 8-48), Includes: Ref. 1 - 26 and 27 - 59 on Fig. 8-46
1шт.
A67589
ATTACHMENT - remote hydraulics, no. 4 circuit (Machinery item) (Order A181930) (See Figure: 8-48), Includes: Ref. 1 - 26 and 27 - 59 on Fig. 8-46
1шт.
1
A141393
LEVER
- remote hand control
1шт.
2
160500
BEARING - control lever
1шт.
3
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
- hex, 1/4 NC x 3/4 inch
2шт.
4
230-4214
LOCK NUT,1/4"-20, GA
NUT - hex, self-locking, 1/4 inch NC
2шт.
5
A177438
KNOB
- hand lever (Black)
1шт.
7
A177635
CABLE
- control lever to valve (Used with attachment A180263)
1шт.
7
A141402
CABLE
- control lever to valve (Used with attachment A67589) (Order A177635)
1шт.
8
A141389
GROMMET
- cable
1шт.
10
213-113
ADJUSTABLE CLEVIS,#10-32
CLEVIS - adjustable, no. 10
2шт.
11
A167543
PIN,4.72mm OD x 19.99mm L
- clevis
2шт.
12
A67313
PIN
- clevis
2шт.
13
432-412
COTTER PIN,1/16" x 3/4"
PIN, SPLIT (COTTER), 1/16" x 3/4"
3шт.
14
A145598
LEVER
- remote valve bellcrank
2шт.
15
A145597
EYE
- bellcrank pivot
1шт.
16
425-146
JAM NUT,3/8" - 16, Gr 5
- hex jam, 3/8 inch NC
1шт.
18
432-612
COTTER PIN,3/32" x 3/4"
PIN , SPLIT (COTTER), 3/32" x 3/4"
2шт.
19
A160814
KNOB
- flow control
1шт.
20
84-21010
SET SCREW,Hex Soc, #10-32 x 5/8"
SCREW - set, hex socket headless, no. 10 NF x 5/8 inch
1шт.
21
A64179
INDEX
- flow control
1шт.
22
187-1037
SELF-TAP SCREW,Slotted Pan Hd, #8 x 3/8"
SCREW - self-tapping, pan head slotted, no. 8-18 x 3/8 inch
2шт.
23
A162860
QUADRANT
- remote lockout, outer
1шт.
24
A164976
SPRING
- remote lockout
1шт.
25
A162961
PLUG
- 3/4 inch diameter head
1шт.
26
A149683
PIN
- clevis, spring, 3/16 inch
1шт.
Выбрано товаров: 28
