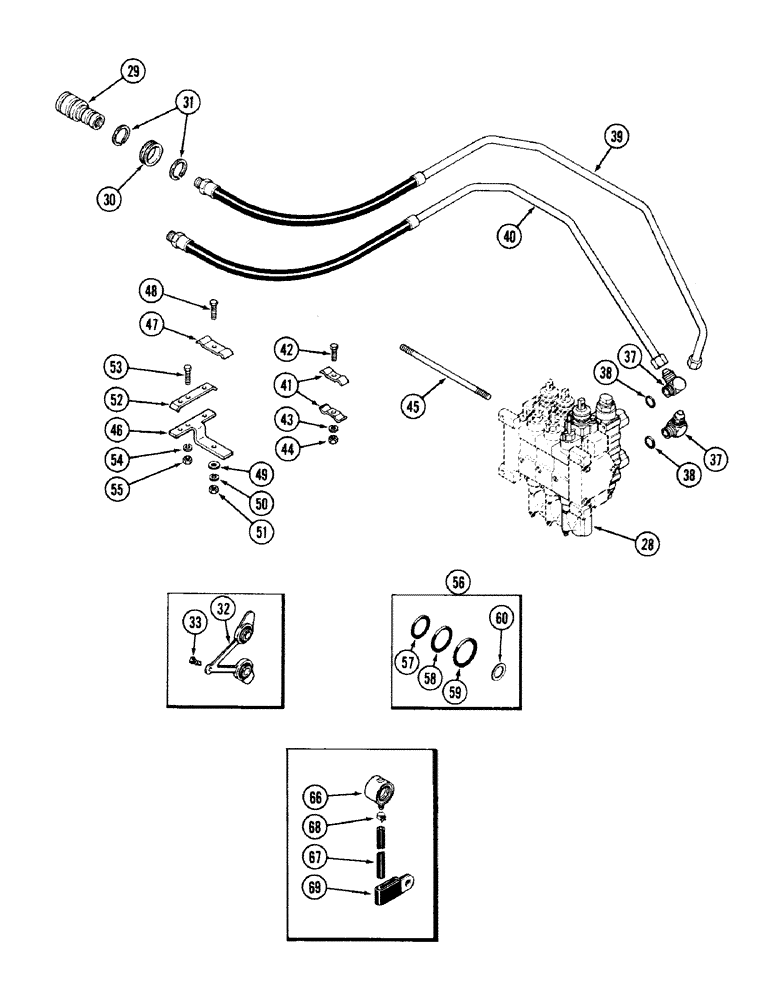

Запчасти Case IH 2594 (8-042) - REMOTE HYDRAULICS ADD-ON ATTACHMENT, THIRD CIRCUIT WITH LOAD CHECK, (CONT) (08) - HYDRAULICS

A180264

ATTACHMENT - remote hydraulics, no. 3 circuit (Machinery item) (Order A181932) (See Figure: 8-52), Includes: Ref. 28 - 68 and 1 - 27 on fig. 8-40

1шт.

A67590

ATTACHMENT - remote hydraulics, no. 3 circuit (Machinery item) (Order A181932) (See Figure: 8-52), Includes: Ref. 28 - 68 and 1 - 27 on fig. 8-40

1шт.

28

REF

INSTRUCTION

BODY - remote valve (See Figure 8-80 or 8-86)

1шт.

29

REF

INSTRUCTION

COUPLING - remote hydraulic, female (See Figure 8-104)

2шт.

30

A139805

RETAINER

- coupling

2шт.

31

104-11150

SNAP RING,#150, 1.408", Ext

RING - retaining

4шт.

32

A145468

PLUG

- remote coupling dust (Used with attachment A67590)

1шт.

33

A162364

FASTENER

- dust plug (Used with attachment A67590)

1шт.

37

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj o-ring boss, Incl. Ref. 38

2шт.

38

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

39

A165387

HOSE

- no. 5 remote

1шт.

40

A165388

HOSE

- no. 6 remote

1шт.

41

A63323

CLAMP

- tube

2шт.

42

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

1шт.

43

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

44

425-105

NUT,5/16"-18, G5

1шт.

45

A147507

STUD

- 3/8 NC x 9-7/8 inch

3шт.

46

A147771

BRACKET

- support, tube clamp

1шт.

47

A17542

CLAMP

- tube

1шт.

48

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

1шт.

49

195-102

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

1шт.

50

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

51

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

52

A147772

CLAMP

- tube

1шт.

54

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

55

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

56

A47576

KIT

- seals and shims (Order components), Includes: Ref. 57 - 60

1шт.

57

238-6210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 6, 90 Duro

- 3/4 ID x 1/8 inch wide

1шт.

58

238-5119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

2шт.

59

238-6214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

5шт.

60

D77566

SHIM,.0030" Thk

Control valve sections .0030" Thk

3шт.

66

A177479

CAP

- remote coupling dust (Used with attachment A180264)

2шт.

67

A180178

HOSE,7.90 mm ID x 914.40 mm, SAE J200

- drain (Used with attachment A180264) 7.90 mm ID x 914.40 mm, SAE J200

2шт.

68

A180159

CLAMP,10.29mm - 12.32mm

- hose (Used with attachment A180264)

2шт.

69

A180154

CLAMP

- hose (Used with attachment A180264)

1шт.

53

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.
