Запчасти Case IH 2594 (8-038) - REMOTE HYDRAULICS ADD-ON ATTACHMENT, THIRD CIRCUIT WITHOUT LOAD CHECK, (CONT) (08) - HYDRAULICS

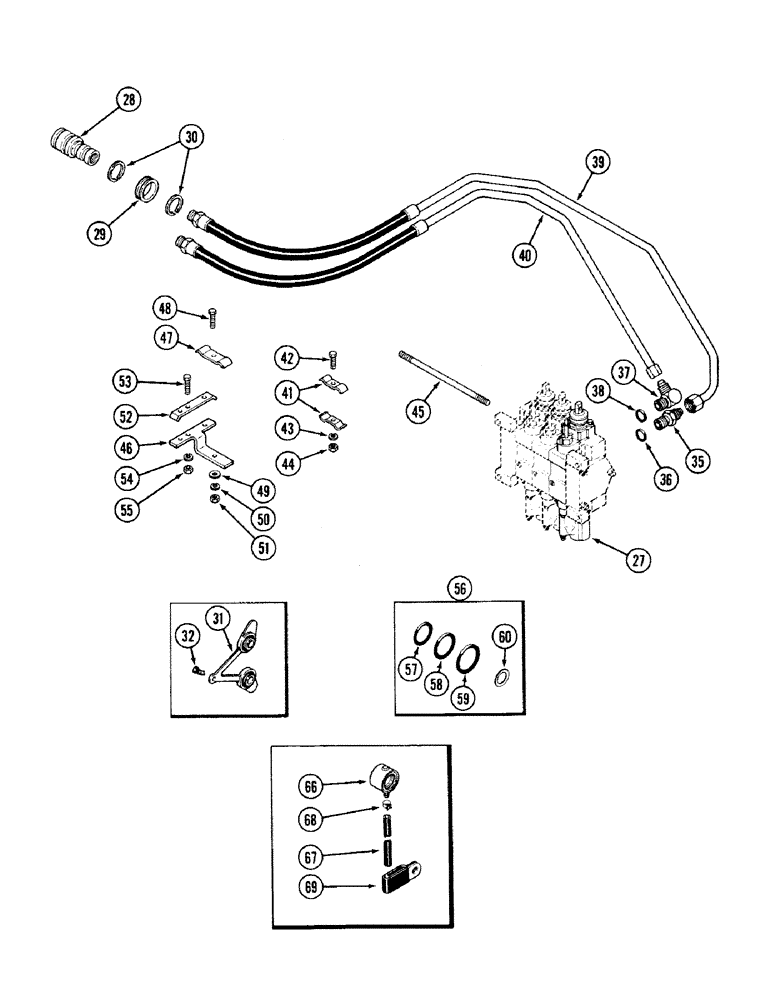

Схема запчастей Case IH 2594 - (8-038) - REMOTE HYDRAULICS ADD-ON ATTACHMENT, THIRD CIRCUIT WITHOUT LOAD CHECK, (CONT) (08) - HYDRAULICS
55
44
69
57
42
48
56
27
60
29
54
46
36
50
49
47
68
67
45
40
53
31
52
59
43
32
66
35
30
58
51
37
41
28
38
39

Артикул

Название

Примечание

Количество

A180262

ATTACHMENT - remote hydraulics, no. 3 circuit (Machinery item) (Order A181930) (See Figure: 8-48), Includes: Ref. 27 - 60 and 1 - 26 on fig. 8-36

1шт.

A67588

ATTACHMENT - remote hydraulics, no. 3 circuit (Machinery item) (Order A181930) (See Figure: 8-48), Includes: Ref. 27 - 60 and 1 - 26 on fig. 8-36

1шт.

27

REF

INSTRUCTION

BODY - remote valve (See Figure 8-76)

1шт.

28

REF

INSTRUCTION

COUPLING - remote hydraulics, female (See Figure 8-104)

2шт.

29

A139805

RETAINER

- coupling

2шт.

30

104-11150

SNAP RING,#150, 1.408", Ext

RING - retaining

4шт.

31

A145468

PLUG

- remote coupling dust (Used with attachment A67588)

1шт.

32

A162364

FASTENER

- dust plug (Used with attachment A67588)

1шт.

35

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x o-ring boss, Includes: Ref. 36

1шт.

36

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

37

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj o-ring boss, Incl. Ref. 38

1шт.

38

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

39

A145905

HOSE

- no. 5 remote

1шт.

40

A180046

HOSE

- no. 6 remote (Used with attachment A180262)

1шт.

40

A145906

HOSE

- no. 6 remote (Used with attachment A67588) (Order A180046)

1шт.

41

A63323

CLAMP

- tube

2шт.

42

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

1шт.

43

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

44

425-105

NUT,5/16"-18, G5

1шт.

45

A147507

STUD

- 3/8 NC x 9-7/8 inch

3шт.

46

A147771

BRACKET

- support, tube clamp

1шт.

47

A17542

CLAMP

- tube

1шт.

48

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

1шт.

49

195-102

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

1шт.

50

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

51

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

52

A147772

CLAMP

- tube

1шт.

54

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

55

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

56

A47576

KIT

- seals and shims (Order components), Includes: Ref. 57 - 60

1шт.

57

238-6210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 6, 90 Duro

- 3/4 ID x 1/8 inch wide

1шт.

58

238-5119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

2шт.

59

238-6214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

5шт.

60

D77566

SHIM,.0030" Thk

Control valve sections .0030" Thk

3шт.

66

A177479

CAP

- remote coupling dust (Used with attachment A180262)

2шт.

67

A180178

HOSE,7.90 mm ID x 914.40 mm, SAE J200

- drain (Used with A180262 attachment) 7.90 mm ID x 914.40 mm, SAE J200

2шт.

68

A180159

CLAMP,10.29mm - 12.32mm

- hose (Used with attachment A180262)

2шт.

69

A180154

CLAMP

- hose (Used with attachment A180262)

1шт.

53

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

Выбрано товаров: 39
