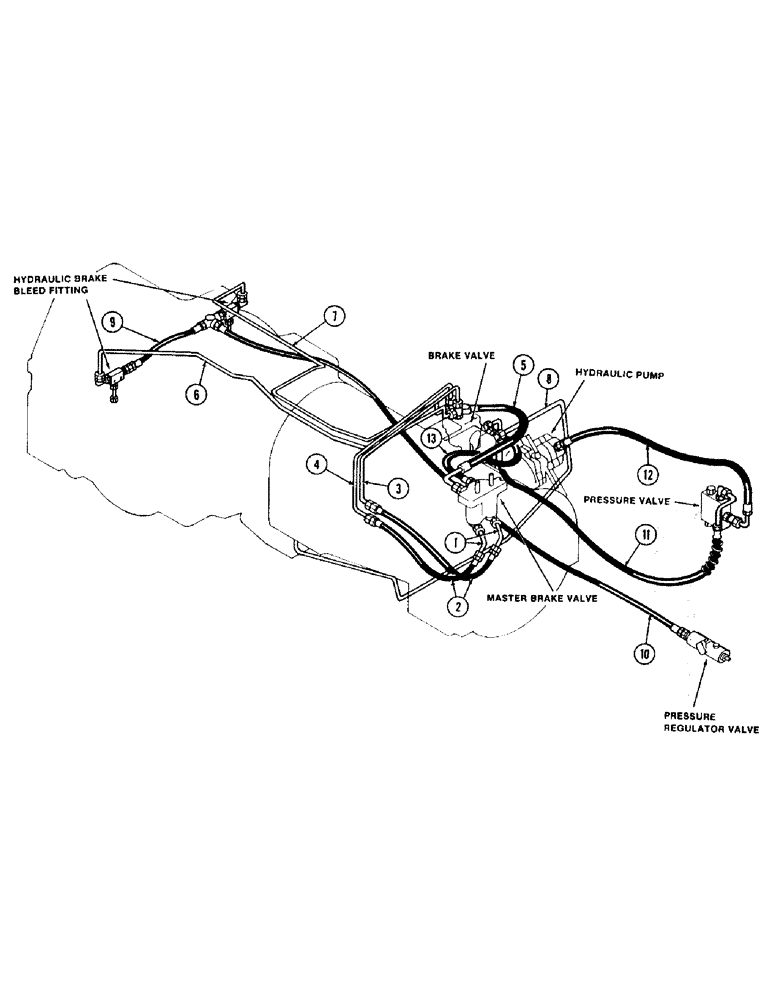

Запчасти Case IH 2594 (1-18) - PICTORIAL INDEX, BRAKE HYDRAULICS, WITH ACCUMULATOR SYSTEM IF EQUIPPED (00) - PICTORIAL INDEX

1

Master Brake Valve Tube (Front), Page 7-5

1шт.

2

Master Brake Valve Hose (Front), Page 7-5

1шт.

3

Master Brake Valve Right Tube (Front), Page 7-5

1шт.

4

Master Brake Valve Left Tube (Front), Page 7-5

1шт.

5

Master Brake Valve To Brake Valve, Page 7-5

1шт.

6

Brake Tube (Right Rear), Page 7-5

1шт.

7

Brake Tube (Left Rear), Page 7-5

1шт.

8

Brake Valve To Sump Tube, Page 5-9

1шт.

9

Right To Left Brake Fitting Hose, Page 7-15

1шт.

10

Regulator Valve To Brake Hose, Page 7-15

1шт.

11

Pressure Valve To Brake Valve Hose, Page 7-15

1шт.

12

Hydraulic Pump To Pressure Valve Hose, Page 7-15

1шт.

13

Master Brake Valve To Brake Valve Hose, Page 7-5

1шт.
