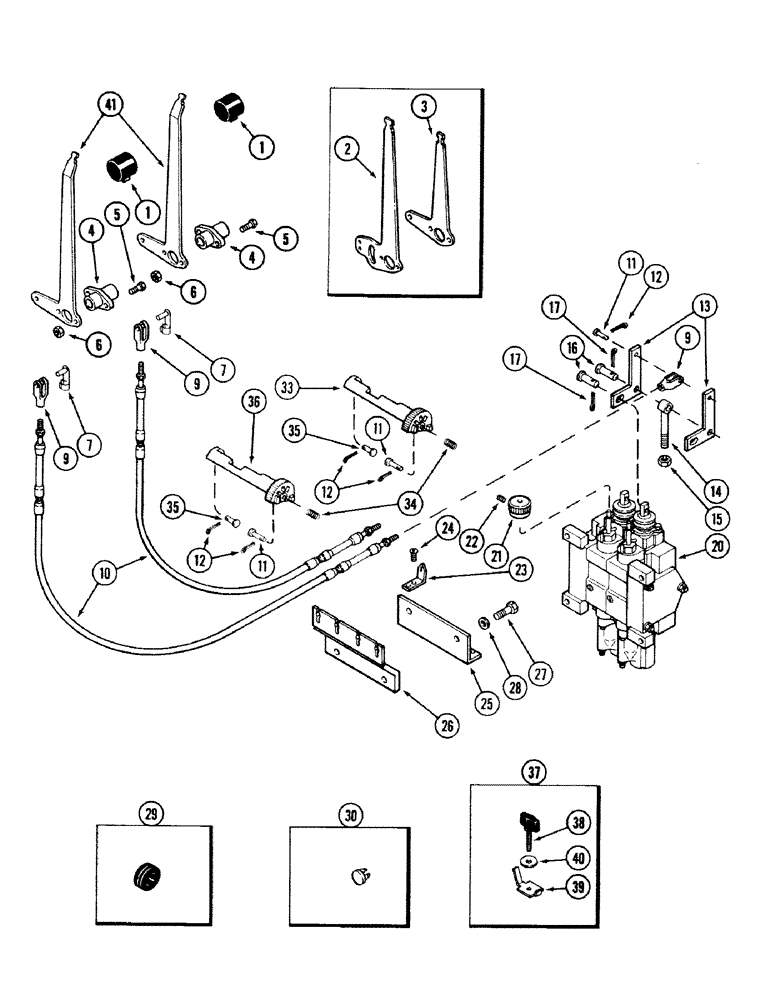

Запчасти Case IH 2594 (8-026) - REMOTE HYDRAULIC CONTROLS, TWO CIRCUIT REMOTE (08) - HYDRAULICS

1

A177438

KNOB

- hand lever (Black)

2шт.

2

A162858

LEVER

- outer (If equipped)

1шт.

3

A141393

LEVER

- inner (If equipped)

1шт.

4

A160500

BUSHING,15.95mm ID x 25.4mm OD x 55.37mm L

BEARING - control lever

2шт.

5

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

4шт.

6

230-4214

LOCK NUT,1/4"-20, GA

NUT - hex, self-locking, 1/4 inch NC

4шт.

7

A149683

PIN

- clevis, spring, 3/16 omcj

2шт.

9

213-113

ADJUSTABLE CLEVIS,#10-32

CLEVIS - adjustable, no. 10

4шт.

10

A177635

CABLE

- control, Serial Range: lever-valve

2шт.

11

A67313

PIN

- clevis

4шт.

12

432-412

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), 1/16" x 3/4"

6шт.

13

A145598

LEVER

- remote valve bellcrank

4шт.

14

A145597

EYE

- bellcrank pivot

2шт.

15

425-146

JAM NUT,3/8" - 16, Gr 5

- hex jam, 3/8 inch NC

2шт.

16

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

PIN, CLEVIS, 3/8" x 1 1/16"

4шт.

17

32-612

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

4шт.

20

REF

INSTRUCTION

VALVE - remote (See Figures: 8-58, 8-60, 8-64 or 8-66)

1шт.

21

A160814

KNOB

- flow control

2шт.

22

84-21010

SET SCREW,Hex Soc, #10-32 x 5/8"

SCREW - set, hex socket, no. 10 NF x 5/8 inch

2шт.

23

A64179

INDEX

- flow control (If equipped)

2шт.

24

187-1037

SELF-TAP SCREW,Slotted Pan Hd, #8 x 3/8"

SCREW - self-tapping, pan head slotted, no. 8-18 x 3/8 inch

4шт.

25

A145804

BRACKET

- index, flow control (If equipped)

1шт.

26

A145021

PLATE

- mounting, remote cable

1шт.

27

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

28

95-21044

WASHER,3/8"

- flat, 7/16 x 1 x 5/64 inch

2шт.

29

A141389

GROMMET

- cable, cab floor

1шт.

30

A67295

PLUG

- 9/16 inch diameter head

1шт.

30

A162961

PLUG

- 3/4 inch diameter head

1шт.

33

A162861

QUADRANT

- remote lockout, inner

1шт.

34

A164976

SPRING

- remote lockout

2шт.

35

A167543

PIN,4.72mm OD x 19.99mm L

- clevis

2шт.

36

A162860

QUADRANT

- remote lockout, outer

1шт.

37

A67602

KIT - stop, remote lever lockout (Order components), Includes: Ref. 38 - 40

1шт.

38

A162958

BUTTON

KNOB - stop

1шт.

39

A176175

CLAMP

- lever stop

1шт.

40

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

1шт.

41

A181781

LEVER

- remote (If equipped)

2шт.
