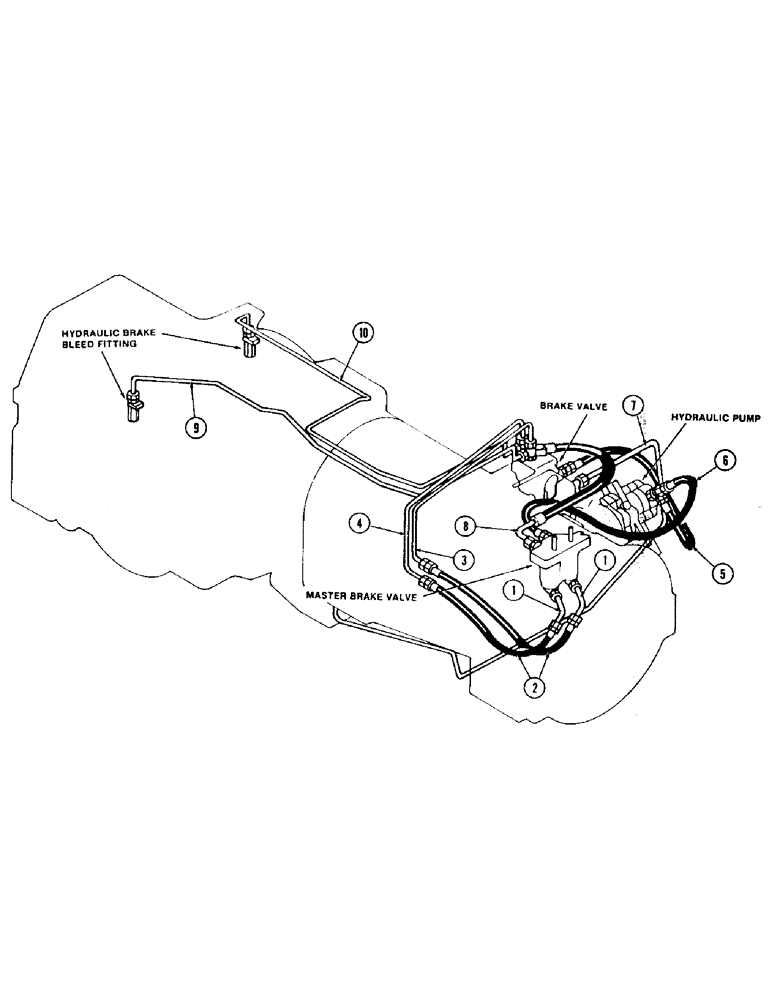

Запчасти Case IH 2594 (1-16) - PICTORIAL INDEX, BRAKE HYDRAULICS (00) - PICTORIAL INDEX
8
2
1
3
5
9
6
1
4
7
10
№
Артикул
Название
Примечание
Количество
1
Master Brake Valve Tubes (Front), Page 7-5
1шт.
2
Master Brake Valve Hoses (Front), Page 7-5
1шт.
3
Master Brake Valve Right Tube (Front), Page 7-5
1шт.
4
Master Brake Valve Left Tube (Front), Page 7-5
1шт.
5
Hydraulic Pump To Brake Valve Hose, Page 7-5
1шт.
6
Hydraulic Pump To Master Brake Valve Hose, Page 7-5
1шт.
7
Brake Valver To Sump Tube, Page 5-9
1шт.
8
Master Brake Valve To Brake Valve Hose, Page 7-5
1шт.
9
Brake Tube (Right Rear), Page 7-5
1шт.
10
Brake Tube (Left Rear), Page 7-5
1шт.
