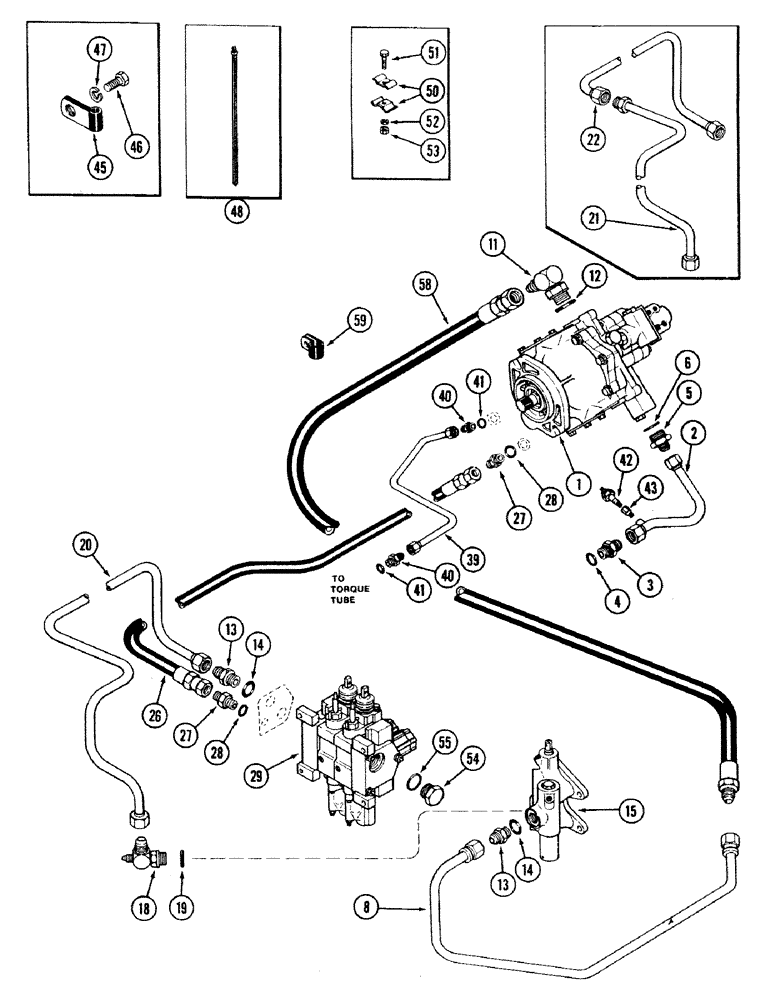

Запчасти Case IH 2594 (8-010) - HYDRAULIC PUMP AND LINES, WITHOUT HITCH, TRANSMISSION SERIAL NO.16283224 AND AFTER (08) - HYDRAULICS

1

REF

INSTRUCTION

PUMP - gear and piston (See Figure: 8-12)

1шт.

2

A167255

PIPE

TUBE - pump suction

1шт.

3

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x o-ring boss, Incl. Ref. 4

1шт.

4

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .116" Thk

1шт.

5

A147128

CONNECTOR, ELEC

UNION - straight, 1 inch tube, 1-5/16 NF x 1-7/8 inch NF, Includes: Ref. 6

1шт.

6

237-6028

O-RING,1.364" ID x 1.504" OD x 0.07"

28-1, 90 Duro, 2.09" ID x .116" Thk

1шт.

8

A185016

TUBE

- regulator, Serial Range: valve-hose

1шт.

11

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 deg, 1-1/16-12 flare x 1-5/16-12 inch adj o-ring, Includes: Ref. 12

1шт.

12

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 1-3/64 ID x 1-64 inch

1шт.

13

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x o-ring boss, Incl. Ref. 14

2шт.

14

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

15

REF

INSTRUCTION

VALVE - PTO regulator (See Figure: 6-94, 6-96 or 6-98)

1шт.

18

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj o-ring boss (Used on tractors without air/oil seat)

1шт.

18

218-5578

TEE,9/19/16"-18, 37 Degree x 1 1/16"-12, O-Ring Run

- 1-1/16-12 flare branch x adj o-ring x 9/16-18 inch flare (Used on tractors with air/oil seat), Includes: Ref. 19

1шт.

19

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

20

REF

INSTRUCTION

TUBE - regulator valve to remote valve (Order Ref. 21 and 22)

1шт.

21

A162498

TUBE

- tee to tube (Service only)

1шт.

22

A162499

TUBE

- tube to remote valve (Service only)

1шт.

26

H172965

HYDRAULIC HOSE,6.35 mm ID x 939.60 mm, SAE 100R1

Pump to Remote Valve Pilot, Replaces Tube A169354 6.35 mm ID x 939.60 mm, SAE 100R1

1шт.

27

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

ADAPTER - straight, 9/16-18 flare x 7/16-20 inch o-ring boss, Includes: Ref. 28

2шт.

28

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

29

REF

INSTRUCTION

VALVE - remote (See Figure: 8-64, 8-66, 8-68 or 8-70)

1шт.

39

A167254

PIPE

TUBE - steering pump suction

1шт.

40

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x o-ring boss, Includes: Ref. 41

2шт.

41

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

42

REF

INSTRUCTION

SWITCH - transmission filter pressure (See Figure: 4-12)

1шт.

43

A161432

FITTING

SNUBBER - switch

1шт.

45

49839

CLAMP

- tube

2шт.

46

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

47

95-81159

WASHER,3/8" x 7/8" x .083"

1шт.

48

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

50

NLS

NO LONGER SERVICED

- tube

4шт.

51

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

52

92-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

53

425-105

NUT,5/16"-18, G5

2шт.

54

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

- hex, 1-1/16-12 inch o-ring boss, Includes: Ref. 55

1шт.

55

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

58

D42600

HOSE

-, Serial Range: pump-tube

1шт.

59

T50103

CLAMP

- tube

1шт.
