Запчасти Case IH 2594 (8-006) - HYDRAULIC PUMP AND LINES, WITH HITCH, TRANSMISSION SERIAL NO. 16283224 AND AFTER (08) - HYDRAULICS

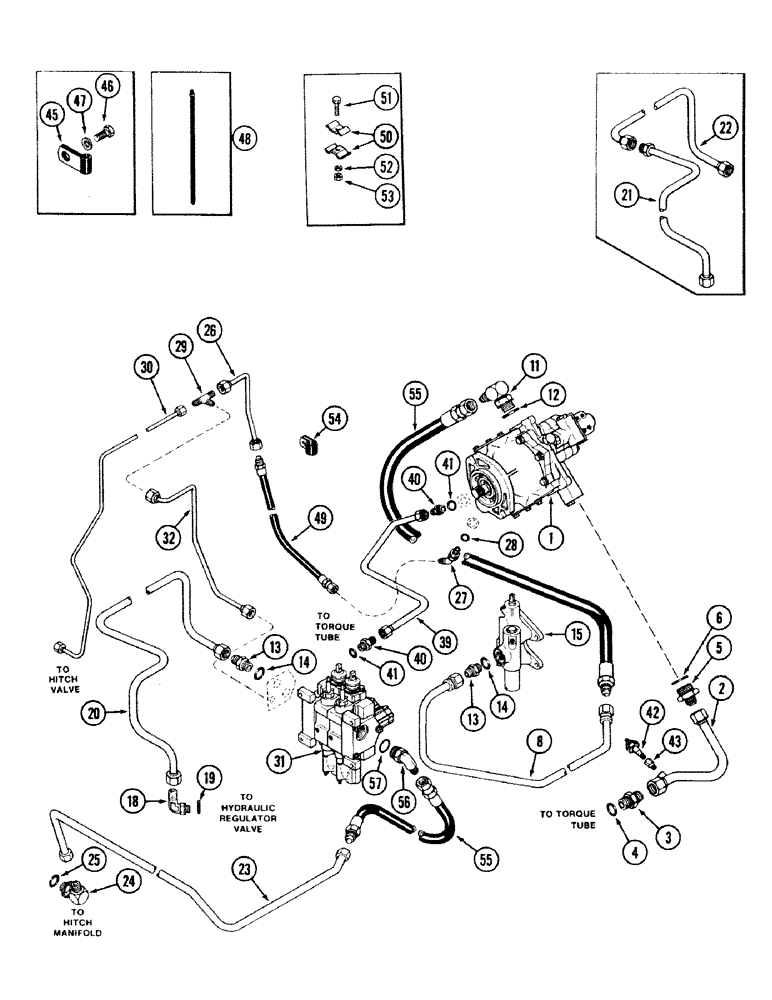

Схема запчастей Case IH 2594 - (8-006) - HYDRAULIC PUMP AND LINES, WITH HITCH, TRANSMISSION SERIAL NO. 16283224 AND AFTER (08) - HYDRAULICS
22
30
32
50
27
41
1
8
13
11
14
15
57
4
19
29
56
49
25
23
40
40
24
18
14
21
12
47
45
43
46
28
52
31
39
48
6
55
51
26
54
55
3
5
53
13
20
41
2
42

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

PUMP - gear and piston (See Figure: 8-12)

1шт.

2

A167255

PIPE

TUBE - pump suction

1шт.

3

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straighto-ring boss, Incl. Ref. 4

1шт.

4

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .116" Thk

1шт.

5

A147128

CONNECTOR, ELEC

UNION - straight, 1 inch tube, 1-5/16 NF x 1-7/8 inch NF, Includes: Ref. 6

1шт.

6

237-6028

O-RING,1.364" ID x 1.504" OD x 0.07"

28-1, 90 Duro

1шт.

8

A185016

TUBE

- regulator, Serial Range: valve-hose

1шт.

11

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 deg, adj o-ring, Includes: Ref. 12

1шт.

12

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

13

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight o-ring boss, Incl. Ref. 14

2шт.

14

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro

1шт.

15

REF

INSTRUCTION

VALVE - PTO regulator (See Figures: 6-94, 6-96 or 6-98)

1шт.

18

218-5578

TEE,9/19/16"-18, 37 Degree x 1 1/16"-12, O-Ring Run

1шт.

18

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1шт.

19

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro

14шт.

20

REF

INSTRUCTION

TUBE - regulator valve to remote valve (Order ref 21 and 22)

1шт.

21

A162498

TUBE

- tee to tube (Service only)

1шт.

22

A162499

TUBE

- to remote valve (Service only)

1шт.

23

A185530

TUBE

- hitch, Serial Range: manifold-hose

1шт.

24

A181670

ELBOW,90 Degree, 1 1/16"-12 37 Degree x 7/8"-14, O-Ring

1шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

26

A177331

PIPE

TUBE - pump, Serial Range: pilot-tee

1шт.

27

218-5133

ELBOW,45 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

1шт.

28

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

29

218-593

TEE,9/16"-18, 37 Degree

1шт.

30

NSS

NOT SOLD SEPARAT

- tee to hitch manifold, pilot

1шт.

31

REF

INSTRUCTION

VALVE - remote (See Figures: 8-64, 8-66, 8-68 or 8-70)

1шт.

32

A143338

TUBE

- remote valve, Serial Range: pilot-tee

1шт.

39

A167254

PIPE

TUBE - steering pump suction

1шт.

40

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

2шт.

41

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro

1шт.

42

REF

INSTRUCTION

SWITCH - transmission filter pressure (See Figure: 4-12)

1шт.

43

A161432

FITTING

SNUBBER - switch

1шт.

45

49839

CLAMP

- tube

2шт.

46

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

47

95-81159

WASHER,3/8" x 7/8" x .083"

1шт.

48

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

49

A176455

HYDRAULIC HOSE,0.25" ID x 38.00", SAE J343, SAE 100R1, SAE J517

1шт.

50

49885

CLAMP

- tube

4шт.

51

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

52

92-11031

LOCK WASHER,5/16"

2шт.

53

425-105

NUT,5/16"-18, G5

2шт.

54

T50103

CLAMP

- tube

1шт.

55

D42600

HOSE

- hydraulic

2шт.

56

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1шт.

57

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro

1шт.
