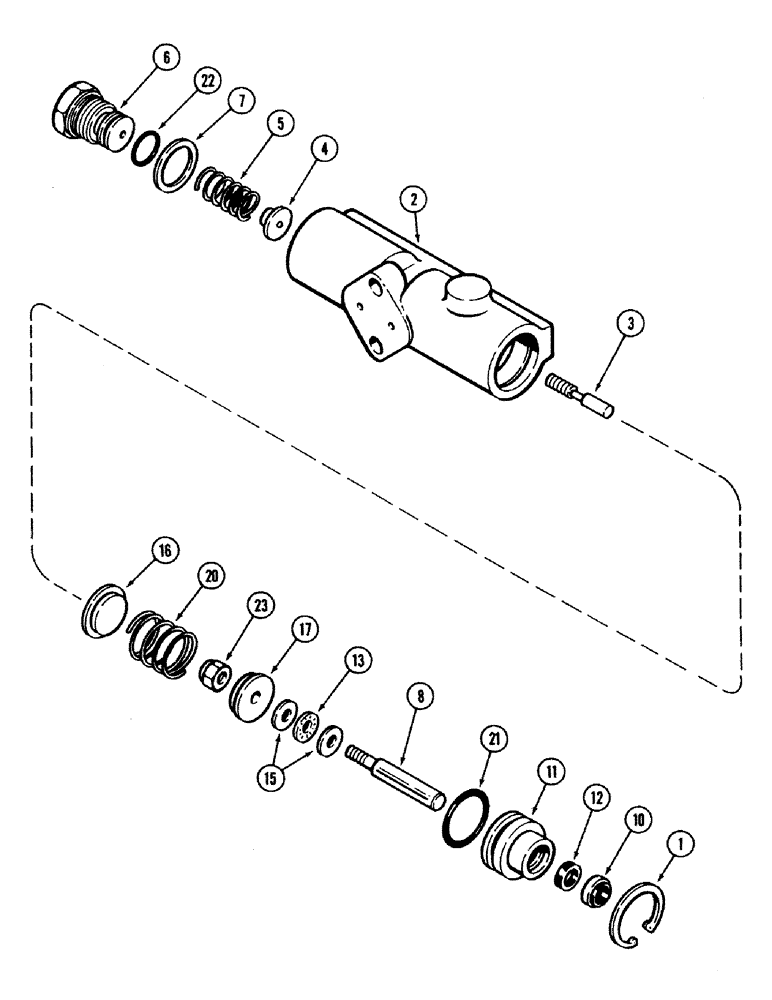

Запчасти Case IH 2594 (7-22) - PRESSURE REGULATOR VALVE (07) - BRAKES

A147690

VALVE

ASSEMBLY - pressure regulating, Includes: Ref. 1 - 23

1шт.

1

G300917

RING - retaining

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

3

A47860

SPOOL

- valve

1шт.

4

A47861

GUIDE

- spring (Small)

1шт.

5

A47862

SPRING

- spool (Small)

1шт.

6

A47863

PLUG

- orifice

1шт.

7

A47864

WASHER

- orifice (Copper)

1шт.

Part of Valve Seal Kit, P/N A48463

1шт.

8

A47865

STEM

- valve

1шт.

10

A47866

WIPER SEAL

- valve stem

1шт.

Part of Valve Seal Kit, P/N A48463

1шт.

11

A47867

GLAND

- valve stem

1шт.

12

A47868

RING

- quad, gland

1шт.

Part of Valve Seal Kit, P/N A48463

1шт.

13

A47869

BEARING

- thrust

1шт.

15

A47870

SHIM

RACE - thrust bearing

2шт.

16

A47871

GUIDE

- spring (Large)

1шт.

17

A47872

GUIDE

- spring (Large)

1шт.

20

A47873

SPRING

- valve (Large)

1шт.

21

D54270

CAP

O-RING - gland

1шт.

Part of Valve Seal Kit, P/N A48463

1шт.

22

L33212

CARTRIDGE

O-RING - orifice plug

1шт.

23

131-30

LOCK NUT,1/4"-28, G8

NUT - light hex, self-locking, 1/4 inch NF

1шт.

A48463

SEAL

KIT - valve, Includes: Ref. 7, 10, 12, 21, and 22

1шт.
