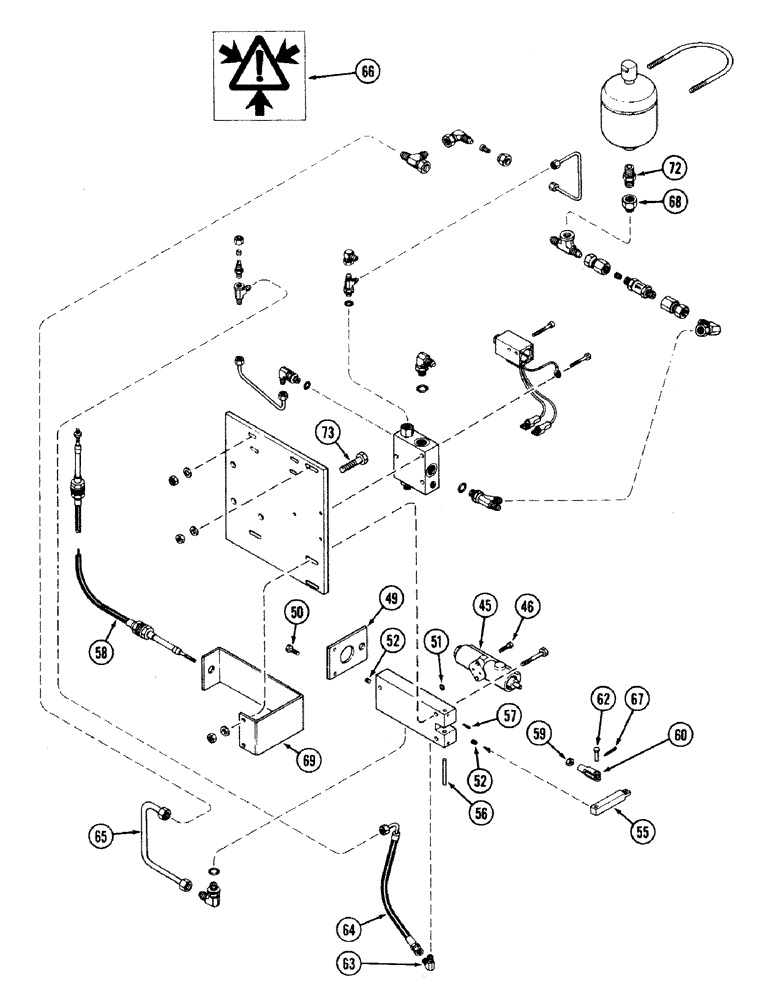

Запчасти Case IH 2594 (7-18) - EMERGENCY HAND BRAKE (07) - BRAKES

A160618

BRAKE

HAND BRAKE ATTACHMENT - emergency (Machinery item), Includes: Ref. 45 - 73 and 1 - 44 on Figure 7-16

1шт.

45

A147690

VALVE

ASSEMBLY - pressure regulator (See Figure: 7-22)

1шт.

46

61-33116

HEX SOC SCREW,5/16"-18 x 1"

SCREW, Hex Soc Hd, 5/16"-18 x 1"

2шт.

49

A149095

BRACKET

- cable mounting

1шт.

50

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

51

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk

2шт.

52

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- hex socket head, 1/8 inch PT

2шт.

55

A149096

LINK

- valve actuating

1шт.

56

A147859

PIN

- pivot, link

1шт.

57

138-317

LOCK PIN,1/8" x 5/8", Slotted

PIN, 1/8" x 5/8", Slotted

2шт.

58

A135243

CABLE

ASSEMBLY - control

1шт.

59

425-154

JAM NUT,Jam, 1/4"-28, G5

- hex, jam, 1/4 inch NF

1шт.

60

213-114

ADJUSTABLE CLEVIS,1/4" - 28

CLEVIS - adjustable, 1/4 inch NF

1шт.

62

427-4077

CLEVIS PIN,1/4" x .770"

PIN, CLEVIS, , Yoke 1/4" x .770"

1шт.

63

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree, 7/16-20 flare x 1/8 inch PT

1шт.

64

A160915

HOSE

ASSEMBLY - manifold drain

1шт.

65

A160560

TUBE

ASSEMBLY -, Serial Range: accumulator-manifold

1шт.

66

321-4675

DECAL

- pressure symbol

1шт.

67

432-412

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), 1/16" x 3/4"

1шт.

68

217-1008

ADAPTER,3/8" - 18 Male NPTF x 1/2" - 14 Female NPTF

REDUCER - 3/8 x 1/2 inch PT

1шт.

69

A160914

GUARD

- pressure valve

1шт.

72

217-1072

HYD CONNECTOR,1/2" - 14 NPTF

NIPPLE - hex, 1/2 PT x 1-7/8 inch

1шт.

73

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch, grade 5

3шт.
