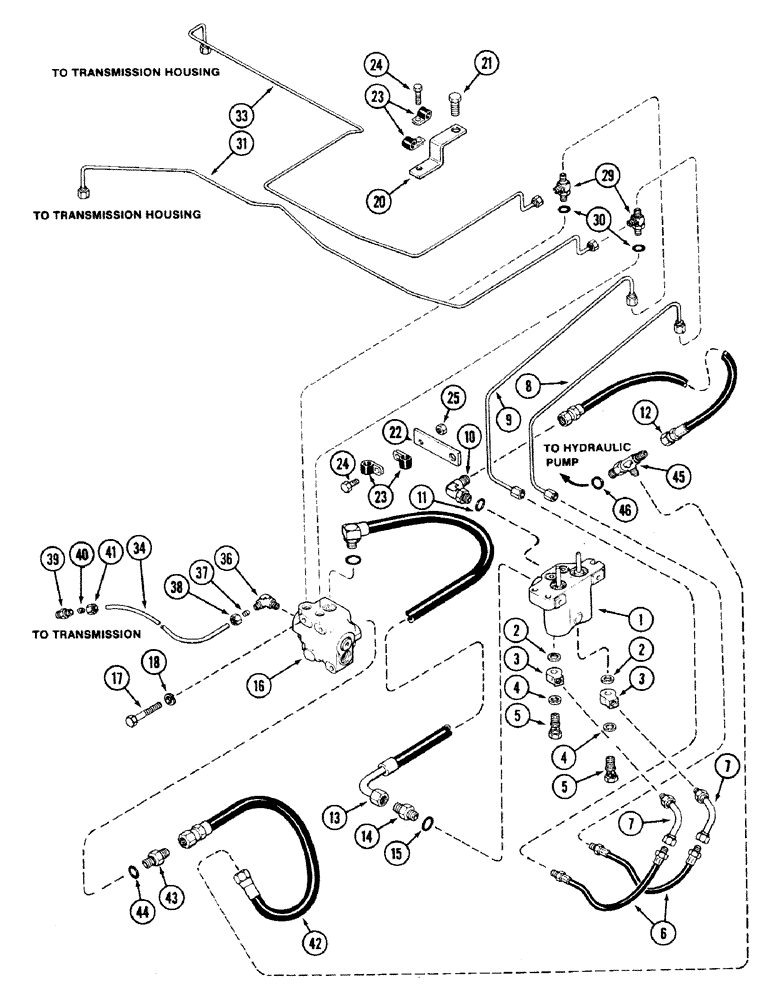

Запчасти Case IH 2594 (7-04) - BRAKE VALVES AND CIRCUITRY (07) - BRAKES

1

REF

INSTRUCTION

VALVE - brake, master power (See Figure: 7-12)

1шт.

2

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - inner, 1/2 inch ID, copper (Order L114099)

2шт.

3

A18531

FITTING

- brake tube banjo

2шт.

4

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- outer, 19/32 inch ID, copper

2шт.

5

A12864

BOLT

- tube fitting connection (Order 48165H)

2шт.

6

A164950

HYDRAULIC HOSE,0.25" ID x 15.50", SAE 100R1 per SAE J517

- Brake master cylinder outlet 0.25" ID x 15.50", SAE 100R1 per SAE J517

2шт.

7

A164949

TUBE

- brake master cylinder outlet

2шт.

8

A164955

TUBE ASSY.

TUBE - brake, right front

1шт.

9

A164956

TUBE ASSY.

TUBE - brake, left front

1шт.

10

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj o-ring boss, Includes: Ref. 11

1шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

12

A177851

HOSE,0.25" ID x 32.00", SAE 100R1, SAE J343, SAE J517

- brake valve to master valve 0.25" ID x 32.00", SAE 100R1, SAE J343, SAE J517

1шт.

13

A177852

HOSE

- drain, brake

1шт.

14

218-5359

HYD CONNECTOR,7/16"-20, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 7/16-20 flare x 3/4-16 inch o-ring boss, Includes: Ref. 15

1шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

16

REF

INSTRUCTION

VALVE ASSEMBLY - brake (See Figures: 7-8 and 7-10)

1шт.

17

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

2шт.

17

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

1шт.

18

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

20

A147791

CLAMP

BRACKET - tube clamps

2шт.

21

13-1012

BOLT,Hex, 5/8" - 11 x 3/4", Gr 5, Full Thd

1шт.

22

A147193

BRACKET

SUPPORT - brake tube clamp

1шт.

23

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- brake tubes

4шт.

24

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

2шт.

25

131-634

SPRING NUT,J, Ret, 3/8"-16

2шт.

29

218-5289

TEE,7/16" - 20 Male JIC x 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 7/16-20 inch flare branch x flare x adj o-ring boss, Includes: Ref. 30

2шт.

30

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

31

A164957

TUBE ASSY.

TUBE - brake, right rear

1шт.

33

A164958

TUBE ASSY.

TUBE - brake, left rear

1шт.

34

A75811

TUBE

- nylon, 3/8 inch O.D. x 34 inch (Order A167912 and, Serial Range: cut-length)

1шт.

36

222-2641

ELBOW,90 Degree, 17/32"-24 x 1/4" NPT, Comp

- 90 degree, compression, 3/8 tube OD x 1/4 PT, Includes: Refs. 37 and 38

1шт.

37

222-2611

SLEEVE

- flanged, 3/8 inch O.D. tube

1шт.

38

222-2601

NUT

NUT - hex, 3/8 tube O.D. x 17/21-24 inch

1шт.

39

222-2626

FITTING,17/32"-24 x 1/4" NPT, Comp

ADAPTER - compression, 3/8 tube O.D. x 1/4 inch PT, Includes: Refs. 40 and 41

1шт.

40

222-2611

SLEEVE

- flanged, 3/8 inch OD tube

1шт.

41

222-2601

NUT

NUT - hex, 3/8 tube O.D. x 17/21-24 inch

1шт.

42

A166499

HOSE

- pump to brake valve

1шт.

43

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x o-ring boss, Incl. Ref 44

1шт.

44

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

45

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 3/4-16 inch flare branch x flare x adj o-ring boss, Includes: Ref. 46

1шт.

46

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.
