Запчасти Case IH 2594 (7-02) - BRAKE PEDALS AND VALVE (07) - BRAKES

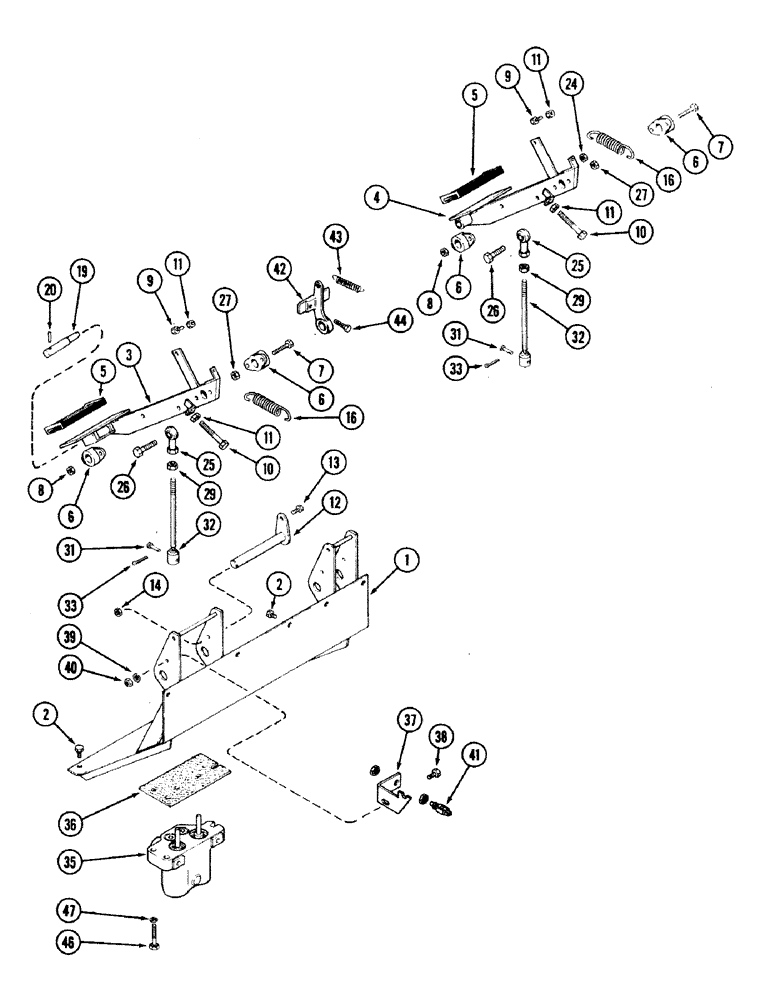

Схема запчастей Case IH 2594 - (7-02) - BRAKE PEDALS AND VALVE (07) - BRAKES
19
8
6
42
13
20
6
41
46
14
31
4
8
2
32
6
26
43
35
1
26
11
3
47
9
25
33
2
10
32
16
27
37
38
11
7
5
6
44
27
9
11
24
33
25
31
10
29
12
5
11
36
7
40
29
16
39

Артикул

Название

Примечание

Количество

1

A143559

BRACKET

COVER - brake and clutch

1шт.

2

281-44910

SELF-TAP SCREW,Hex Wash Hd, 3/8" x 5/8"

SCREW - self- tapping, hex washer head, 3/8 NC x 5/8 inch

8шт.

3

A164687

PEDAL

- brake, right

1шт.

4

A164688

PEDAL

- brake, left

1шт.

5

F9197

PAD

COVER - pedal, rubber

2шт.

6

A77310

SUPPORT,0.754" ID x 1.375" OD x 0.81"

- pivot, foot pedal

4шт.

7

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

4шт.

8

131-1281

LOCK NUT,Jam, 5/16"-18

NUT - hex, jam, self-locking, 5/16 inch NC

4шт.

9

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

(Upper stop) Hex, 5/16"-18 x 7/8", G5, Full Thd

2шт.

10

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

- hex, 5/16 NC x 2-3/4 inch (Lower stop)

2шт.

11

425-145

JAM NUT,Jam, 5/16"-18, G5

4шт.

12

A59452

SHAFT

- brake pedal

1шт.

13

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

14

425-145

JAM NUT,Jam, 5/16"-18, G5

1шт.

16

A160874

SPRING

- pedal return

2шт.

19

A164694

PIN

- interlock, brake pedal

1шт.

20

138-163

LOCK PIN,5/16" x 2 1/2", Slotted

PIN, 5/16" x 2 1/2", Slotted

1шт.

25

A32398

BALL JOINT

ROD END - female

2шт.

26

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

27

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

3шт.

29

425-116

NUT,3/8" - 24, Gr 5

Hex 3/8"-24, G5

2шт.

31

A67313

PIN

- clevis

2шт.

32

A160653

ROD

- brake

2шт.

33

432-412

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), 1/16" x 3/4"

2шт.

35

REF

INSTRUCTION

VALVE - brake, master power (See Figure: 7-12)

1шт.

36

A163161

GASKET

- brake master cylinder

1шт.

37

A169537

BRACKET

- differential lock switch

1шт.

38

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

39

493-11033

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

1шт.

40

425-145

JAM NUT,Jam, 5/16"-18, G5

1шт.

41

A163160

SWITCH

- brake, differential lock (See Figure: 4-2)

1шт.

42

A169728

LEVER

- differential lock return

1шт.

43

A164415

SPRING

- lever return

1шт.

44

A67294

BOLT

- adjusting, control lever

1шт.

46

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

47

93-11039

LOCK WASHER,Ext-Int Tooth, 3/8"

WASHER - lock, 3/8 inch internal - external shakeproof

3шт.
