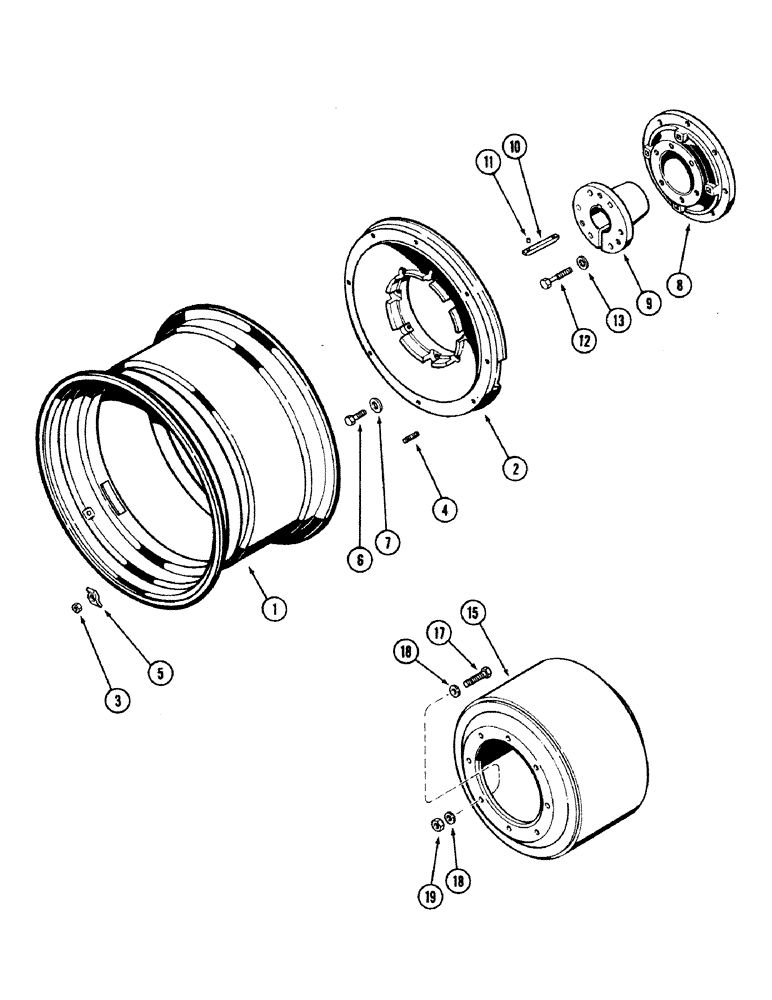

Запчасти Case IH 2594 (6-078) - DUAL REAR WHEELS, CAST WITH 32 INCH RIMS (06) - POWER TRAIN

A67594

ATTACHMENT - wheel (Used with 24.5 x 32 tire) (Machinery item), Includes: Refs. 1 - 6

1шт.

A67554

ATTACHMENT - wheel (Used with 24.5 x 32 tire) (Machinery item), Includes: Refs. 1 - 6

1шт.

A67624

ATTACHMENT - wheel (Used with 24.5 x 32 tire) (Machinery item), Includes: Refs. 1 - 6

1шт.

A67556

ATTACHMENT - wheel (Used with 24.5 x 32 tire) (Machinery item), Includes: Refs. 1 - 6

1шт.

1

A63807

RIM

- rear wheel (Used with 24.5 x 32 tire)

2шт.

2

A145461

FLANGE

WHEEL - rear

2шт.

3

A27183

NUT

- hex, 5/8 inch NC

16шт.

4

A60047

STUD

- clamp, Serial Range: rim-wheel

16шт.

5

A166501

CLAMP

-, Serial Range: wheel-rim

16шт.

6

426-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex, 3/4 NC x 2-1/2 inch, Grade 8

16шт.

7

496-31081

WASHER,13/16" x 1 1/2" x .219", HDN

- flat, 3/4 inch

16шт.

8

A145322

HUB

- wheel, tapered

2шт.

9

A63805

BUSHING

- wheel, 3-7/8 inch ID

2шт.

10

A63219

KEY

- axle, 3/4 x 6 inch

2шт.

11

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

2шт.

12

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - hex, 3/4 NC x 4-1/2 inch (Order 1533578C1)

12шт.

13

496-31081

WASHER,13/16" x 1 1/2" x .219", HDN

- flat, 3/4 inch

12шт.

15

A149059

BUSHING

SPACER - dual wheel

2шт.

17

1348513C1

BOLT

- hex, 3/4 NC x 2-1/4 inch, grade 8

16шт.

18

496-31081

WASHER,13/16" x 1 1/2" x .219", HDN

- flat, 3/4 inch

32шт.

19

429-1012

NUT,3/4"-10, G8

- hex, 3/4 inch NC, grade 8

16шт.
