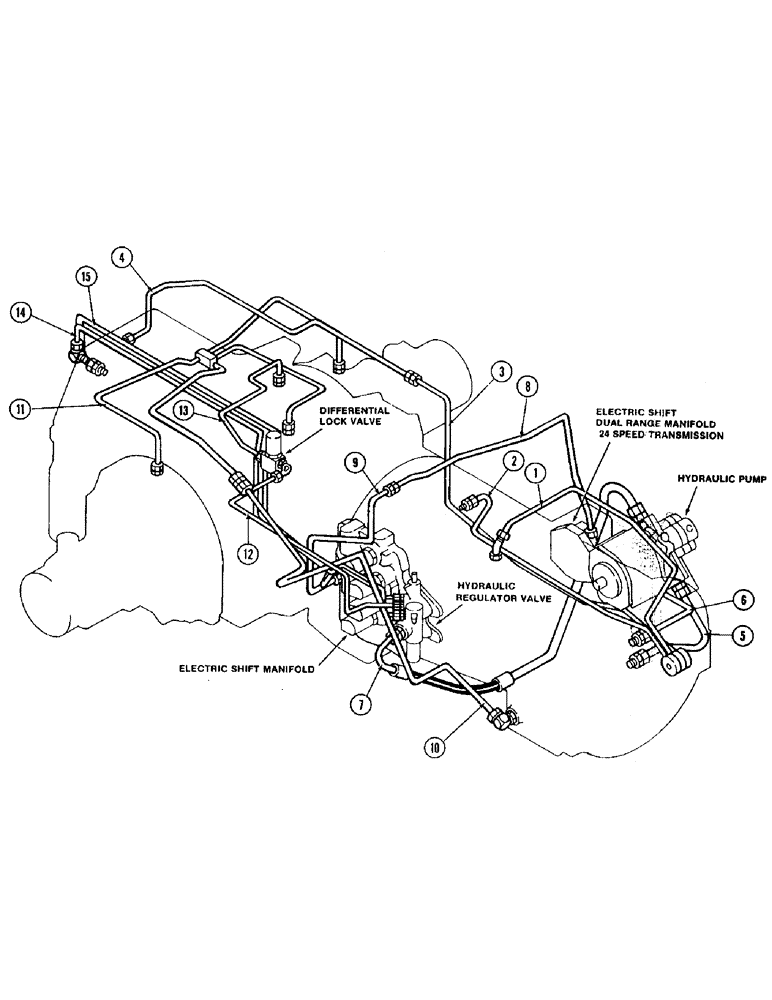

Запчасти Case IH 2594 (1-10) - PICTORIAL INDEX, MAIN HYDRAULICS (00) - PICTORIAL INDEX

1

Dual Range Lubrication Tube (24 Speed Transmission), Page 8-3

1шт.

2

(C1) Clutch Lubrication Tube, Page 8-3

1шт.

3

PTO Lubrication Tube (Front), Page 8-3

1шт.

4

PTO Lubrication Tube (Rear), Page 8-3

1шт.

5

Hydraulic Pump Suction Tube, Page 8-5 Through 8-11

1шт.

6

Steering Pump Suction Tube, Page 8-5 Trough 8-11

1шт.

7

Hydraulic Pump To Regulator Valve Tube And Hose, Page 8-5 Through 8-11

1шт.

8

Dual Range Left Tube (24 Speed Transmission), Page 6-5

1шт.

9

Dual Range Right Tube (24 Speed Transmission), Page 6-5

1шт.

10

Planetary Lubrication Tube (Front), Page 6-71

1шт.

11

Planetary Lubrication Tube Assembly (Rear), Page 6-71

1шт.

12

Regulatory Valve To Differential Lock Valve Tube, Page 7-7

1шт.

13

Differential Lock Valve To Transmission Tube, Page 7-7

1шт.

14

Regulator Valve To PTO Clutch Tube, Page 8-3

1шт.

15

Regulator Valve To PTO Brake Tube, Page 8-3

1шт.
