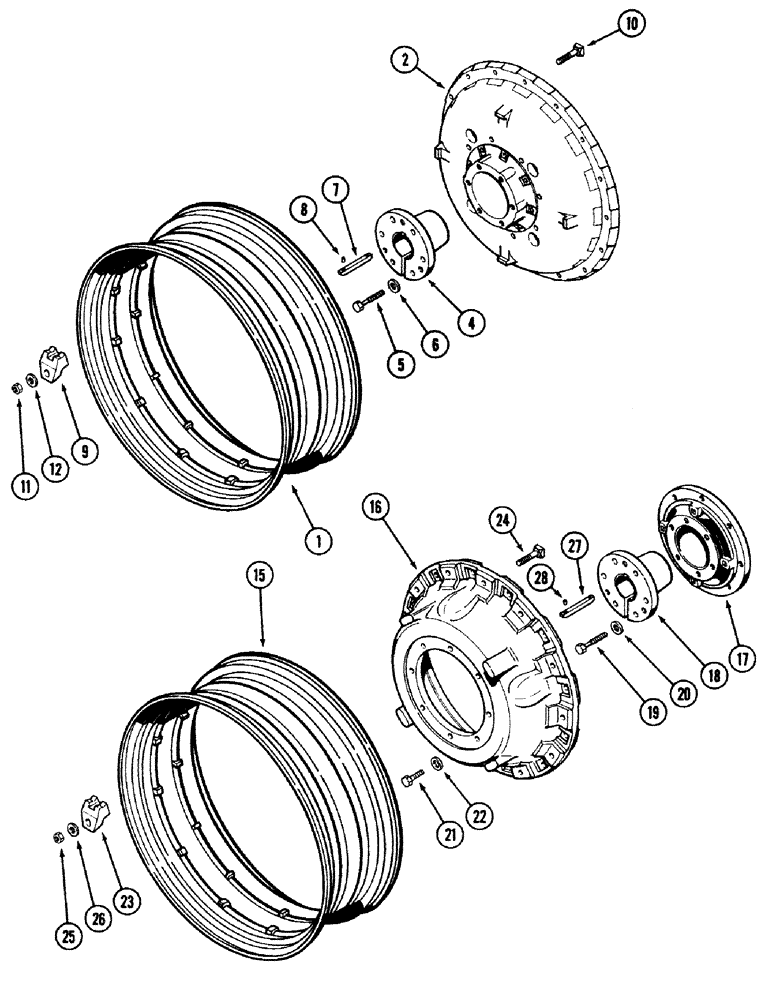

Запчасти Case IH 2594 (6-074) - REAR WHEELS, SOLID CAST WITH 38 INCH RIMS (06) - POWER TRAIN

1

1334480C1

RIM

- rear wheel (Used with 18.4 x 38 tire) (Replaces A160971)

2шт.

1

1334481C1

RIM

- rear wheel (Used with 20.8 x 38 tire) (Replaces A160972)

2шт.

2

A161818

WHEEL

- rear

2шт.

4

A63805

BUSHING

- wheel, 3-7/8 inch ID

2шт.

5

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - hex, 3/4 NC x 4-1/2 inch (Order 1533578C1)

12шт.

6

496-31081

WASHER,13/16" x 1 1/2" x .219", HDN

- flat, 3/4 inch

12шт.

7

A63219

KEY

- axle, 3/4 x 6 inch

2шт.

8

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

2шт.

9

A57654

CLAMP

- adjusting, double ramp

32шт.

10

117-618

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

- square head, 3/4 NC x 3-1/2 inch, grade 5

32шт.

11

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

32шт.

12

A161560

WASHER,19.84mm ID x 31.7mm OD x 4.6mm Thk

- flat, wheel

32шт.

15

1334480C1

RIM

- rear wheel (Used with 18.4 x 38 tire) (Replaces A160971), universal cast with 38 inch rims

2шт.

15

1334481C1

RIM

- rear wheel (Used with 20.8 x 38 tire) (Replaces A160972), universal cast with 38 inch rims

2шт.

16

A145464

WHEEL

- rear, universal cast with 38 inch rims

2шт.

17

A145322

HUB

- wheel, tapered, universal cast with 38 inch rims

2шт.

18

A63805

BUSHING

- wheel, 3-7/8 inch ID, universal cast with 38 inch rims

2шт.

19

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - hex, 3/4 NC x 4-1/2 inch (Order 1533578C1), universal cast with 38 inch rims

12шт.

20

496-31081

WASHER,13/16" x 1 1/2" x .219", HDN

- flat, 3/4 inch, universal cast with 38 inch rims

12шт.

21

326-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

Universal cast with 38 inch rims Hex, 3/4"-10 x 2 3/4", G8

16шт.

22

496-31081

WASHER,13/16" x 1 1/2" x .219", HDN

- flat, 3/4 inch, universal cast with 38 inch rims

16шт.

23

A57654

CLAMP

- adjusting, double ramp, universal cast with 38 inch rims

32шт.

24

117-618

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

- square head, 3/4 NC x 3-1/2 inch, grade 5, universal cast with 38 inch rims

32шт.

25

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

Universal cast with 38 inch rims 3/4"-10, G5, Hvy

32шт.

26

A161560

WASHER,19.84mm ID x 31.7mm OD x 4.6mm Thk

- flat, wheel, universal cast with 38 inch rims

32шт.

27

A63219

KEY

- axle, 3/4 x 6 inch, universal cast with 38 inch rims

2шт.

28

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, , Universal cast with 38 inch rims 1/4" x 1/2", Slotted

2шт.
