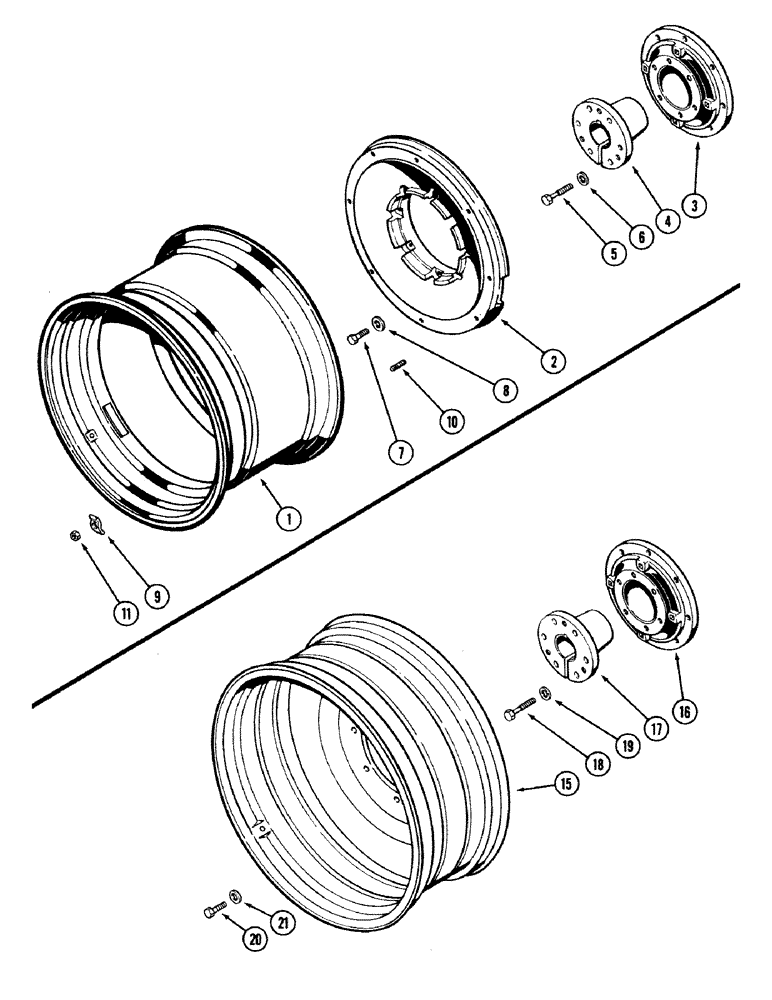

Запчасти Case IH 2594 (6-072) - REAR WHEELS, CAST WITH 32 INCH RIMS (06) - POWER TRAIN

1

A63807

RIM

- rear wheel (Used with 24.5 x 32 tire)

2шт.

2

A145461

FLANGE

WHEEL - rear, cast

2шт.

3

A145322

HUB

- wheel, tapered

2шт.

4

A63805

BUSHING

- wheel, 3-7/8 inch ID

2шт.

5

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - hex, 3/4 NC x 4-1/2 inch

12шт.

6

496-31081

WASHER,13/16" x 1 1/2" x .219", HDN

- flat, 3/4 inch

12шт.

7

426-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex, 3/4 NC x 2-1/2 inch, grade 8

16шт.

8

496-31081

WASHER,13/16" x 1 1/2" x .219", HDN

- flat, 3/4 inch

16шт.

9

A166501

CLAMP

-, Serial Range: wheel-rim

16шт.

10

A60047

STUD

- clamp, Serial Range: rim-wheel

16шт.

11

A27183

NUT

- hex, 5/8 inch NC

16шт.

15

A145462

RIM

- rear wheel (Used with 30.5 x 32 tire), stamped with 32 inch rims

2шт.

16

A145322

HUB

- wheel, tapered, stamped with 32 inch rims

2шт.

17

A63805

BUSHING

- wheel, 3-7/8 inch ID, stamped with 32 inch rims

2шт.

18

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - hex, 3/4 NC x 4-1/2 inch, stamped with 32 inch rims

12шт.

19

496-31081

WASHER,13/16" x 1 1/2" x .219", HDN

- flat, 3/4 inch, stamped with 32 inch rims

12шт.

20

426-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex, 3/4 NC x 2-1/2 inch, grade 8, stamped with 32 inch rims

16шт.

21

496-31081

WASHER,13/16" x 1 1/2" x .219", HDN

- flat, 3/4 inch, stamped with 32 inch rims

16шт.
