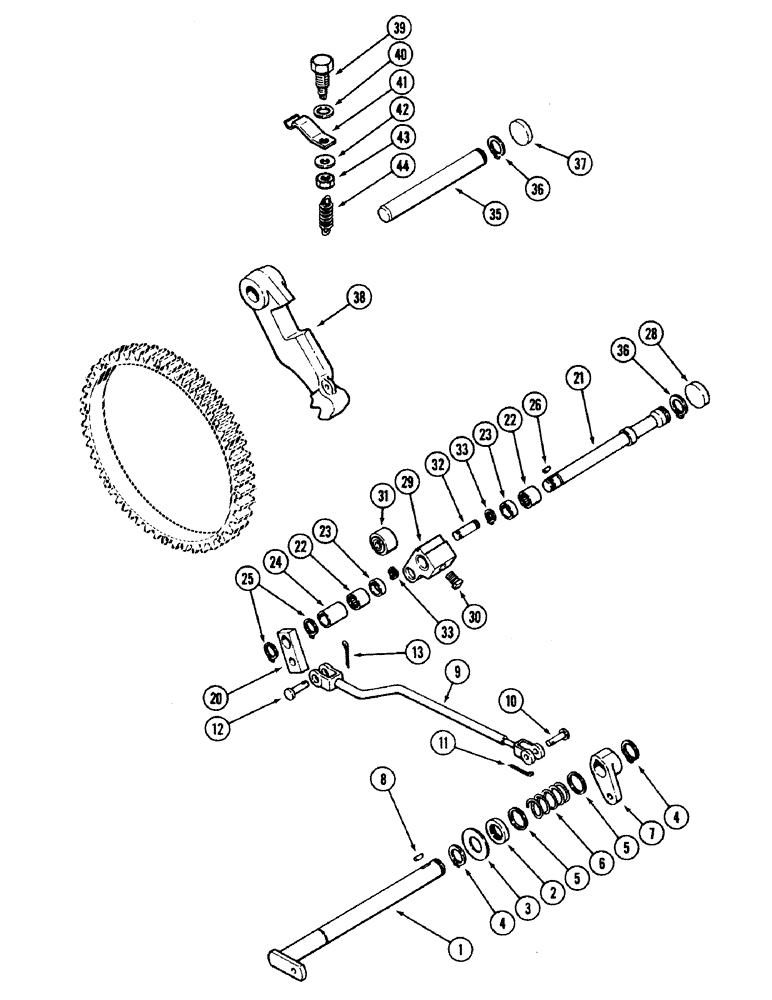

Запчасти Case IH 2594 (6-060) - DIFFERENTIAL, PARK LOCK (06) - POWER TRAIN

1

A148347

LEVER

- park lock

1шт.

2

A55855

OIL SEAL

- oil (Order 381721R91)

1шт.

3

95-11106

WASHER,1" x 2" x .134"

- flat, 1-1/16 x 2 x 1/8 inch

1шт.

4

100-11100

SNAP RING,#100, Ext

Ring, Snap, #100, Ext

2шт.

5

L31557

WASHER

- spring retaining

2шт.

6

A144207

SPRING

- compression

1шт.

7

A148362

LEVER

- park lock, front

1шт.

8

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

1шт.

9

A148361

ROD

- park lock

1шт.

10

427-7119

CLEVIS PIN,11.13mm OD x 30.23mm L

PIN - clevis, 7/16 inch

1шт.

11

432-616

COTTER PIN,3/32" x 1"

PIN, SPLIT (COTTER), 3/32" x 1"

1шт.

12

427-8136

CLEVIS PIN,1/2" x 1.360"

PIN - clevis, 1/2 x 1-23/64 inch, hardened

1шт.

13

432-816

COTTER PIN,1/8" x 1"

PIN SPLIT (COTTER), 1/8" x 1"

1шт.

20

A153618

LEVER

- park lock, center

1шт.

21

A153619

SHAFT

- park lock, center

1шт.

22

14228

NEEDLE BEARING,Needle, 19.05mm ID x 25.4mm OD x 19.05mm W

BEARING - needle, center shaft

2шт.

23

A144847

SPACER

- bearing locating, short

2шт.

24

A153620

SPACER

- bearing locating, long

1шт.

25

100-1175

SNAP RING,#75, Ext

Ring, Snap, #75, Ext

2шт.

26

126-106

WOODRUFF KEY,# 213, 1/8" x 3/8", HT

KEY - Woodruff, No. 213

1шт.

28

41-1624

PLUG,Cup, 1 1/2", Stainless

- cup, 1-1/2 inch

1шт.

29

A157308

LEVER

- park lock, cam carrier

1шт.

30

85-55014

SET SCREW,Sq Hd, 1/2"-13 x 7/8"

SCREW - square head 1/2 NC x 7/8 inch

1шт.

31

A157227

ROLLER

CAM - follower, standard

1шт.

31

1349167C1

ROLLER

CAM - following, oversize, 1.40 inch O.D.

1шт.

31

1349168C1

ROLLER

CAM - following, oversize, 1.42 inch O.D.

1шт.

31

1349169C1

ROLLER

CAM - following, oversize, 1.44 inch O.D.

1шт.

31

1349170C1

ROLLER

CAM - following, oversize, 1.46 inch O.D.

1шт.

31

1349171C1

ROLLER

CAM - following, oversize, 1.48 inch O.D.

1шт.

31

1349172C1

ROLLER

CAM - following, oversize, 1.50 inch O.D.

1шт.

31

1349173C1

ROLLER

CAM - following, oversize, 1.52 inch O.D.

1шт.

32

A157230

PIN

- cam follower

1шт.

33

A39489

SNAP RING,#43, Ext

RING snap, #43, Ext

2шт.

35

A63241

SHAFT

- park lock, rear

1шт.

36

100-11100

SNAP RING,#100, Ext

Ring, Snap, #100, Ext

2шт.

37

41-1622

PLUG,Cup, 1 3/8", Stainless

- cup, 1-3/8 inch

1шт.

38

A148273

LEVER

- park lock engaging

1шт.

39

A144206

RETAINER

- spring detent

1шт.

40

A58608

GASKET

- retainer

1шт.

41

A144413

SPRING

- park lock detent

1шт.

42

95-11053

WASHER,1/2"

- flat, 17/32 x 1-1/16 x 3/32 inch

1шт.

43

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

1шт.

44

A144541

SPRING

- extension, engaging lever

1шт.
