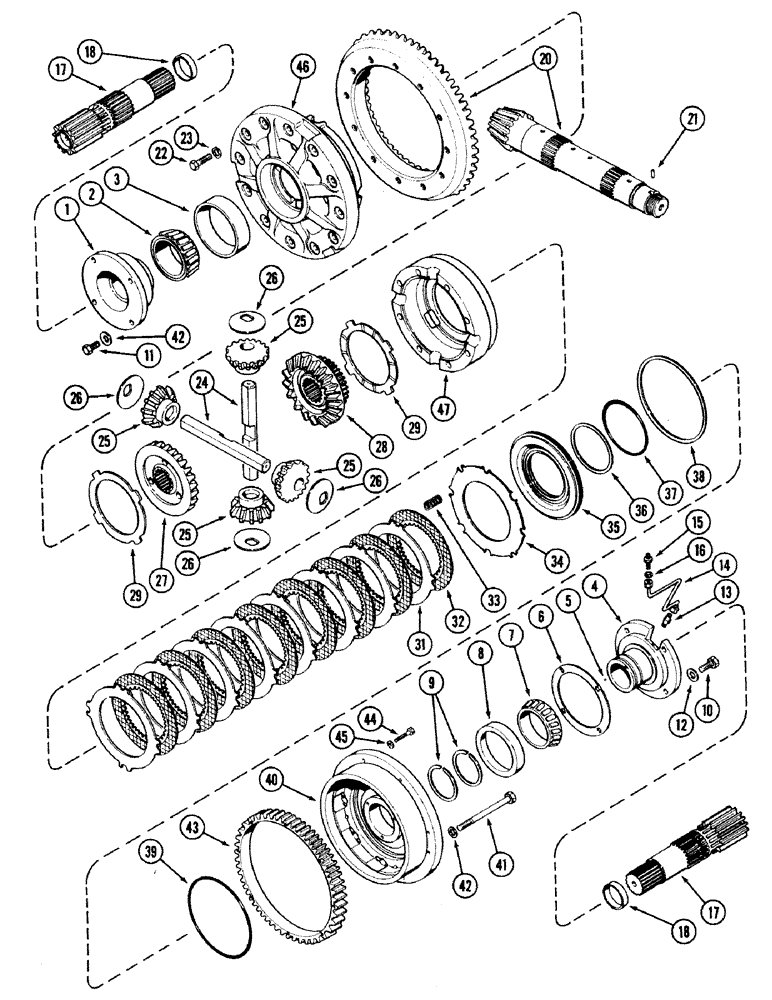

Запчасти Case IH 2594 (6-052) - DIFFERENTIAL, BEARING CARRIER, CAGE, SIDE GEAR AND SHAFT, PRIOR TO TRANSMISSION SERIAL NO. 16260432 (06) - POWER TRAIN

1

A140049

CARRIER

- differential bearing, right

1шт.

2

A32772

ROLLER BEARING,85.75 mm ID x 142.164 mm OD x 34.13, 43.07 mm

CONE - bearing, ring gear cage, right (Order 971533R91)

1шт.

3

A32773

ROLLER BEARING,85.75 mm ID x 142.164 mm OD x 43.07 mm

CUP - bearing, ring gear cage, right (Order 971522R1)

1шт.

4

A148761

CARRIER

ASSEMBLY - differential bearing, left, Includes: Ref. 5

1шт.

5

211-204

BALL

- 3/16 inch, grade 200, chrome alloy steel

1шт.

6

A63186

SHIM,.015" Thk

Brg. carrier .015" Thk

1шт.

6

A63187

SHIM,.007" Thk

Brg. carrier .007" Thk

1шт.

6

A63188

SHIM,.005" Thk

Brg. carrier .005" Thk

1шт.

7

A63185

ROLLER BEARING,85 mm ID x 130 mm OD x 24, 30.20 mm

CONE - bearing, differential lock cage, left (Order 622336C1)

1шт.

8

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

CUP - bearing, differential lock cage, left

1шт.

9

A63192

RING

- seal, bearing carrier

2шт.

10

413-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5

- hex, 1/2 NC x 1-3/8 inch

4шт.

11

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

12

A148376

WASHER

- flat, hardened

8шт.

13

222-91

ELBOW,45 Degree, 1/2"-24 x 1/8" NPT

- 45 degree, 1/4 tube 1/2-24 thread x 1/8 inch PT

1шт.

14

A64877

TUBE

- oil, differential clutch lock

1шт.

15

A154119

FITTING

- bulkhead

1шт.

16

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

17

A179189

SHAFT

- differential, with sun gear

2шт.

18

A67141

SPACER

- retaining

2шт.

20

A168191

GEAR-SET

GEAR SET - pinion and spiral bevel (Matched set), (2.126 on Shaft)

1шт.

21

138-2076

PIN,5/32" x 1/2", Coiled

1шт.

22

326-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

12шт.

23

A150672

WASHER

- flat, hardened

12шт.

24

A154536

PIN

- differential pinion (Order A168106 and A179590)

2шт.

25

A179575

PINION

GEAR - pinion, bevel

4шт.

26

A179590

THRUST WASHER,32.05mm ID x 80mm OD x 2.39mm Thk

- thrust

4шт.

27

A154890

GEAR

- bevel side, right

1шт.

28

A154821

GEAR WHEEL

GEAR - bevel side, left

1шт.

29

A154816

WASHER,137.92mm ID x 191.52mm OD x 2.39mm Thk

- thrust, side gear

2шт.

31

A67115

PLATE

- differential clutch lock, steel

8шт.

32

A136340

PLATE

- differential clutch lock, sintered

8шт.

33

A138887

SPRING

- return, differential lock piston

4шт.

34

A136339

PLATE

- differential lock piston return spring

1шт.

35

A146670

PISTON

- differential lock

1шт.

36

A146683

RING

- sealing, 4-15/32 inch ID

1шт.

37

A150754

O-RING,4.718" ID x 0.107"

- 4-11/16 inch ID

1шт.

38

A146682

RING

- sealing, 8-9/32 inch O.D.

1шт.

39

A150753

O-RING,7.84" ID x 0.107"

- 7-7/8 inch O.D.

1шт.

40

A144582

CAGE

- differential lock

1шт.

41

26-10108

BOLT,Hex, 5/8" - 11 x 6-3/4", Gr 8

- hex, 5/8 NC x 6-3/4 inch

8шт.

42

A64303

WASHER

- flat, hardened

8шт.

43

A157139

GEAR

- ring, park lock

1шт.

44

326-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

- hex, 3/8 NC x 1-3/4 inch, grade 8

8шт.

45

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- cage bolt

8шт.

A156996

CAGE

ASSEMBLY - differential, Includes: Refs. 46 and 47

1шт.

46

NSS

NOT SOLD SEPARAT

CAGE - differential ring gear

1шт.

47

NSS

NOT SOLD SEPARAT

CAGE - differential, intermediate

1шт.
