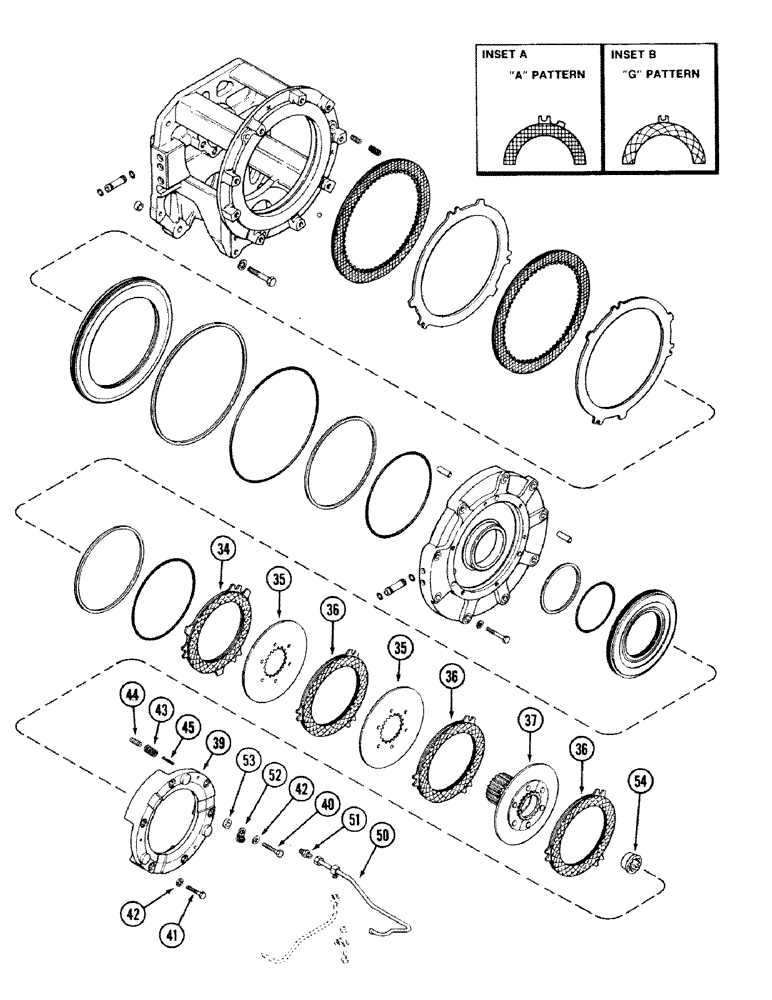

Запчасти Case IH 2594 (6-036) - TRANSMISSION, (C1) AND (C4) CLUTCHES, TRANSMISSION SERIAL NO. 16260432 AND AFTER, (CONT) (06) - POWER TRAIN

34

A142361

PLATE

- (C1) clutch, with tabs ("A" type groove pattern, see inset A) (Order A168484)

1шт.

"A" and "G" groove pattern are not to be mixed. Ref. 34 and 36 must have same groove pattern. Order parts carefully.

1шт.

34

A168484

PLATE

- (C1) clutch, with tabs ("G" type groove pattern, see inset B)

1шт.

"A" and "G" groove pattern are not to be mixed. Ref. 34 and 36 must have same groove pattern. Order parts carefully.

1шт.

35

A182507

PLATE

- steel, (C1) clutch (Replaces A152112)

2шт.

36

A142360

PLATE

- (C1) clutch, without tabs ("A" type groove pattern, see inset A) (Order A168483)

3шт.

36

A168483

PLATE

- (C1) clutch, without tabs ("G" type groove pattern, see inset B)

3шт.

"A" and "G" groove pattern are not to be mixed. Ref. 34 and 36 must have same groove pattern. Order parts carefully.

1шт.

37

A182523

GEAR

PLATE ASSEMBLY - sun reaction, (C1) clutch (Replaces A168203)

1шт.

39

A156921

PLATE

- (C1) reaction

1шт.

40

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch (12 speed transmission)

1шт.

41

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

(12 speed transmission) Hex, 3/8"-16 x 2 1/4", G5

5шт.

41

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

(24 speed transmission) Hex, 3/8"-16 x 2 1/4", G5

6шт.

42

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- hardened

6шт.

43

A142612

SPRING

- return, (C1) clutch

3шт.

44

A142613

SPRING

- return, (C1) clutch

3шт.

45

138-319

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

3шт.

50

A150622

TUBE

- lubrication (C1) clutch (12 speed transmission)

1шт.

51

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - straight, 9/16-18 flare x 1/4 inch PT

1шт.

52

49845

CLAMP

- tube

1шт.

53

A136208

SPACER

- tube clamp

1шт.

54

A76482

BUSHING,20T

- front, input shaft

1шт.
