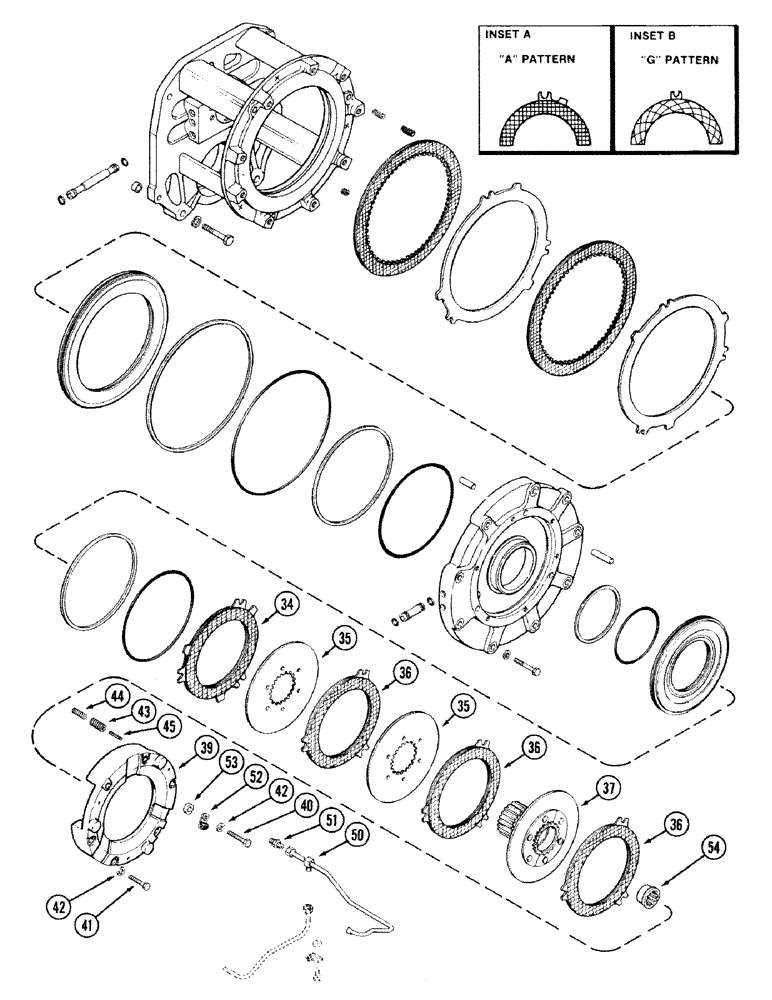

Запчасти Case IH 2594 (6-032) - TRANSMISSION, (C1) AND (C4) CLUTCHES, PRIOR TO TRANSMISSION SERIAL NO. 16260432, (CONT) (06) - POWER TRAIN

34

A142361

PLATE

- (C1) clutch, with tabs ("A" type groove pattern, see inset A) (Order A168484)

1шт.

34

A168484

PLATE

- (C1) clutch, with tabs ("G" type groove pattern, see inset B)

1шт.

35

A182507

PLATE

- steel, (C1) clutch, without tabs ("A" type groove pattern, see inset A) (Order A168483)

3шт.

"A" and "G" groove pattern are not to be mixed. Ref. 34 and 36 must have same groove pattern. Order parts carefully.

1шт.

36

A168483

PLATE

- (C1) clutch, without tabs ("G" type groove pattern, see inset B)

3шт.

"A" and "G" groove pattern are not to be mixed. Ref. 34 and 36 must have same groove pattern. Order parts carefully.

1шт.

37

A152113

PINION

PLATE ASSEMBLY - sun reaction, (C1) clutch

1шт.

39

A156921

PLATE

- (C1) reaction

1шт.

40

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

1шт.

41

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

5шт.

42

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- hardened

6шт.

43

A142612

SPRING

- return, (C1) clutch

3шт.

44

A142613

SPRING

- return, (C1) clutch

3шт.

45

138-319

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

3шт.

50

A150622

TUBE

- lubrication (C1) clutch (12 speed transmission)

1шт.

51

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - straight, 9/16-18 flare x 1/4 inch PT

1шт.

52

49845

CLAMP

- tube

1шт.

53

A136208

SPACER

- tube clamp

1шт.

54

A76482

BUSHING,20T

- front, input shaft

1шт.
