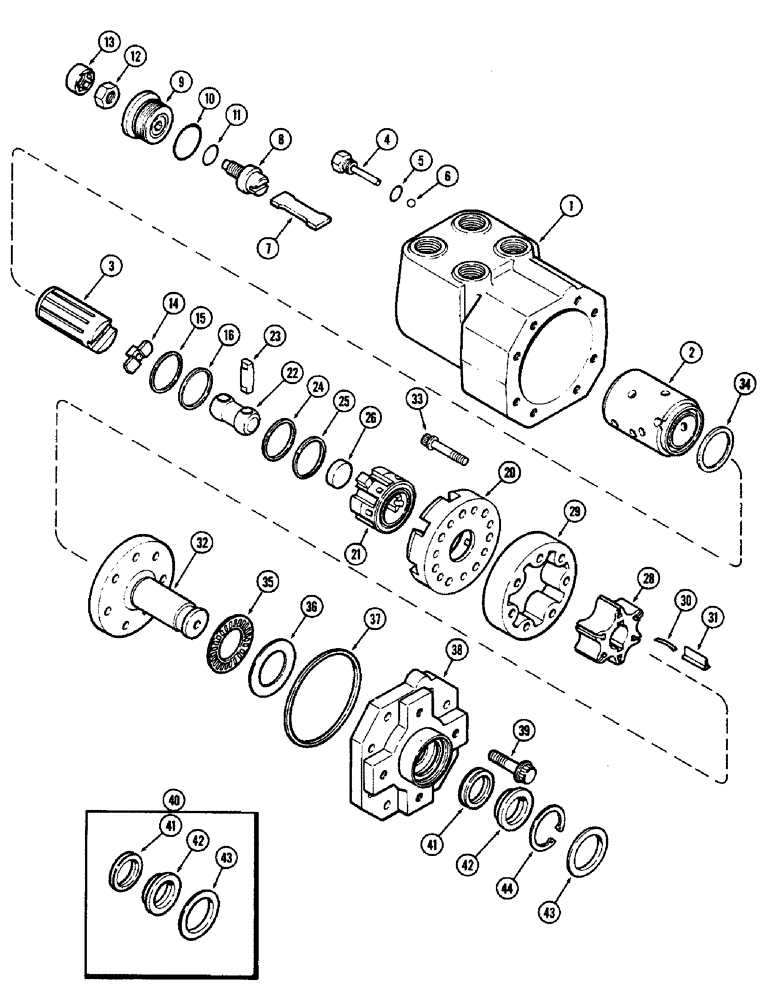

Запчасти Case IH 2590 (5-156) - HYDROSTATIC STEERING PUMP (05) - STEERING

A145863

PUMP

ASSEMBLY - new, Includes: Refs. 1 - 36

1шт.

A47842

PUMP

2590, Reman For New P/N A145863, N.A. Only

1шт.

CORE

CORE-A/C COMPRESSOR

Return Number, For N.A. Only

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - housing

1шт.

2

NSS

NOT SOLD SEPARAT

SLEEVE - valve

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

4

A47019

PLUG

AND PIN ASSEMBLY, Includes: Ref. 5

1шт.

5

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

6

A47018

BALL

- 9/32" (7.11 MM) diameter

1шт.

7

A45196

FAN

BLADE - torsion

2шт.

8

A45193

ADJUSTMENT SCREW,3/8" - 24 x 1.44"

SCREW - pump adjusting

1шт.

9

A47006

PLUG

- pump

1шт.

10

A47005

O-RING,1.053" ID

- 1-3/64 x 1-11/64 x 1/8" (26.67 x 29.72 x 3.5 MM)

1шт.

11

A45195

O-RING,0.556" ID x 0.073"

- 35/64 x 5/8 x 47/64" (13.97 x 15.82 x 1.85 MM)

1шт.

12

86585245

SPECIAL NUT,JAM, 5/8" - 18

- 3/8"-24 hex jam

1шт.

13

A47007

CAP

- pump

1шт.

14

A47020

RING

- drive (Replaces A47668)

1шт.

15

A47421

SEALING RING

RING ASSEMBLY - seal (Replaces A47002 and A47003)

1шт.

A47419

MANIFOLD

ASSEMBLY - (Replaces A47015), Includes: Refs. 20 and 21

1шт.

20

NSS

NOT SOLD SEPARAT

MANIFOLD - (Order A47419)

1шт.

21

NSS

NOT SOLD SEPARAT

COMMUTATOR - (Order A47419)

1шт.

22

A47014

LINK

- drive

1шт.

23

F19636

PIN

- link

2шт.

24

A47421

SEALING RING

RING ASSEMBLY - seal (Replaces A47002 and A47003)

1шт.

26

A47021

BUSHING

SPACER - 47/64" diameter x 15/64" width (18.77 x 5.84 MM)

1шт.

A47013

ROTOR

SET, Includes: Refs. 28 - 31

1шт.

28

NSS

NOT SOLD SEPARAT

ROTOR - (Order A47013)

1шт.

29

NSS

NOT SOLD SEPARAT

STATOR - (Order A47013)

1шт.

30

A43412

SPRING

- vane

6шт.

31

A43413

RING, PISTON

VANE - pump

6шт.

32

A47009

SHAFT

- input

1шт.

33

A47000

SCREW,1/4" x 1 1/8"

- 1/4 x 1-1/4" NF, 12 point cap

7шт.

34

A160850

WASHER

- 2-1/4 x 2-13/16 x 1/13" hardened (57.15 x 71.44 x 0.79 MM)

1шт.

35

T36441

THRUST BEARING,1.127" ID x 1.74" OD x 0.0781"

BEARING - thrust needle

1шт.

A47670

KIT

- thrust washers (Replaces A47001), Includes: Ref. 36

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - 0.035" (0.89 MM)

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - 0.041" (1.02 MM)

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - 0.047" (1.19 MM)

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - 0.053" (1.35 MM)

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - 0.059" (1.50 MM)

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - 0.065" (1.65 MM)

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - 0.071" (1.80 MM)

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - 0.077" (1.96 MM)

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - 0.083" (1.22 MM)

1шт.

37

A47004

RING

- seal, 2-31/32 x 3-3/64 x 1/16" (75.69 x 77.34 x 1.65 MM)

1шт.

38

A47016

COVER

- pump upper

1шт.

39

A45197

12 PT SCREW,1/4" - 28 x 0.875"

SCREW - 1/4 x 1" NF, 12 point cap

8шт.

40

A47038

SEAL KIT,Pump Shaft

KIT - seal, cover, Includes: Refs. 41 - 43

1шт.

41

NSS

NOT SOLD SEPARAT

SEAL - shaft

1шт.

42

NSS

NOT SOLD SEPARAT

SEAL - spacer

1шт.

43

D70586

SEAL,26.29mm ID x 41.66mm OD x 1.45mm Thk

- shaft

1шт.

44

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125

1шт.
