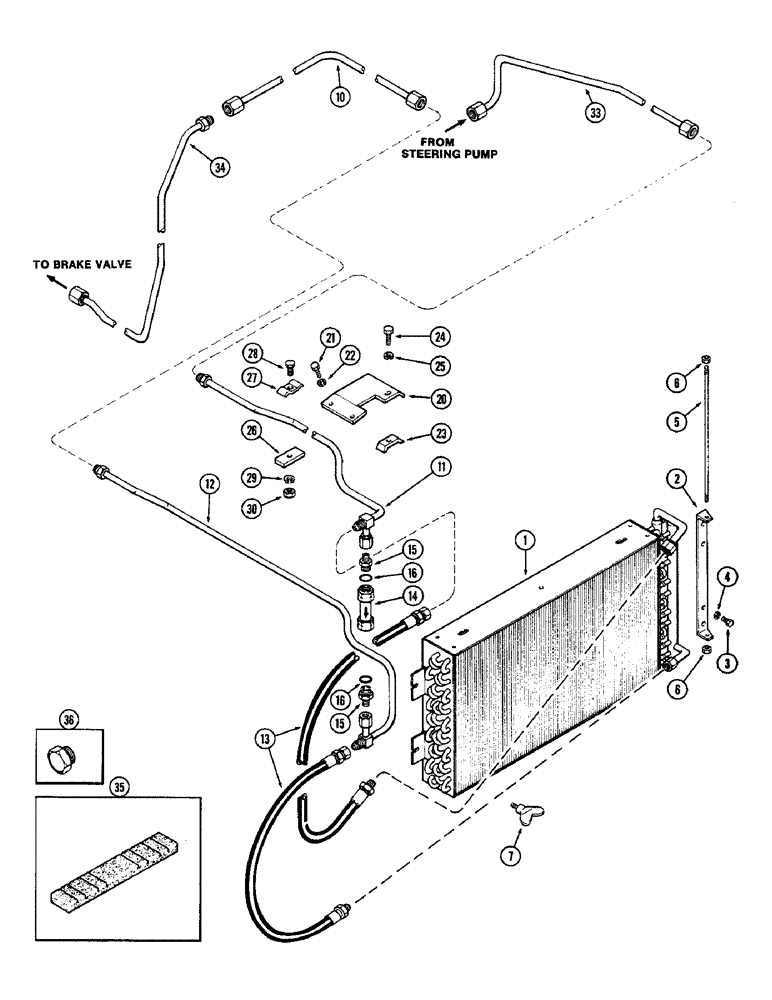

Запчасти Case IH 2590 (5-154) - OIL COOLER, P.I.N. 8835520 AND AFTER (05) - STEERING

1

A160190

COOLER

- oil, transmission

1шт.

2

A160194

SUPPORT

BRACKET - pivot

1шт.

3

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

2шт.

4

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

5

A160195

PIN

ROD - pivot, oil cooler

1шт.

6

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

7

A141485

THUMB SCREW,5/16" - 18 x 5/8"

- thumb, oil cooler lock (5/16" NC)

2шт.

10

A147900

TUBE

- center section, oil cooler outlet

1шт.

11

A160248

TUBE

- inlet, oil cooler

1шт.

12

A160249

TUBE

- outlet, oil cooler

1шт.

13

A36162

TUBE

HOSE - inlet and outlet

2шт.

14

A145165

VALVE

- bypass

1шт.

15

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - 1/2" tube x 3/4"-16, Incl. Ref 16

2шт.

16

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 5/16 x 1-5/32 x 7/64" (23.81 x 2937 x 2.78 MM)

1шт.

20

A145791

COVER

- cooler tubes

1шт.

21

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

2шт.

22

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

23

A60224

CLAMP

- tube

1шт.

24

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

25

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

26

A60864

PLATE

- tube clamp

1шт.

27

A63323

CLAMP

- tube

2шт.

28

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

29

92-5

LOCK WASHER,5/16"

2шт.

30

9635082

NUT,5/16" - 18, Gr 5

2шт.

33

A147897

TUBE

- steering pump

1шт.

34

A147699

TUBE

- brake valve

1шт.

35

A149298

SEAL

- air conditioning and oil cooler tubes

1шт.

36

218-775

PLUG,3/4"-16, 37 Degree

- 3/4"-16 flared

2шт.
