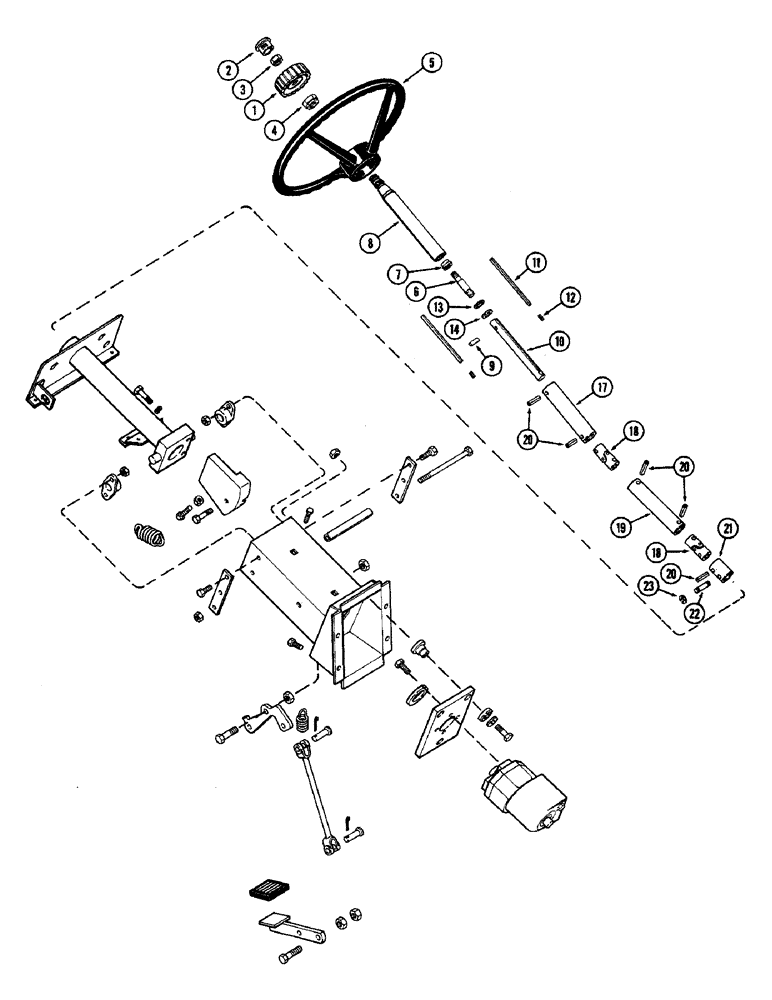

Запчасти Case IH 2590 (5-148) - STEERING WHEEL AND SHAFT (05) - STEERING

1

A141827

CAP

KNOB - steering wheel lock

1шт.

2

353-413

PLUG,Dome, 1.187" hole, Nylon

- heyco, knob

1шт.

3

25-146

JAM NUT,Jam, 3/8"-16, G5

- 3/8" NC hex jam

1шт.

4

A14567

JAM NUT

- 13/16" NF hex

1шт.

5

A65544

STEERING WHEEL

1шт.

6

A63683

SHAFT

- steering, telescopic lock

1шт.

7

A63684

LOCK NUT

- 1/2" NC special (L.H. thread)

1шт.

8

A63681

SHAFT

- steering, outer

1шт.

9

A63685

PIN

- stop

1шт.

10

A162020

SHAFT

- steering, inner (Replaces A63697)

1шт.

11

A63686

KEY

- steering lock

2шт.

12

A63687

LOCK

- friction

2шт.

13

A63688

FRICTION WASHER

- friction lock retainer

1шт.

14

A58116

RING

- snap, internal

1шт.

17

A147294

COUPLING

- U joint to steering shaft

1шт.

18

CASA147292

SWIVEL CONNECTION

JOINT - steering universal

2шт.

19

A147293

COUPLING

- U joint to U joint

1шт.

20

138-172

LOCK PIN,3/8" x 1 1/4", Slotted

PIN, 3/8" x 1 1/4", Slotted

5шт.

21

A147291

COUPLING

- U joint to steering pump

1шт.

22

A64000

PIN,9.42mm OD x 38.1mm L

- steering pump shaft

1шт.

23

A27795

RING

E-RING - steering pump pin

2шт.
