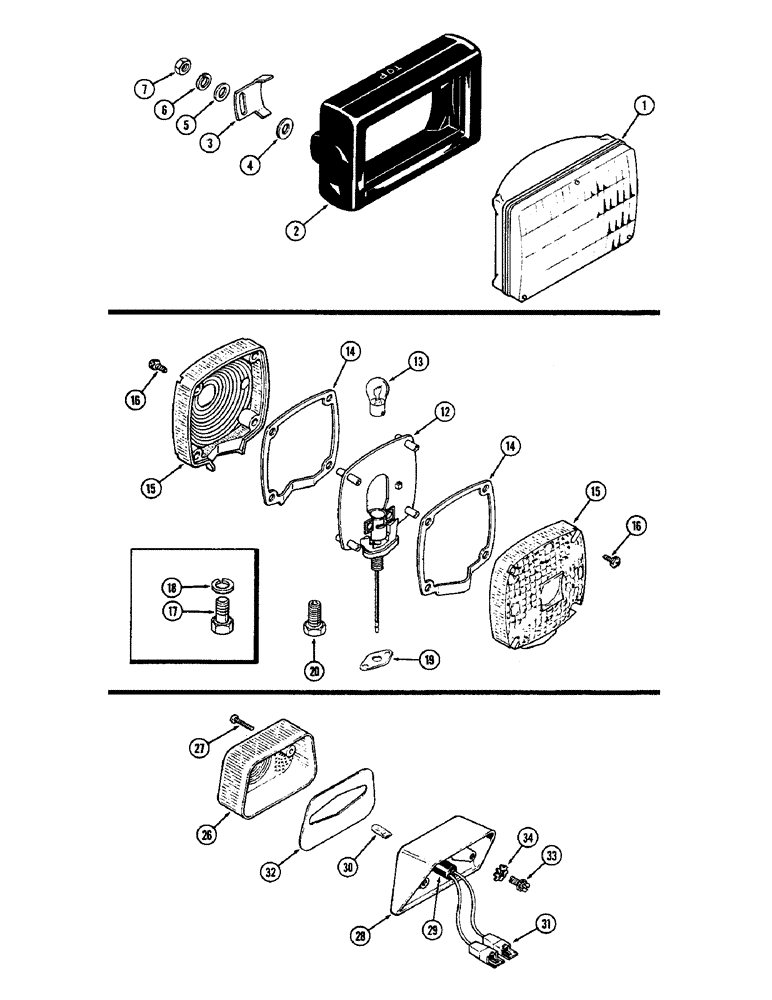

Запчасти Case IH 2590 (4-136) - HEAD LAMP (04) - ELECTRICAL SYSTEMS

1

A139458

LAMP

- head, sealed unit (#4652)

2шт.

2

A146354

MOUNTING PARTS

MOUNT - shock, rubber

2шт.

3

A146355

CLAMP

CLIP - mounting

2шт.

4

195-2038

WASHER,13/32" x 7/8" x .035"

- 13/32 x 7/8 x 1/32" (10.32 x 22.22 x 0.79 MM)

4шт.

5

95-4

WASHER,1/4"

- 5/16 x 3/4 x 1/16" (7.94 x 19.05 x 1.59 MM)

4шт.

6

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

7

131-204

NUT,1/4"-20

NUT - 1/4" NC hex

4шт.

A44201

LIGHT ASSY.

KIT - flasher lamp replacement, Includes: Refs. 12 - 20

2шт.

12

NSS

NOT SOLD SEPARAT

BODY - lamp, flasher lamp

1шт.

13

A41264

BULB,#1156, 12V

Lamp, Flasher lamp #1156, 12V

1шт.

14

A43731

GASKET

- lens, flasher lamp

2шт.

A44202

KIT

- lens replacement, flasher lamp, Includes: Refs. 15 and 16

1шт.

15

NSS

NOT SOLD SEPARAT

LENS, flasher lamp

2шт.

16

187-1083

SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"

SCREW - #8-32 x 3/4" round head Phillips, flasher lamp

8шт.

17

113-38

BOLT,Hex, 1/4" - 20 x 5/8", Gr 2

- 1/4 x 5/8" NC hex, flasher lamp

2шт.

18

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Flasher lamp 1/4"

2шт.

19

F63435

GASKET

- lamp base to cab, flasher lamp

1шт.

20

NSS

NOT SOLD SEPARAT

STUD - mounting (Not applicable), flasher lamp

1шт.

A143925

LAMP

- tail, Includes: Refs. 26 - 32

2шт.

26

A47056

LENS

- red, tail lamp

1шт.

27

187-829

SELF-TAP SCREW,Slotted Pan Hd, #8 x 1"

SCREW - #8-18 x 1" pan head slotted, tail lamp

1шт.

28

A47052

BASE

- lamp, tail lamp

1шт.

29

A47054

SOCKET/RECEPTACLE

SOCKET AND TERMINAL - lamp, tail

1шт.

30

D71346

TAIL LAMP,12V

BULB - lamp (#168), tail lamp

1шт.

31

A47051

MULTIPOLE CONNECTOR

CONNECTOR - body, tail lamp

2шт.

32

A47055

GASKET

- tail lamp

1шт.

33

187-1073

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 5/8"

SCREW - 1/4 x 5/8" hex self tapping, tail lamp

4шт.

34

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - Shakeproof, 1/4" internal external, tail lamp

4шт.
