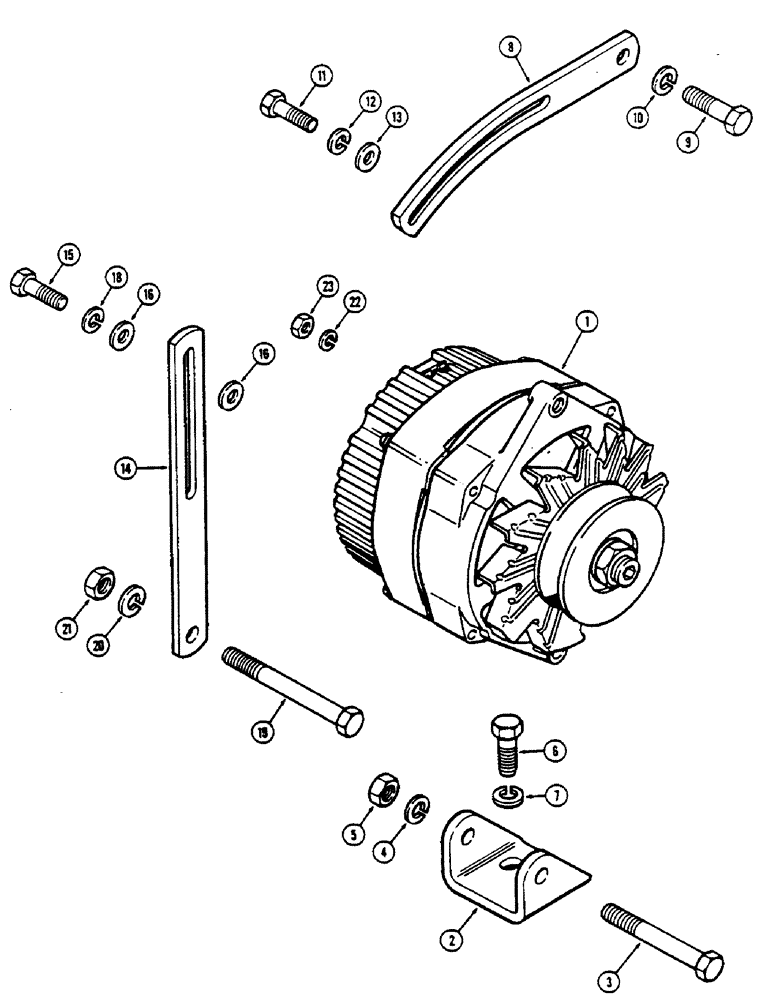

Запчасти Case IH 2590 (4-126) - ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

ALTERNATOR - (See Figures 4-128 through 4-134)

1шт.

2

A160391

BRACKET

- alternator mounting (Replaces A38492)

1шт.

3

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

4

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

1шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

6

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

7

92-6

LOCK WASHER,3/8"

2шт.

8

A145326

STRAP

- alternator adjusting

1шт.

9

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

10

92-6

LOCK WASHER,3/8"

1шт.

11

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

11

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- 8 x 1.25 x 25 MM hex

1шт.

Metric alternator has blue identification on upper mounting leg.

1шт.

12

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

13

195-103

WASHER,5/16"

- 11/32 x 11/16 x 1/16" (8.73 x 17.46 x 1.59 MM)

1шт.

14

A59098

STRAP

- support, alternator rear

1шт.

15

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

15

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- 8 x 1.25 x 25 MM hex

1шт.

Metric alternator has blue identification on upper mounting leg.

1шт.

16

195-103

WASHER,5/16"

- 11/32 x 11/16 x 1/16" (8.73 x 17.46 x 1.59 MM)

2шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

19

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

1шт.

20

92-6

LOCK WASHER,3/8"

1шт.

21

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

1шт.

22

192-17

LOCK WASHER,#12

Washer, Lock, , Alternator terminal #12

1шт.

23

129-18

NUT,#12-24

- hex, alternator terminal #12-24

1шт.

23

825-1106

NUT,Hex, M6, Cl 8

- 6 x 1 mm hex (Alternator teminal)

1шт.
