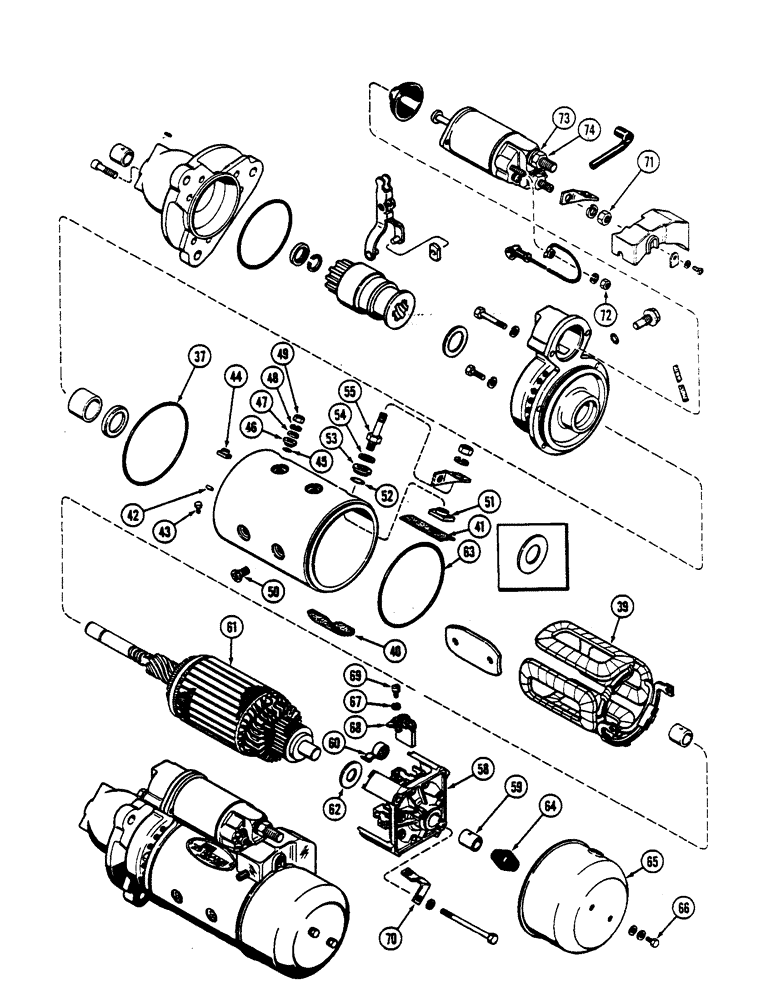

Запчасти Case IH 2590 (4-123G) - A162469 STARTER ASSEMBLY, P.I.N. 9910733 AND AFTER (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
A162469
STARTING MOTOR
STARTER ASSEMBLY - continued from Figure 4-123E
1шт.
37
A47820
O-RING
- yoke to center bearing
1шт.
A47821
YOKE
ASSEMBLY - field coil, Includes: Refs. 39 - 55
1шт.
39
A47822
COIL
ASSEMBLY - field
1шт.
40
A47833
INSULATOR
- field
1шт.
41
A47832
INSULATOR
- field
1шт.
42
A47824
PIN
- yoke dowel
1шт.
43
814-5010
BOLT,Hex, M5 x 0.8 x 10mm, Cl 8.8, Full Thd
- coil to frame, M5 x .8 x 10 hex
1шт.
44
A47825
BUSHING
- terminal insulating, inner
1шт.
45
A47826
RING
O-RING - terminal
1шт.
46
A47827
BUSHING
- terminal insulating, outer
1шт.
47
195-513
WASHER,#10
WASHING - 7/32 x 1/2 x 3/64" (5.56 x 12.7 x 1.40 MM)
1шт.
48
892-1105
LOCK WASHER,M5
WASHER - lock M5
2шт.
49
825-1105
NUT,M5, Cl 8
- M5 hex
1шт.
50
A47823
SCREW,M10 x 1.5 x 1.5mm
- coil, M10 x 1.5 x 20 flat head
8шт.
51
A47829
BUSHING
- terminal insulating, inner
1шт.
52
A47830
RING
O-RING - terminal
1шт.
53
A47831
BUSHING
- terminal insulating,outer
1шт.
54
195-103
WASHER,5/16"
- 3/8 x 7/8 x 5/64" (9.52 x 22.22 x 1.98 MM)
1шт.
55
A47828
BOLT
- terminal
1шт.
58
A47814
FRAME
ASSEMBLY - commutator end, Includes: Refs. 59 and 60
1шт.
59
A47784
BUSHING
- commutator end frame
1шт.
60
A47815
SPRING
- brush
4шт.
61
A47812
ARMATURE
ASSEMBLY - starter
1шт.
62
A47813
WASHER
- armature end
1шт.
63
39738
O-RING,4.609" ID x 0.139" Width
- end cover
1шт.
64
A47835
GASKET
- end cover
1шт.
65
A47834
COVER
- starter end
1шт.
66
814-5010
BOLT,Hex, M5 x 0.8 x 10mm, Cl 8.8, Full Thd
- cover retaining, M5 x .8 x 10 hex
2шт.
67
892-1006
LOCK WASHER,M6
WASHER - lock M6
2шт.
68
A47817
BRUSH, COMMUTATOR
BRUSH - starter
4шт.
69
A47816
SCREW,Pan Cross, M5 x 0.8 x 12mm
- brush retaining, M5 x .8 x 12
4шт.
70
A47818
CONNECTOR, ELEC
CONNECTOR - brush
2шт.
71
87016560
JAM NUT,Jam, 3/8"-16, G5
1шт.
72
193-1000
NUT,Keps, w/LW,#10-32
- #10-24 hex Keps
1шт.
73
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
1шт.
74
129-105
NUT,Hex, 1/2" - 13, Gr 5
1шт.
Выбрано товаров: 37
