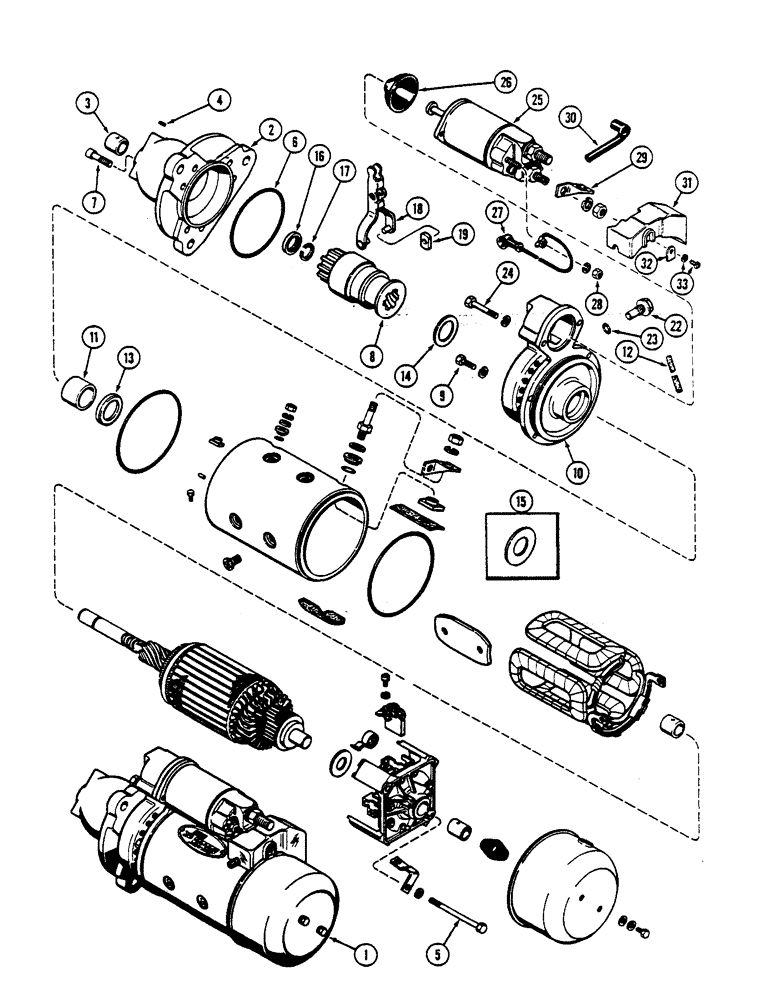

Запчасти Case IH 2590 (4-123E) - A162469 STARTER ASSEMBLY, P.I.N. 9910733 AND AFTER (04) - ELECTRICAL SYSTEMS

1

A162469

STARTING MOTOR

STARTER ASSEMBLY - Nippondenso no. 028000-7430, Includes: Refs. 2 - 33

1шт.

1

AR187728

REMAN-STARTER

Remanufactured Starter

1шт.

1

AC187728

CORE-STARTER

Return Part Number

1шт.

2

A47783

HOUSING

HOUSING ASSEMBLY - drive, Includes: Refs. 2 and 3

1шт.

3

A47784

BUSHING

BUSHING - drive housing

1шт.

4

A47785

PLUG

PLUG - housing cover

1шт.

5

A47819

BOLT

BOLT - through, M7 x 1 x 86 hex

2шт.

6

A47786

SEAL

PACKING - housing to center bearing

1шт.

7

A47787

BOLT

BOLT - housing to center bearing, M8 x 1.25 x 31 special

6шт.

8

A47788

CLUTCH

CLUTCH ASSEMBLY - drive

1шт.

9

A47809

BOLT

BOLT - bearing housing to frame, M7 x 1 x 20

5шт.

10

A47805

HOUSING

HOUSING - center bearing, Includes: Refs. 11 - 13

1шт.

11

A47806

BUSHING

BUSHING - center bearing

1шт.

12

A47807

FELT

FELT - bearing oil

1шт.

13

A47808

OIL SEAL

SEAL - oil

1шт.

14

A47811

WASHER

WASHER - oil seal backup

1шт.

15

A47810

WASHER

WASHER - brake

1шт.

16

A47789

COLLAR

COLLAR - pinion stop

1шт.

17

A47790

RING, SNAP

RING SNAP RING - collar to shaft retaining snap

1шт.

18

A47791

LEVER

LEVER ASSEMBLY - starter drive, Includes: Ref. 19

1шт.

19

A47792

RING

RING - drive lever

2шт.

22

A47793

BOLT

BOLT - pivot

1шт.

23

A47794

RING,11 mm ID

O-RING - drive lever pivot bolt

1шт.

24

A47795

BOLT

BOLT - switch retaining, M6 x 1 x 42 hex

2шт.

25

A47796

SWITCH

SWITCH ASSEMBLY - magnetic, Includes: Refs. 26 - 28

1шт.

25

A187795R

REMAN-SOLENOID

2590 P.I.N. 9910733 AND AFTER (1/79-12/83), Reman For New P/N A47796

1шт.

25

A187795C

CORE-SOLENOID

Return Part Number

1шт.

26

A47797

COVER

COVER - magnetic switch

1шт.

27

A47798

ELECTRICAL WIRE

WIRE WIRE - lead

1шт.

28

A47799

NUT

NUT - #10-32 hex special

1шт.

29

A47800

CONNECTOR, ELEC

CONNECTOR CONNECTOR - terminal

1шт.

30

A47801

TUBE

TUBE - switch drain

1шт.

31

A47802

COVER

COVER - terminal

1шт.

32

A47803

PLATE

PLATE - terminal cover

1шт.

33

A47804

SCREW,M4 x 0.7 x 0.7mm

SCREW - plate retaining, M4 x .7 x 9

1шт.
