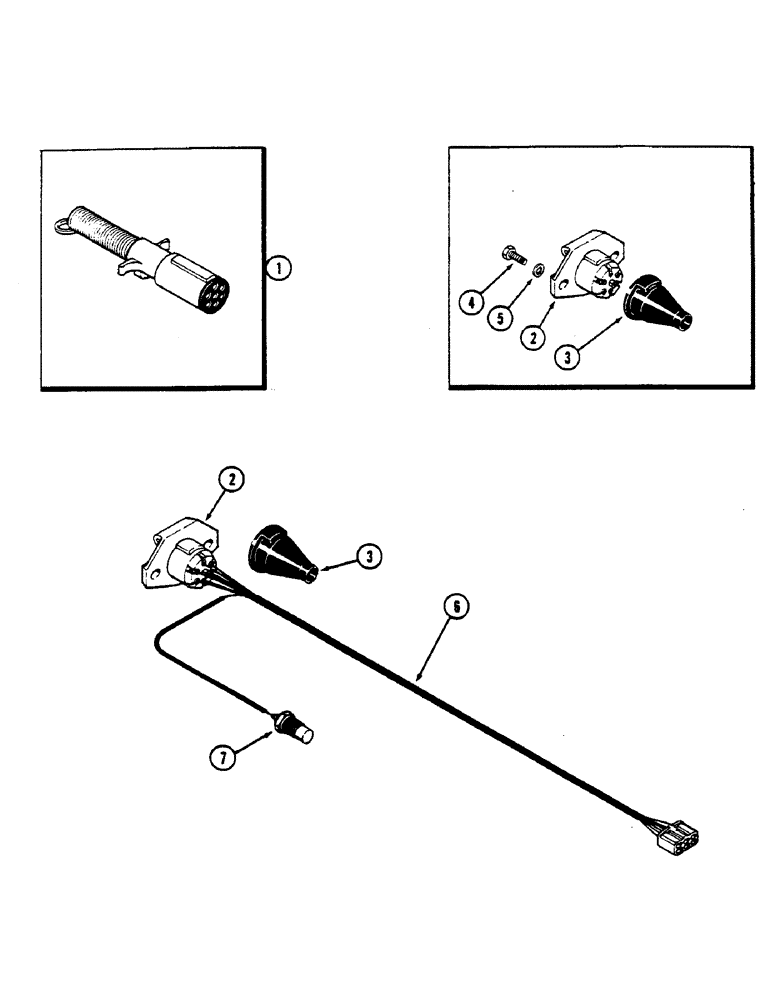

Запчасти Case IH 2590 (4-108) - AUXILIARY ELECTRICAL OUTLET (04) - ELECTRICAL SYSTEMS

1

A67189

CONNECTOR, ELEC

CONNECTOR - 7 point auxiliary plug (Male) (Order A139672)

1шт.

A67470

KIT

- 7 point auxiliary outlet (Machine Item), Includes: Refs. 2 - 6

1шт.

2

A145795

CONNECTOR, ELEC

CONNECTOR - 7 point (Female)

1шт.

3

A145796

COVER

BOOT - connector, rubber

1шт.

4

187-1030

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

BOLT - 5/16 x 3/4" hex self tapping

2шт.

5

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 1/16" (8.73 x 17.46 x 1.59 MM)

2шт.

6

A143370

HARNESS

- auxiliary outlet

1шт.

7

A154283

SWITCH

- transmission temperature

1шт.
