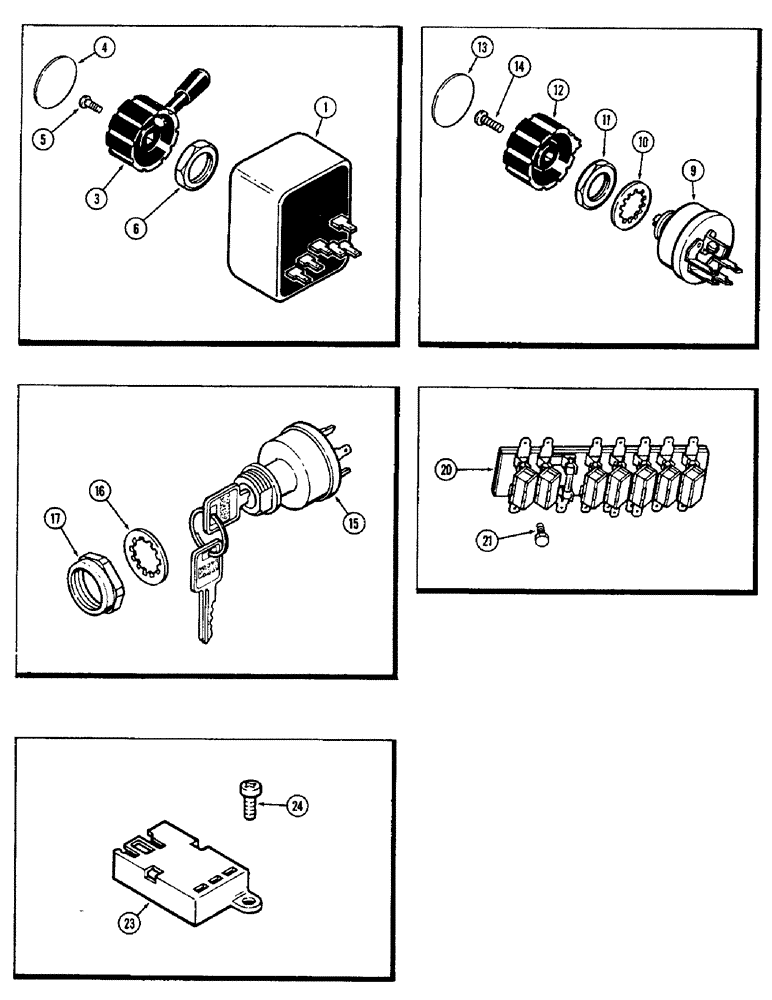

Запчасти Case IH 2590 (4-106) - ELECTRICAL EQUIPMENT MOUNTING (04) - ELECTRICAL SYSTEMS

1

A77184

SWITCH

- turn signal and flasher

1шт.

3

A141736

KNOB

- switch

1шт.

4

A160035

PLATE

- insert

1шт.

5

182-567

SCREW,Sltd Pan Hd, #5-40 x 1/2"

- #5 x 1/2" NC round head

1шт.

6

131-428

LOCK NUT,PAL, 3/4"-20

NUT - 3/4" hex pal nut

1шт.

9

A141607

SWITCH

- lamp

1шт.

10

193-63

LOCK WASHER,Int Tooth, 5/8"

WASHER - Shakeproof, 5/8" internal

1шт.

11

A20467

NUT

- light switch lock

1шт.

12

A141735

KNOB

- light switch

1шт.

13

A160035

PLATE

- insert

1шт.

14

182-565

SCREW,Sltd Pan Hd, #8-32 x 5/8"

- #8 x 5/8" NC pan head

1шт.

15

A77312

SWITCH

- ignition

1шт.

16

193-108

LOCK WASHER,Int Tooth, 1"

WASHER - Shakeproof, 1" internal

1шт.

17

A145855

NUT

- ignition switch lock

1шт.

20

A147180

HOLDER

- fuse, Start Serial: 8841101

1шт.

21

187-1054

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - #10-24 x 1/2" hex slotted

2шт.

23

A145512

ELEC CONNECTOR

MODULE - low coolant indicator (Order A162294)

1шт.

24

187-1054

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - #10-24 x 1/2" hex slotted

2шт.
