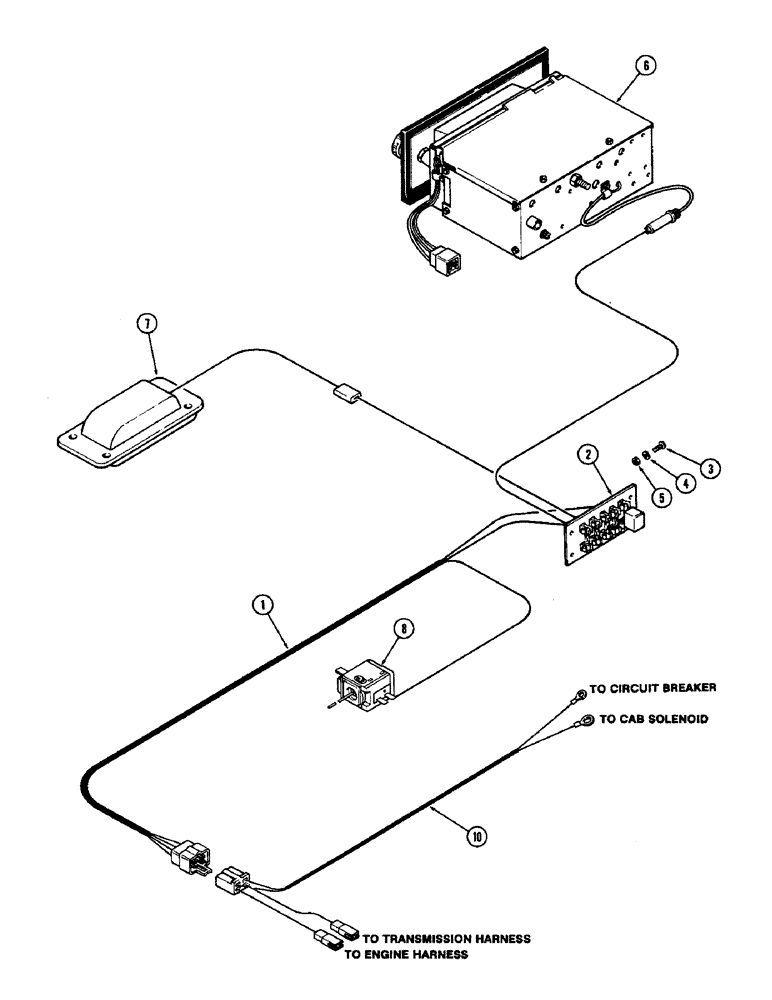

Запчасти Case IH 2590 (4-094) - CAB, LOWER WIRING HARNESS, PRIOR TO CAB SERIAL NUMBER 12013067 (04) - ELECTRICAL SYSTEMS

1

F98112

HARNESS

- cab to engine harness connector

1шт.

2

F98113

BLOCK

- fuse

1шт.

3

173-218

SCREW,Sl Rnd Hd, #5 - 40 x 1/2"

- #5-40 x 1/2" round head, brass

1шт.

4

195-14

WASHER,#12

- lock, #5

1шт.

5

129-630

NUT,#5-40, Brass

- #5-40 hex, brass

1шт.

6

REF

INSTRUCTION

RADIO - (See Figures 9-406 and 9-408)

1шт.

7

REF

INSTRUCTION

LAMP - dome (See Figure 9-382)

1шт.

8

REF

INSTRUCTION

SWITCH - temperature control (See Figure 9-400)

1шт.

10

A147211

HARNESS

- cab, Serial Range: harness-engine

1шт.
