(4-090) - REAR LIGHT HARNESS, P.I.N. 8841101 AND AFTER

Запчасти Case IH 2590 (4-090) - REAR LIGHT HARNESS, P.I.N. 8841101 AND AFTER (04) - ELECTRICAL SYSTEMS

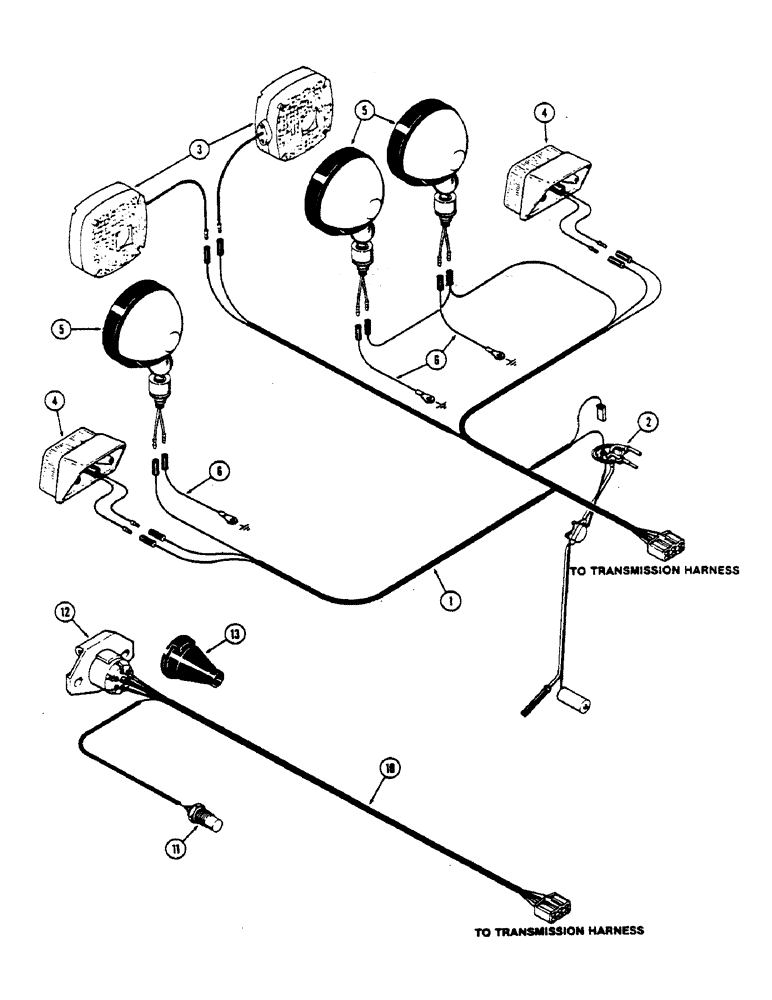

Схема запчастей Case IH 2590 - (4-090) - REAR LIGHT HARNESS, P.I.N. 8841101 AND AFTER (04) - ELECTRICAL SYSTEMS
11
6
4
4
5
12
13
2
3
6
1
5
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A160587

HARNESS

- rear lighting

1шт.

2

A161769

TRANSMITTER

SENDER - fuel level (Replaces A139800)

1шт.

3

A44201

LIGHT ASSY.

LAMP - flasher (See Figure 4-136)

2шт.

4

A143925

LAMP

- tail (See Figure 4-136)

2шт.

5

A145495

LAMP

- rear flood (See Figure 4-138)

3шт.

6

A147343

ELECTRICAL WIRE

WIRE - rear flood ground

3шт.
