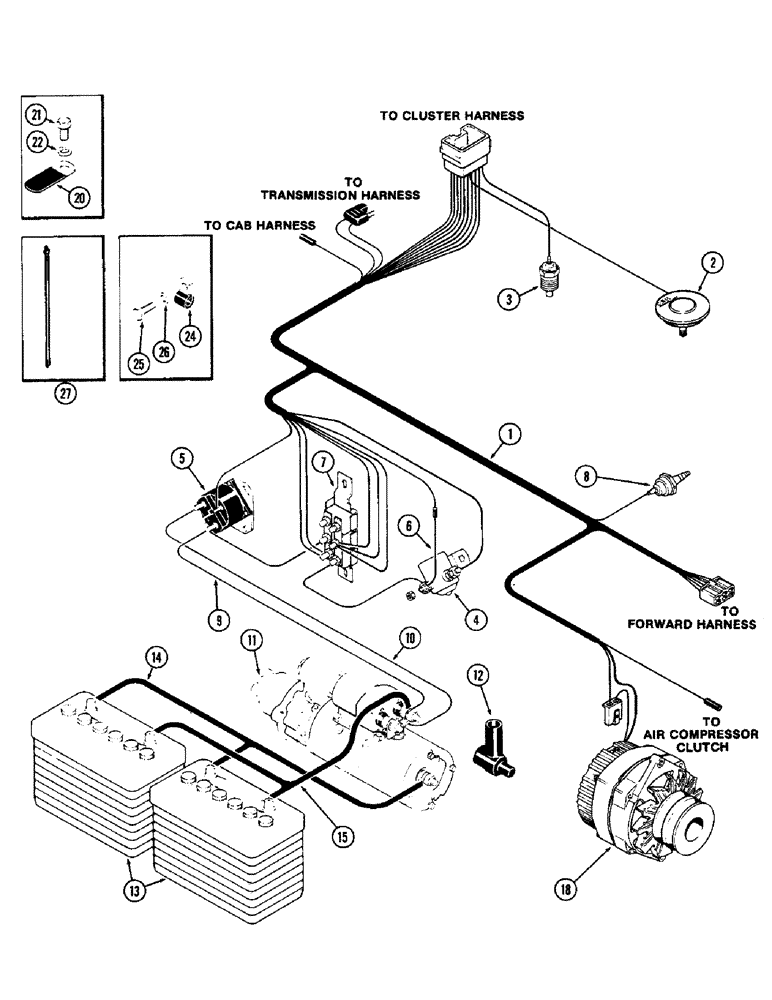

Запчасти Case IH 2590 (4-082) - ENGINE HARNESS, P.I.N. 8841101 AND AFTER (04) - ELECTRICAL SYSTEMS

1

A160584

HARNESS

- engine

1шт.

2

A154782

SWITCH

- air cleaner restriction

1шт.

3

D65446

SENDER UNIT

SENDER - engine water temperature

1шт.

4

139026A1

RELAY

SOLENOID - cab electrical

1шт.

5

A39079

SOLENOID

- ignition (See Figure 4-110)

1шт.

6

A160443

HARNESS

WIRE - cab solenoid, purple 6" (152.4 MM) long

1шт.

7

A147549

BREAKER

- circuit, 20 ampere and 100 ampere (See Figure 4-110)

1шт.

8

A66737

SWITCH, PRESSURE

SWITCH - engine oil pressure, 15 PSI (10 kPa)

1шт.

9

A147210

ELECTRICAL WIRE

WIRE - starter to solenoid (Battery terminal)

1шт.

10

A147209

ELECTRICAL WIRE

WIRE - starter to solenoid (Switch terminal)

1шт.

11

REF

INSTRUCTION

STARTER - (See Figures 4-116 through 4-122)

1шт.

12

A153796

BOLT

COVER - starter terminal insulator

1шт.

13

REF

INSTRUCTION

BATTERY - 12 volt low maintenance (See Figure 4-112)

2шт.

14

A149182

CABLE

- battery, negative (See Figure 4-112)

1шт.

15

A149179

CABLE

- battery, positive (Order A162287) (See Figure 4-112)

1шт.

18

REF

INSTRUCTION

ALTERNATOR - (See Figures 4-128 through 4-134)

1шт.

20

A37179

CLIP

- wire, alternator, Serial Range: wires-engine

1шт.

21

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

1шт.

22

92-6

LOCK WASHER,3/8"

1шт.

24

49852

PTO SHAFT

CLIP - wire, harness to front end casting

1шт.

25

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

26

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

27

A160890

STRAP

- nylon (Replaces L11541)

4шт.
