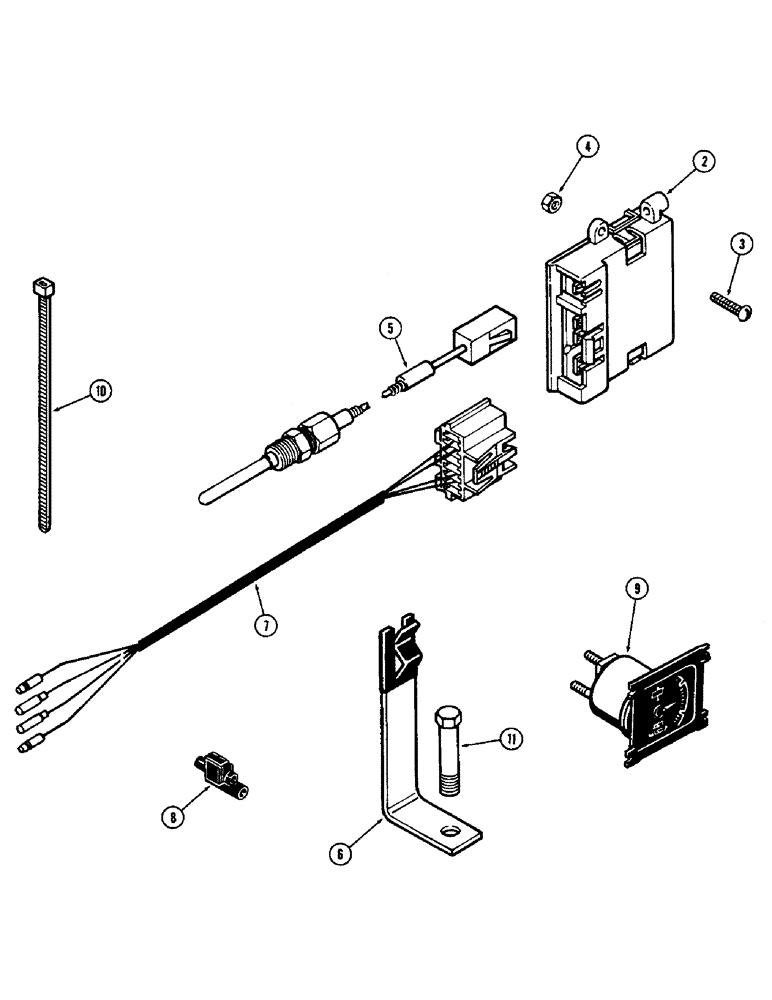

Запчасти Case IH 2590 (4-078) - PYROMETER MODULE AND THERMOCOUPLE, FIELD INSTALLED, PRIOR TO P.I.N 8841101 (04) - ELECTRICAL SYSTEMS

A67494

KIT

- pyrometer module, Includes: Refs. 2 - 11

1шт.

2

A154256

CONNECTOR, ELEC

MODULE - pyrometer

1шт.

3

182-125

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- #10-24 x 1/2" pan head

2шт.

4

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT - #10-24" hex Keps

2шт.

5

A154255

TRANSMITTER

THERMOCOUPLE - exhaust, Serial Range: pipe-module

1шт.

6

A147023

BRACKET

- thermocouple support

1шт.

7

A160813

HARNESS

- pyrometer adapter

1шт.

8

A62556

CONNECTOR, ELEC

CONNECTOR - pyrometer wire

1шт.

9

A154254

ELECTRICAL GAUGE

GAUGE - pyrometer

1шт.

10

T54520

STRAP

- thermocouple cable

1шт.

11

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

(Not used this application) Hex, 3/8"-16 x 1 3/4", G5

1шт.
