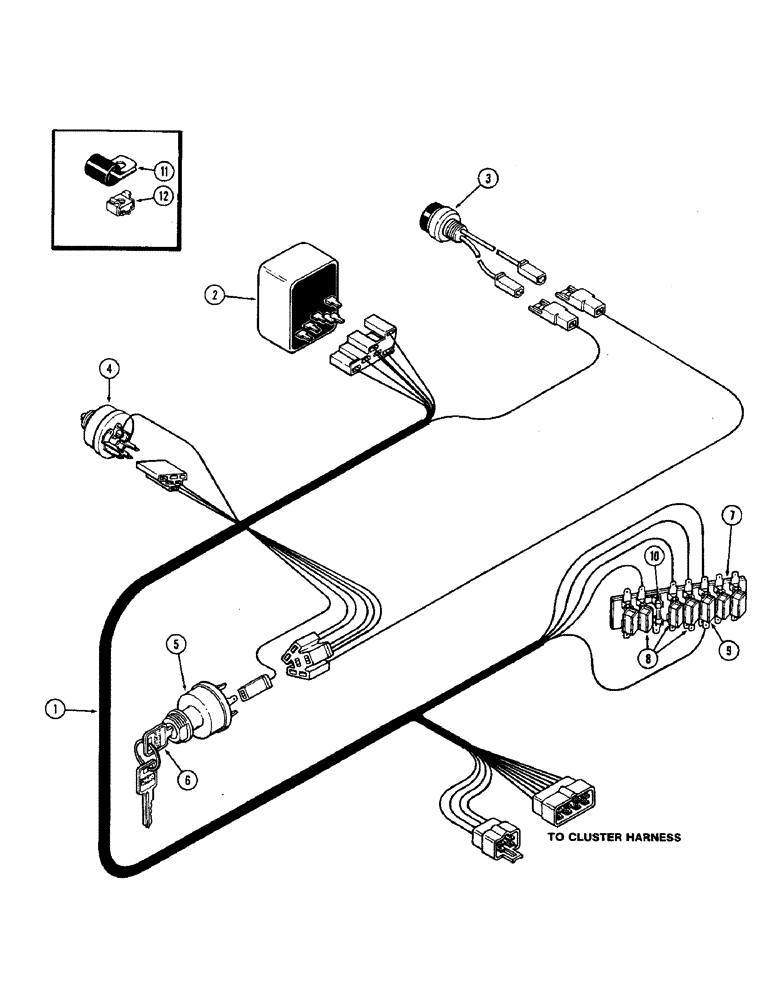

Запчасти Case IH 2590 (4-068) - CONSOLE HARNESS, PRIOR TO P.I.N. 8841101 (04) - ELECTRICAL SYSTEMS

1

A147205

HARNESS

- steering console

1шт.

2

A77184

SWITCH

- flasher and turn signal (See Figure 4-106)

1шт.

3

A135520

SWITCH

- cold start

1шт.

4

A141607

SWITCH

- lamp (See Figure 4-106)

1шт.

5

A77312

SWITCH

- ignition (See Figure 4-106)

1шт.

6

A77313

SET OF 2 KEYS

KEY - ignition (Set of 2) (Use for cab door also)

1шт.

7

A147180

HOLDER

- fuse (See Figure 4-106)

1шт.

8

A141611

BREAKER

- circuit, 15 ampere (If equipped)

3шт.

8

223-15

FUSE,15 Amp, Type 3AG

- 15 ampere (If equipped)

3шт.

9

A141612

BREAKER

- circuit, 20 ampere (If equipped)

1шт.

9

223-27

FUSE,20 Amp, Type 3AG

- 20 ampere (If equipped)

3шт.

10

223-26

FUSE,5 Amp, Type 3AG

- 5 ampere

1шт.

11

49838

CLAMP

- harness to steering column

1шт.

12

131-133

NUT,Ret, 3/8"-16

Tinnerman speed Ret, 3/8"-16

1шт.
