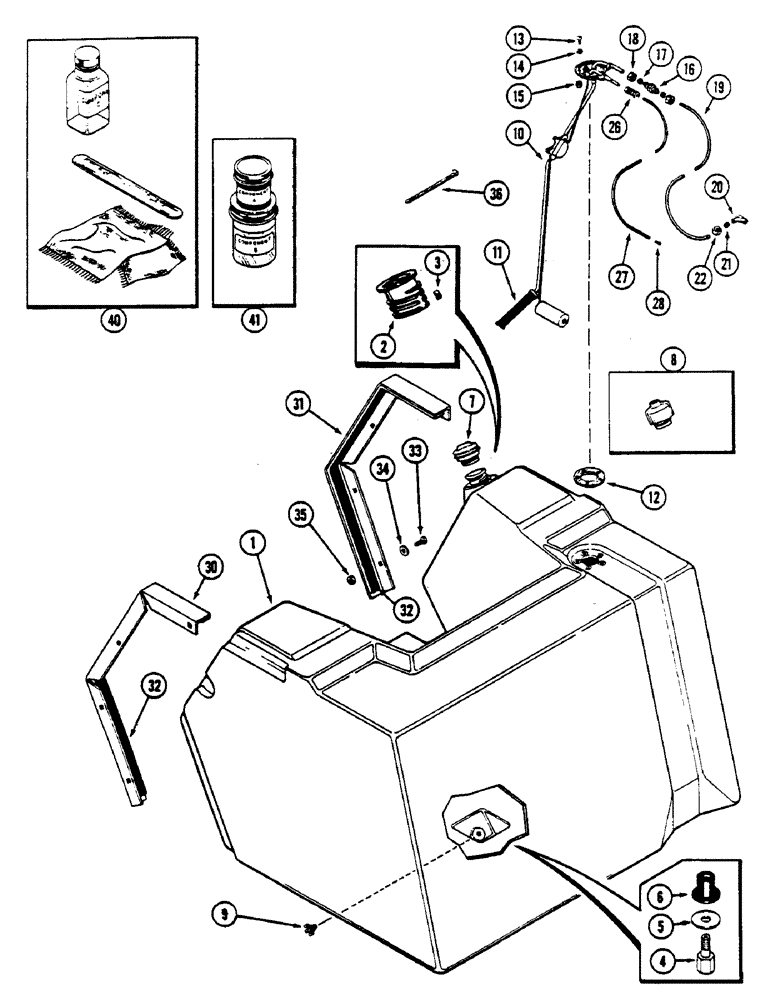

Запчасти Case IH 2590 (3-66) - FUEL TANK AND LINES, 504BDT, DIESEL ENGINE (03) - FUEL SYSTEM

1

A162753

TANK

- 85 gallon (321.73 litres) (Replaces A160505), Serial Range: -9913388

1шт.

1

REF

INSTRUCTION

TANK - fuel, 85 gallons (321.71 litres) (Order 1-A162753 tank, 1-A163604 SMV emblem and 2-182-540 screw), Includes: Refs. 2 - 6, Start Serial: 9913388

1шт.

2

A147375

NECK FILLER

INSERT - filler neck

1шт.

3

A161306

LOCK

NUT - filler neck

1шт.

4

A65890

STUD,3/8" - 16 x 1/4" NPT

- drain valve

1шт.

5

A65892

WASHER

- stud

1шт.

6

A143035

NUT,31.75mm OD x 26.97mm L

FASTENER - stud

1шт.

7

A160226

CAP

- filler

1шт.

8

A160381

CAP

- fuel tank filler (With lock and keys) (Replaces A147148)

1шт.

9

A23656

COCK, DRAIN

VALVE - drain

1шт.

10

A161769

TRANSMITTER

UNIT - fuel gauge and input (Replaces A139800)

1шт.

11

A47706

STRAINER ELEMENT

STRAINER - fuel

1шт.

12

A11822

GASKET

- unit

1шт.

13

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- #10 x 1/2" NC pan head

5шт.

14

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

5шт.

15

193-1000

NUT,Keps, w/LW,#10-32

- #10-32 hex Keps

1шт.

16

222-2651

HYD CONNECTOR,17/32"-24

UNION - 3/8" nylon tube to 3/8" steel tube (9.65 x 9.65 MM) (Replaces A139967), Includes: Refs. 17 and 18

1шт.

17

222-2611

SLEEVE

- 3/8" tube (9.63 MM)

2шт.

18

222-2601

NUT

NUT - 3/8" tube (9.63 MM)

2шт.

19

A67323

TUBE

- fuel supply, 3/8" O.D. (9.65 MM) x 11' long (3.34 M) nylon

1шт.

20

222-5140

FITTING,45 Degree, 17/32"-24 x 1/4" NPT

ELBOW ASSEMBLY - 45 degree to hand primer pump, Includes: Refs. 21 and 22

1шт.

21

222-5186

SLEEVE,3/8" Tube

- for 3/8" Tube

1шт.

22

222-5181

NUT,9/16"-24

NUT - for 3/8" tube

1шт.

26

A139968

FITTING

UNION - 1/4" nylon tube (6.35 MM) to 1/4" steel tube (6.35 MM)

1шт.

27

A67322

TUBE

- fuel return, 1/4" O.D. (6.35 MM) x 10-1/2" long (266.7 MM)

1шт.

28

A141160

INSERT

- nylon tube

1шт.

30

A139963

RETAINER

- fuel tank, R.H.

1шт.

31

A139965

RETAINER

- fuel tank, L.H.

1шт.

32

A139141

SEAL

- retainer, 1/4 x 1 x 33-1/2" (6.35 x 25.4 x 850.9 MM)

2шт.

33

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

8шт.

34

195-104

WASHER,3/8"

- 7/16 x 1 x 5/64" (11.11 x 25.4 x 1.98 MM)

8шт.

35

131-133

NUT,Ret, 3/8"-16

Speed grip Ret, 3/8"-16

8шт.

36

A160890

STRAP

- tube (Replaces L11541)

1шт.

40

A44635

KIT

- fuel tank repair (Also order A44636)

1шт.

41

A44636

KIT

- fuel tank repair sealant

1шт.
