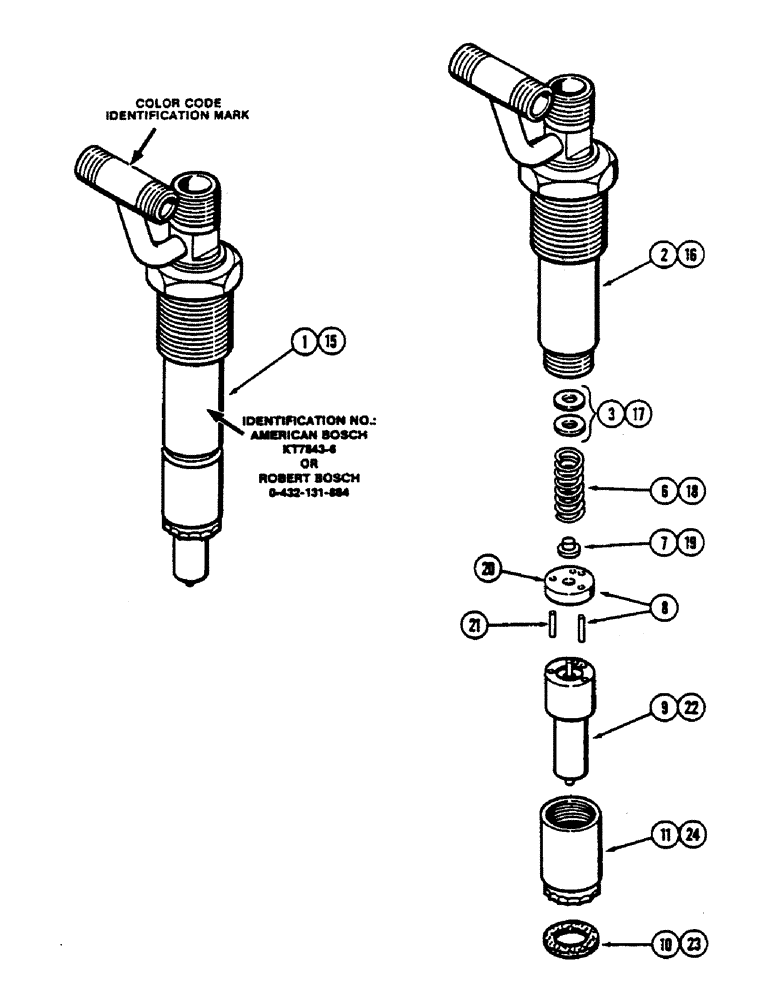

Запчасти Case IH 2590 (3-62) - FUEL INJECTOR NOZZLE, 504BDT, DIESEL ENGINE, RED COLOR CODE IDENTIFICATION (03) - FUEL SYSTEM

1

A156327

NOZZLE CAP

NOZZLE ASSEMBLY - fuel injection, Includes: Refs. 1 - 24

6шт.

A156327R

REMAN-INJECT NOZZLE

2590 (1/79-12/83)

6шт.

A156327C

CORE-NOZZLE, INJECT

Return number

1шт.

1

NSS

NOT SOLD SEPARAT

NOZZLE ASSEMBLY - fuel injection, American Bosh no. KT7843-6 (Order A156327)

1шт.

American Bosch and Robert Bosch injector nozzle components are not interchangeable.

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - nozzle (Order A156327)

1шт.

A44860

SHIM

KIT - shim, nozzle opening pressure (One kit required to repair six nozzle), Includes: Ref. 3

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 6 in kit, 0.062" (1.57 MM)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 80 in kit, 0.002" (0.05 MM)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 50 in kit, 0.007" (0.18 MM)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 50 in kit, 0.010" (0.25 MM)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 20 in kit, 0.025" (0.64 MM)

1шт.

6

A44864

SPRING

- nozzle pressure adjusting

1шт.

7

A44863

SEAT

- nozzle pressure adjusting spring

1шт.

8

A44862

VALVE

STOP - nozzle assembly, with pin

1шт.

9

A142969

NOZZLE CAP

TIP ASSEMBLY - nozzle injector

1шт.

10

1342829C1

GASKET

- nozzle; Replaces A76640

1шт.

Whenever nozzle is removed from head, A76640 gasket must be replaced before nozzle is installed back in head.

1шт.

11

A44861

NUT

NUT - nozzle end

1шт.

15

NSS

NOT SOLD SEPARAT

NOZZLE ASSEMBLY - fuel injection Robert Bosch no. 0-432-131-884 (Order A156327), Includes: Ref. 17

1шт.

American Bosch and Robert Bosch injector nozzle components are not interchangeable.

1шт.

16

NSS

NOT SOLD SEPARAT

BODY - nozzle (Order A156327)

1шт.

A48186

KIT

- shim, nozzle opening pressure (One kit required to repair six nozzles)

1шт.

17

A48204

SHIM,1.00mm Thk

Nozzle, 5 in kit (.039") 1.00mm Thk

1шт.

17

A48205

SHIM,1.10mm Thk

Nozzle, 5 in kit (.043") 1.10mm Thk

1шт.

17

A48206

SHIM,1.20mm Thk

Nozzle, 5 in kit (.047") 1.20mm Thk

1шт.

17

A48207

SHIM,1.30mm Thk

Nozzle, 5 in kit (.051") 1.30mm Thk

1шт.

17

A48208

- nozzle, 5 in kit, 0.055" (1.40 MM)

1шт.

17

A48209

SHIM,1.50mm Thk

Nozzle, 5 in kit (.059") 1.50mm Thk

1шт.

17

A48210

SHIM,1.60mm Thk

Nozzle, 5 in kit (.063") 1.60mm Thk

1шт.

17

A48211

SHIM,1.70mm Thk

Nozzle, 5 in kit (.067") 1.70mm Thk

1шт.

17

A48212

SHIM,1.80mm Thk

Nozzle, 5 in kit (.071") 1.80mm Thk

1шт.

17

A48213

SHIM,1.90mm Thk

Nozzle, 5 in kit (.075") 1.90mm Thk

1шт.

18

A48198

SPRING

- nozzle pressure

1шт.

19

A48203

SEAT

- nozzle pressure spring

1шт.

20

A48199

VALVE

STOP - nozzle

1шт.

21

A48200

PIN

- valve stop

2шт.

22

A47752

NOZZLE INJECTION

TIP ASSEMBLY - nozzle injector, Includes: Ref. 23

1шт.

23

A76640

GASKET

- nozzle

1шт.

Whenever nozzle is removed from head, A76640 gasket must be replaced before nozzle is installed back in head.

1шт.

24

A48201

NUT

CAP NUT - nozzle end

1шт.
