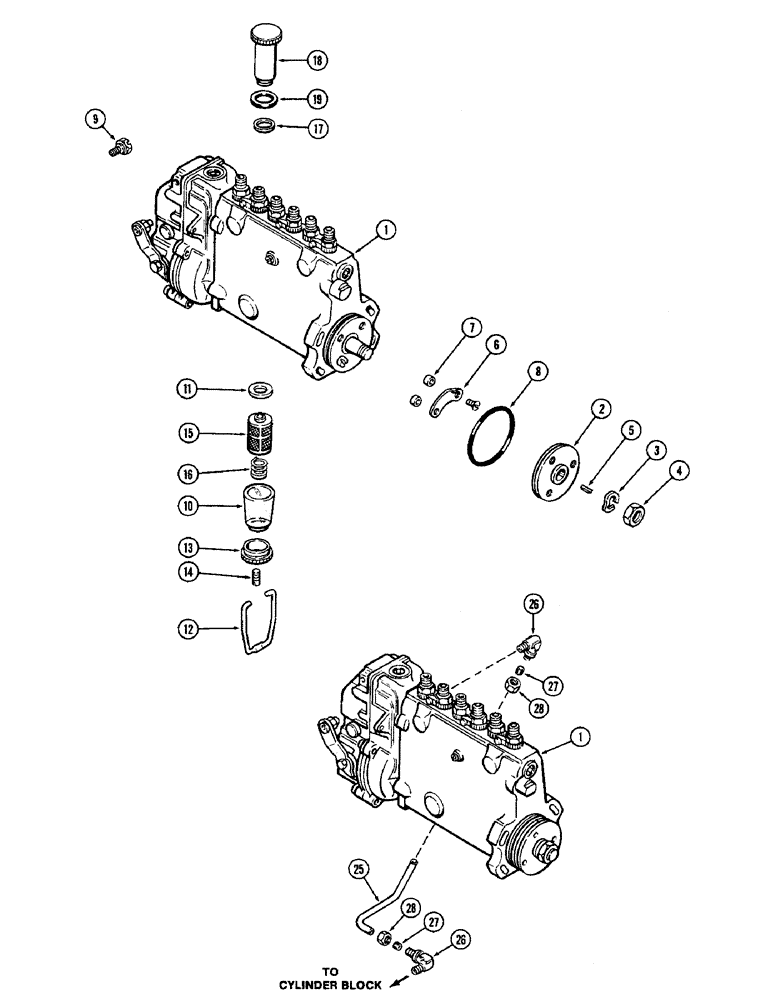

Запчасти Case IH 2590 (3-56) - FUEL INJECTION PUMP, 504BDT, DIESEL ENGINE (03) - FUEL SYSTEM

1

A152735

PUMP

ASSEMBLY - fuel injection, Includes: Refs. 2 - 19

1шт.

2

A41857

HUB

- pump drive

1шт.

3

A41851

LOCK WASHER

- lock, hub nut

1шт.

4

A41852

LOCK NUT

- hub retaining

1шт.

5

A41850

KEY

- hub to pump shaft

1шт.

6

A41858

INDICATOR

POINTER - hub adjusting

1шт.

7

A41859

BUSHING

SPACER - pointer

2шт.

8

A41856

O-RING,3mm Thk x 75mm ID

- 2-21/64 x 3-3/16 x 1/8" (59.18 x 81.03 x 3.05 MM)

1шт.

9

513-2200

BOLT

SCREW - pump stop control cable lock (Order 814-4008)

1шт.

10

A43347

BOWL

- filter

1шт.

11

A43346

GASKET

- bowl

1шт.

12

A43350

CLAMP

BAIL - bowl

1шт.

13

A43348

NUT

BAILNUT - bowl seat

1шт.

14

A43349

STUD

- bailnut retaining

1шт.

15

A43344

FILTER, ELEMENT

ELEMENT - filter

1шт.

16

A43345

SPRING

- element retaining

1шт.

17

A43351

SEAL

- hand primer pump (Copper)

2шт.

18

A43343

CARTRIDGE

PUMP ASSEMBLY - hand primer, Includes: Ref. 19

1шт.

19

A45342

GASKET

- hand primer pump

1шт.

25

A136903

TUBE

- oil, Serial Range: block-pump

1шт.

26

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ASSEMBLY - 90 degree, Includes: Refs. 27 and 28

2шт.

27

222-102

SLEEVE,1/4" Tube

1шт.

28

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.
