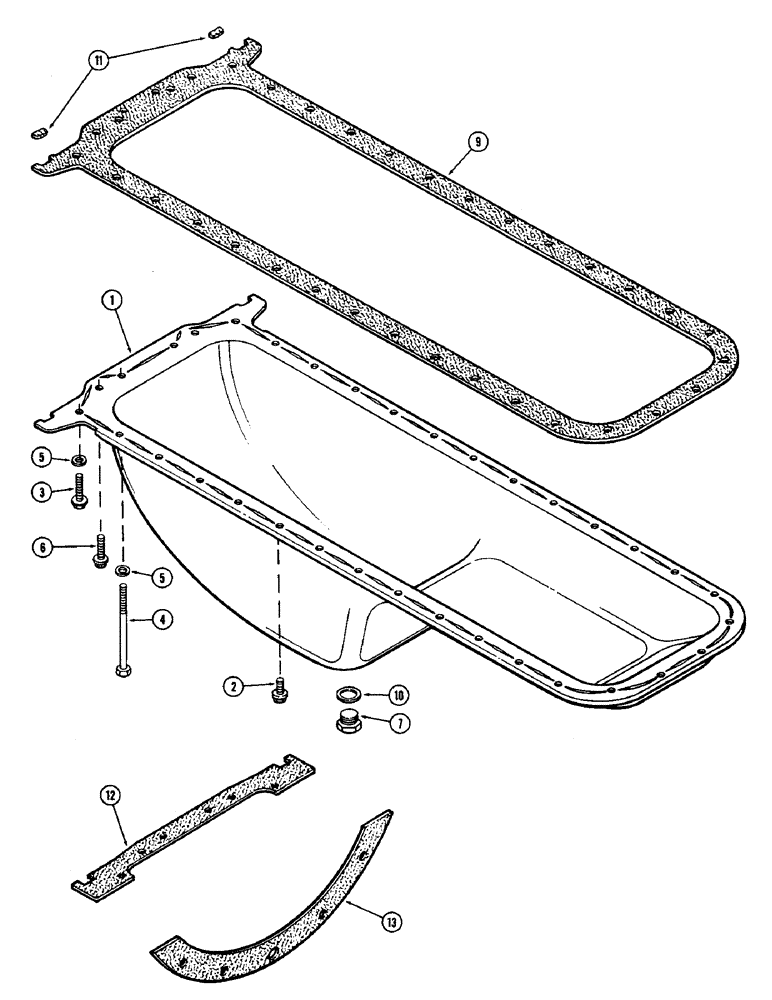

Запчасти Case IH 2590 (2-50) - OIL PAN AND GASKETS, 504BDT, DIESEL ENGINE (02) - ENGINE

1

A150239

PAN

- oil

1шт.

2

193-553

SCREW,SEMS, Hex Hd, 3/8"-16 x 7/8", G5

BOLT - 3/8 x 7/8" NC hex Sems (Includes lockwasher) (Order 1-113-221 and 1-92-6)

26шт.

3

166-46

12 PT SCREW,Flg, 3/8" - 16 x 1 1/4", Gr 8

SCREW - 3/8 x 1-1/4" NC Ferry head (Outside holes)

2шт.

4

113-2232

BOLT,Hex, 3/8" - 16 x 5-1/2", Gr 5

- 3/8 x 5-1/2" NC hex (Grade 5)

2шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

6

193-528

SCREW,SEMS, Hex Soc Hd, 3/8"-16 x 1 1/2"

BOLT - 3/8 x 1-1/2" NC hex Sems (Includes lockwasher)

1шт.

7

A34826

PLUG,7/8" - 18 ORB

- drain, oil plan

1шт.

A152479

GASKET KIT

- oil pan, Includes: Refs. 9 - 13

1шт.

9

NSS

NOT SOLD SEPARAT

GASKET -, Serial Range: pan-block

1шт.

10

A27968

RING

- copper, drain plug

1шт.

A152424

GASKET

KIT

1шт.

Used when tractor is split and oil pan is not removed.

1шт.

11

A150690

OIL PAN GASKET SET

- tab, rear corner

2шт.

12

A150689

GASKET

- flywheel cover top

1шт.

13

A57966

GASKET

- flywheel cover to torque tube

1шт.
